SSM II-III-IV-V 1982-1995 - All Serials - Driveshaft Housing And Gear Assy (V SSM)

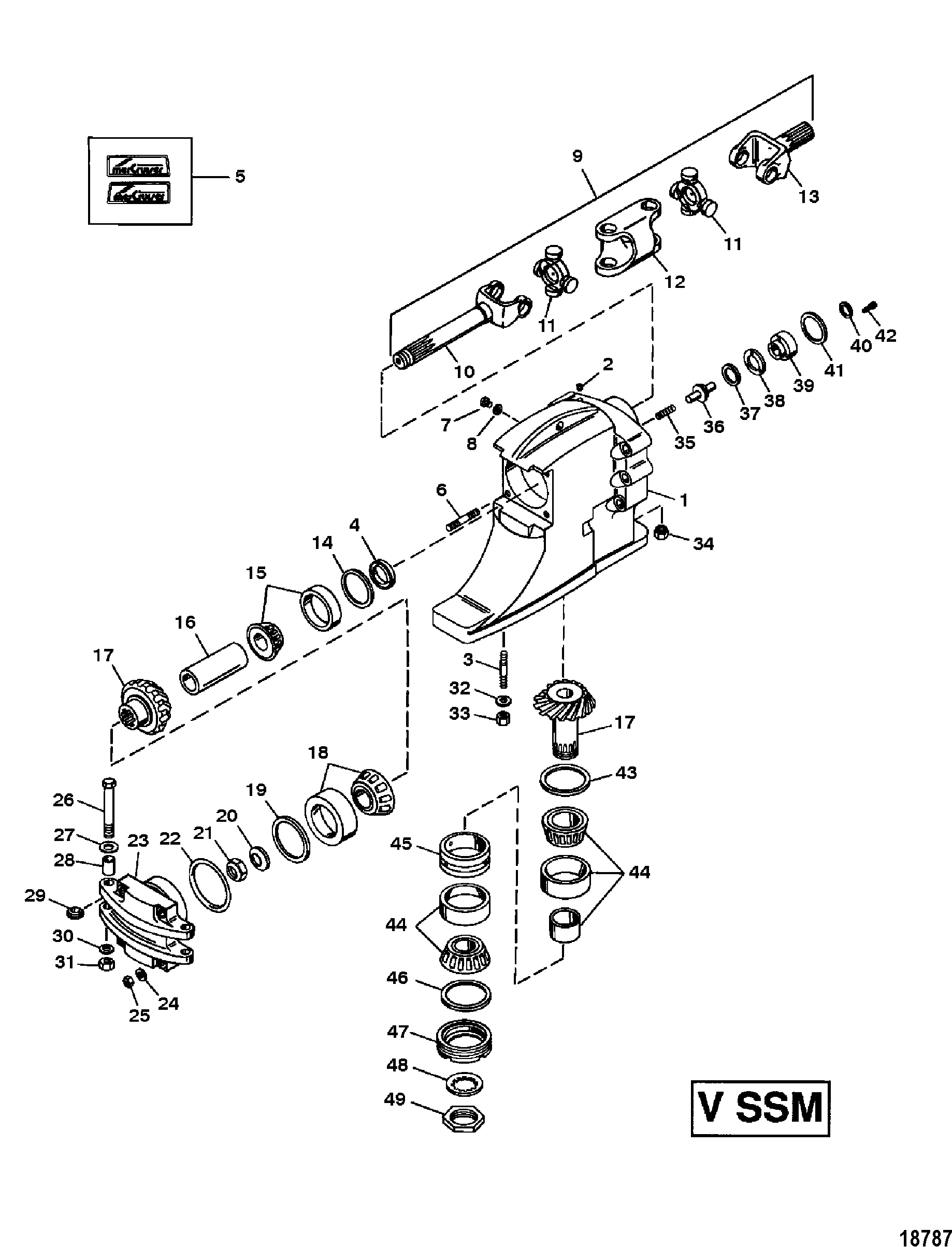

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3509-9806A2         HOUSING ASSEMBLY, Driveshaft 1   This Part is No Longer Available
2 22-56800         PLUG, Pipe (.0625-27) 1

3 16-57985         STUD (2.810) 6

4 26-38105         SEAL, Oil 1

5 37-14489A90         DECAL SET 1 37-14489A87
6 16-13208         STUD 4

7 22-8M0058389     700-21731 525-22-8M0058389 SCREW, (.735-16), Vent (Magnetic) 1 10-14834
8 12-191833       525-12-191833 WASHER, Fiber 1 12-19183
9 44253A1         UNIVERSAL JOINT ASSEMBLY 1

10 44271         YOKE (Driven End) 1   This Part is No Longer Available
11 48153         CROSS AND BEARING ASSEMBLY 2

12 63575T         SOCKET 1 63575 This Part is No Longer Available
13 44253         YOKE (Driving End) 1   This Part is No Longer Available
14 15-36178A02         SHIM SET AR 15-36178A1
15 31-39908T1         BEARING ASSEBMLY, Tapered Roller 1 31-39908A1
16 8M0050924         SPACER 1 23-47305
17 43-818653A2         GEAR SET (Pinion and Drive) 1 43-18166A2 This Part is No Longer Available (1.00:1 RATIO) (POLYGON DRIVESHAFT)
17 43-818654A2         GEAR SET (Pinion and Drive) 1 43-18878A2 This Part is No Longer Available (1.18:1 RATIO) (POLYGON DRIVESHAFT)
17 43-818655A2         GEAR SET (Pinion and Drive) 1 43-18880A2 (1.25:1 RATIO) (POLYGON DRIVESHAFT)
17 43-818656A2         GEAR SET (Pinion and Drive) 1 43-18882A2 This Part is No Longer Available (1.33:1 RATIO) (POLYGON DRIVESHAFT)
17 43-818657A2         GEAR SET (Pinion and Drive) 1 43-18884A2 This Part is No Longer Available (1.40:1 RATIO) (POLYGON DRIVESHAFT)
17 43-848150A2         GEAR SET (Pinion and Drive) 1 43-18886A2 This Part is No Longer Available (1.50:1 RATIO) (POLYGON DRIVESHAFT)
17 43-818653A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (1.00:1 RATIO) (SPLINED DRIVESHAFT)
17 43-818654A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (1.18:1 RATIO) (SPLINED DRIVESHAFT)
17 43-818655A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (1.25:1 RATIO) (SPLINED DRIVESHAFT)
17 43-847823A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (1.31:1 RATIO) (SPLINED DRIVESHAFT) New forgings from Mercury prints
17 43-818656A2         GEAR SET (Pinion and Drive) 1 43-818656A1 This Part is No Longer Available (1.33:1 RATIO) (SPLINED DRIVESHAFT)
17 43-818657A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (1.40:1 RATIO) (SPLINED DRIVESHAFT)
17 43-847825A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (1.44:1 RATIO) (SPLINED DRIVESHAFT)
17 43-848150T1         GEAR SET (Pinion and Drive) 1 43-848150A1 This Part is No Longer Available (1.50:1 RATIO) (SPLINED DRIVESHAFT)
18 31-34804T3         BEARING ASSEMBLY, Tapered Roller 1 31-34804A3
19 15-34822A1         SHIM SET AR

20 12-53212         WASHER 1

21 11-82671327         NUT (1.00-14) 1 11-90068T
22 25-47291         O-RING 1

23 12702T         COVER (Rear) 1 12702 This Part is No Longer Available
24 12-540121         WASHER, (.530 x .880 x .104) 630 Stainless Steel 4

25 11-35000         NUT, (.500-20) 4 11-816670
26 10-677551         SCREW, (.500-20 x 4.500) 2

27 12-540121         WASHER, (.530 x .880 x .104) 630 Stainless Steel 2

28 23-85322         SPACER 2   This Part is No Longer Available
29 23-840229         SPACER 2 23-85321
30 12-24501         WASHER 2

31 11-35000         NUT, (.500-20) 2 11-816670
32 12-180451         WASHER 6 12-18045
33 11-47302         NUT, (.562-18) Stainless Steel 6

34 11-47302         NUT, (.562-18) Stainless Steel 1

35 24-48442         SPRING 1

36 20-48219         CHECK VALVE 1

37 25-48452         QUAD RING 1

38 27-669251         GASKET 1

39 12701A1         VALVE GUIDE ASSEMBLY 1   This Part is No Longer Available
40 26-66301     700-85015   SEAL, Oil 1

41 25-33145
676-9-76547 700-82260   O-RING, (1.984 x .139) 1

42 10-56786         SCREW, (#8-32 x .750) 2

43 15-19032A1         SHIM SET AR
(.002 THRU .035 THICK)
43 15-19032A2         SHIM SET AR
(.036 THRU .048 THICK)
44 31-19182T2         BEARING ASSEMBLY, Roller 1 31-19182A2
45 23-18998         SPACER 1

46 23-18997         SPACER 1

47 816230         RETAINER 1   This Part is No Longer Available
48 12-817303         WASHER 1 12-19066 no longer made, limited availability
49 11-19039         NUT (Special) 1
