575 SCi - Serial 0M900000 Thru 0M950526 - Crankshaft - Piston And Coupler Components

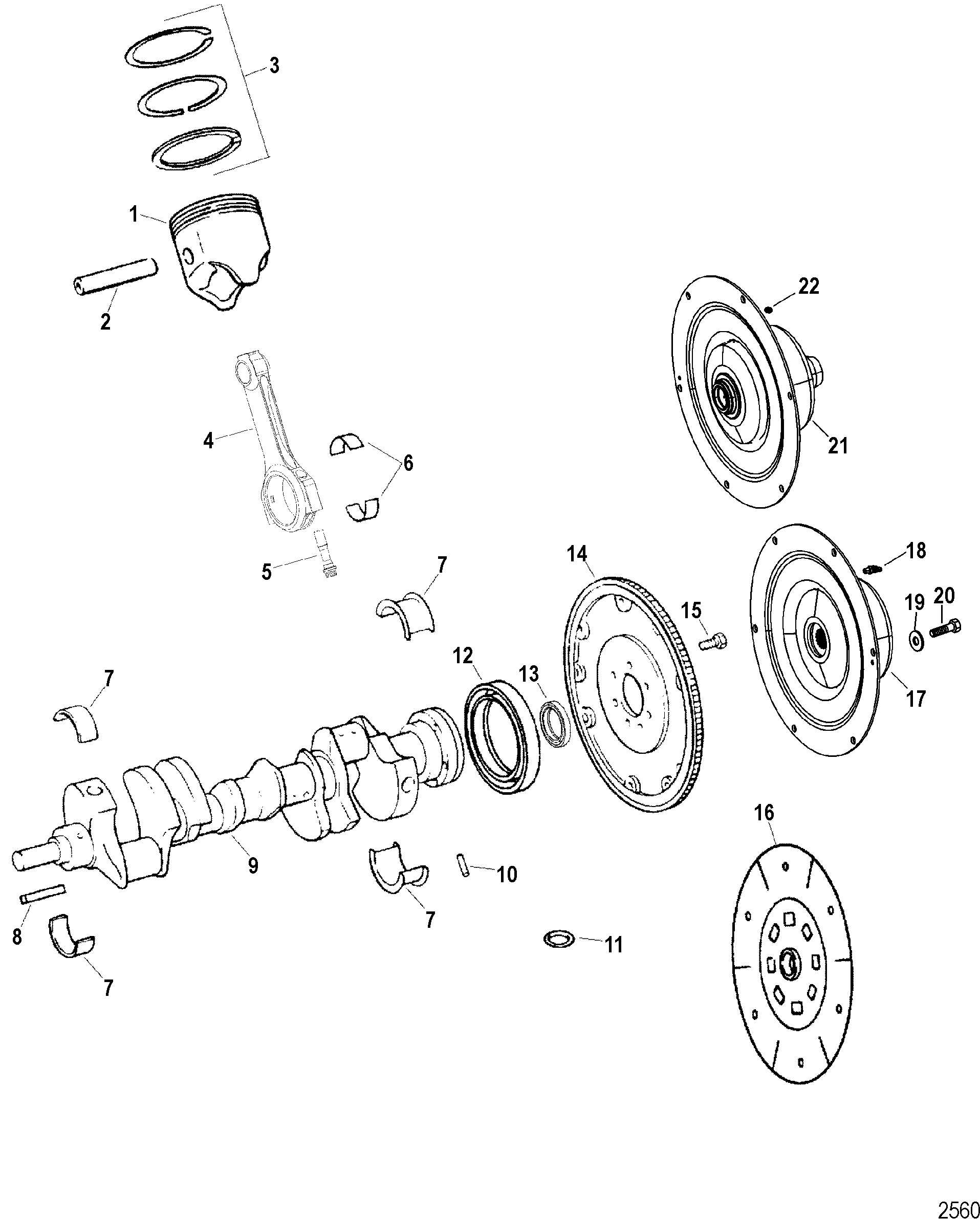

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 798-849022T1         PISTON ASSEMBLY 8
Standard 5
1 798-841233T1         PISTON ASSEMBLY 8
0.034 Oversize
2 41-848819T         PIN, Piston 8
5
3 39-827660T         RING SET, Piston - Standard 8 39-827660 5
3 39-852935         RING SET, Piston - .030 Oversize 8   This Part is No Longer Available
4 614-8M8020323         CONNECTING ROD ASSEMBLY 8 614-845240T2 5
5 10-8M0000838         SCREW, Special 16 10-843391 5
6 23-8M0030217         BEARING SET, Connecting Rod - Standard 8 23-841447 5
6 23-8M0030218         BEARING SET, Connecting Rod - .001 Oversize AR 23-841448
6 23-8M0030216         BEARING SET, Connecting Rod - .001 Undersize AR 23-841449
6 23-8M0030982         BEARING SET, Connecting Rod - .010 Undersize AR 23-841450
7 8M0051198         BEARING SET, Main - Standard 1 23-842400 5
7 8M0053743         BEARING SET, Main - .001 Oversize AR 23-842401
7 23-842402         BEARING SET, Main - .001 Undersize AR

7 23-8M0053549         BEARING SET, Main - .010 Undersize AR 23-842403
8 28-845607         KEY, Crankshaft 1
5
9 429-843083T         CRANKSHAFT 1
SN# 0M900000 THRU 0M950278 5
9 400-842271T01         CRANKSHAFT ASSEMBLY 1
SN# 0M950279 THRU 0M950526 5
10 17-43504         PIN, Dowel 1
NOTE: Used With Crankshaft 400-842271T01 5
10 17-843378         PIN, Dowel (1/4 In. Diameter) (.250) 1 17-35312 NOTE: Used With Crankshaft 429-843083T 5
11 25-69756         O-RING, (.549 x .103), Number 5 Bearing Cap Oil Hole 1
2,5
12 26-811554   676-9-61622     SEAL, Oil 1
2,5
13 23-823108         BUSHING, Crankshaft Pilot, Driveline Models Only 1
5
14 230-843374T1         FLYWHEEL 1
5
15 10-845757         SCREW, (.437-20 x 1.00) 6
5
16 8M0051206         DRIVEPLATE ASSEMBLY, Six Drive Models 1 816618
17 861523A9   676-9-72503   525-861523A9 COUPLER ASSEMBLY, Engine - Short Aluminium Hub 1
Version I - Driveline Models
17 861523A18         COUPLER ASSEMBLY, Engine - Short Steel Hub 1
Version II - Driveline Models
18 22-49099         FITTING 2

19 12-20572         WASHER, (.390 x .750 x .093) 6

20 10-35091         SCREW, (.375-16 x 1.00) 6

21 861523A7         COUPLER ASSEMBLY, Engine - Long Steel Hub 1
Bravo Models
22 22-74036         FITTING, Grease 1

- 27-842182A1         GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
