575 SCi - Serial 0M900000 Thru 0M950526 - Thermostat Housing

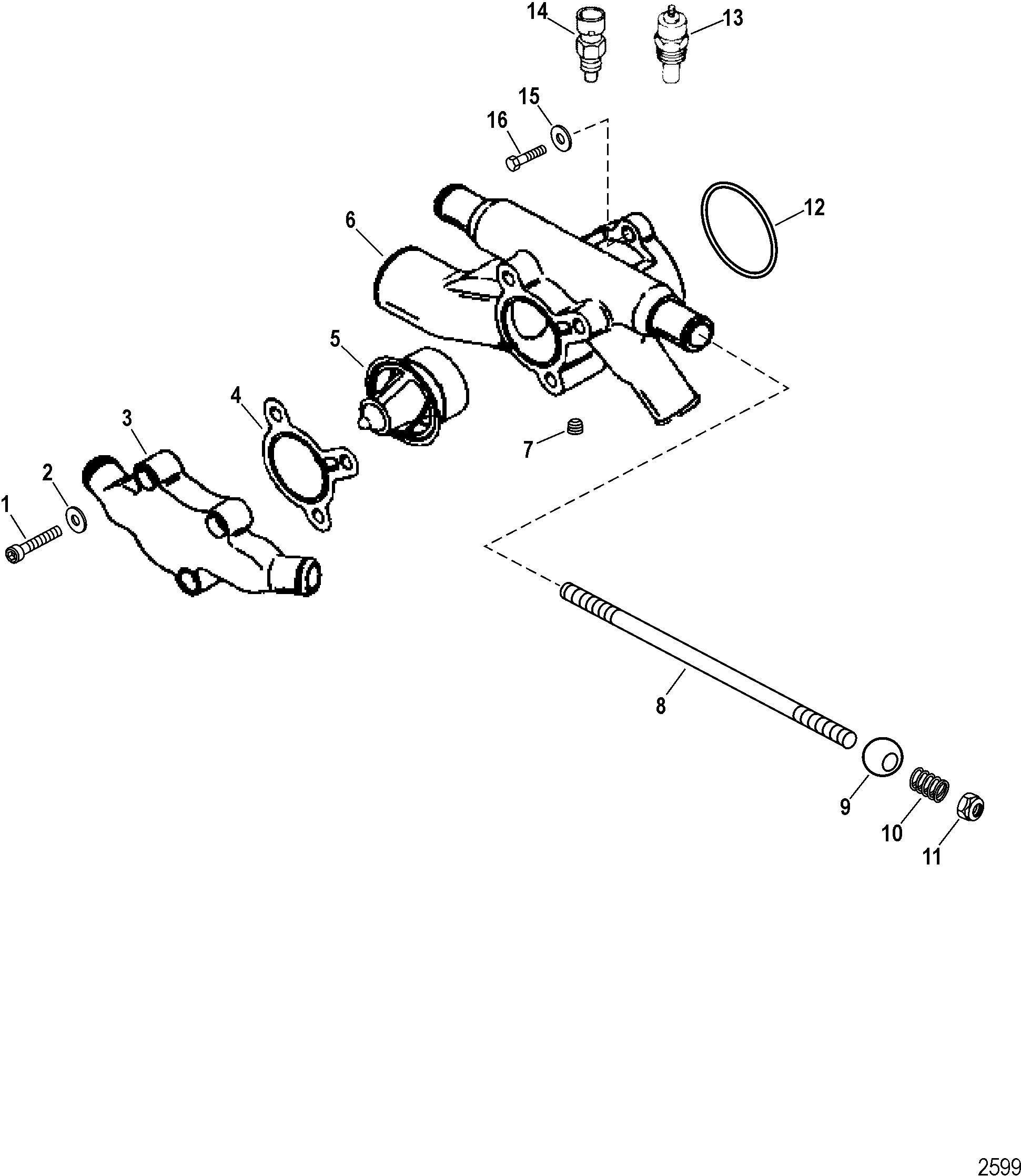

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 10-30206 | 700-22430 | SCREW, (.375-16 x 1.00) Stainless Steel | 3 | |||||
| 2 | 12-37828 | 525-12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 3 | |||||
| 3 | 849875T01 | COVER, Thermostat Housing - Black | 1 | 8498751 | |||||
| 4 | 27-818364 | GASKET, Thermostat | 1 | 2 | |||||
| 5 | 591371 | THERMOSTAT | 1 | ||||||
| 6 | 879330T39 | HOUSING, Thermostat | 1 | 8477042 | |||||
| 7 | 22-36373 | PLUG, (.375-18) Hex - Steel | 1 | ||||||
| 8 | 6-847742 | STUD, (#10-32 x 11.810) | 1 | ||||||
| 9 | 30-98475 | 700-13233 | BALL, Nylon | 2 | |||||
| 10 | 24-75533 | 700-13235 | SPRING | 2 | |||||
| 11 | 11-826709106 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 12 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139), Thermostat Housing To Intake Manifold | 1 | 2 | |||
| 13 | 806490T | 676-9-42400 | SENDER, Coolant Temperature | 1 | |||||
| 14 | 805218T | 676-9-42402 | SENSOR, Coolant Temperature | 1 | |||||
| 15 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | ||||||
| 16 | 10-65210 | 525-10-65210 | SCREW, (.375-16 x 1.00) | 3 | |||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
