575 SCi - Serial 0M900000 Thru 0M950526 - Exhaust Header - Tailpipe Assembly

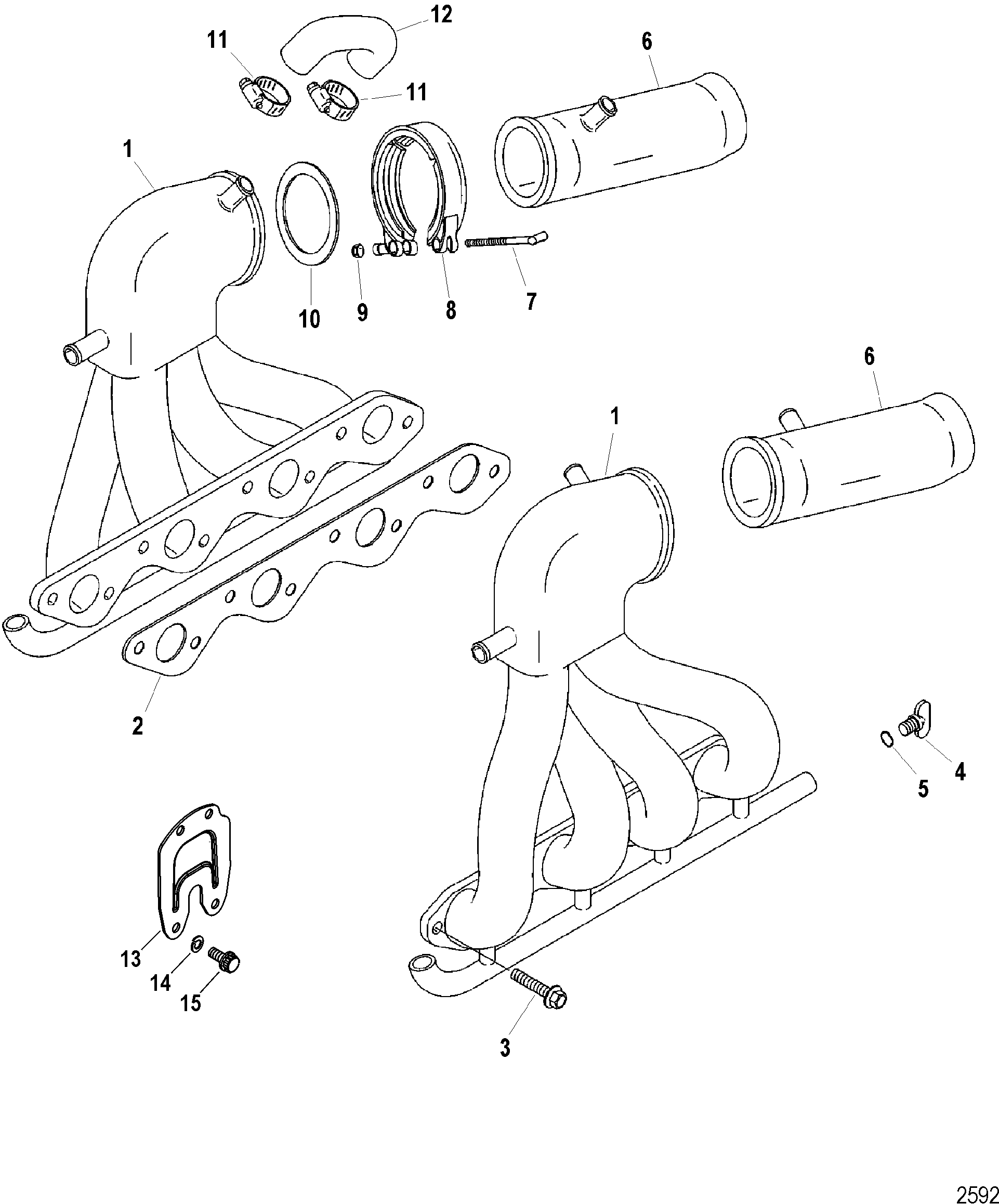

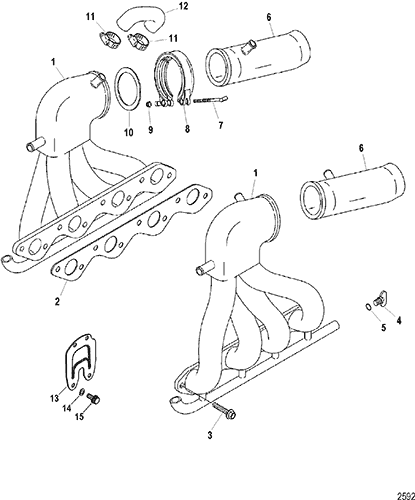

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 845233T1 | HEADER ASSEMBLY, Exhaust - Port | 1 | ||||||
| 1 | 845234T1 | HEADER ASSEMBLY, Exhaust - Starboard | 1 | ||||||
| 2 | 27-841234 | GASKET, Exhaust Header | 2 | 2 | |||||
| 3 | 10-821131 | SCREW, (.375-16 x 1.00) | 16 | ||||||
| 4 | 22-806608A02 | 700-13992 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | ||||
| 5 | 25-32509 | O-RING, (.489 x .070) | 2 | ||||||
| 6 | 8M0053624 | TAILPIPE ASSEMBLY, Port | 1 | 845235A1 | Bravo Models | ||||
| 6 | 845236A1 | TAILPIPE ASSEMBLY, Starboard | 1 | Bravo Models | |||||
| 7 | 10-848886 | T BOLT, (.250-20) | 2 | ||||||
| 8 | 54-848885 | CLAMP, Band Style | 2 | ||||||
| 9 | 11-8267098 | NUT, (.250-20) Stainless Steel | 2 | ||||||
| 10 | 27-848254 | GASKET, Tailpipe | 2 | 2 | |||||
| 11 | 54-180763 | CLAMP, Worm Gear | 4 | ||||||
| 12 | 32-8424181 | HOSE, Molded | 2 | ||||||
| 13 | 861776A2 | PLATE KIT | 1 | ||||||
| 14 | 13-41471 | LOCKWASHER, (.375) | 4 | ||||||
| 15 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | |||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
