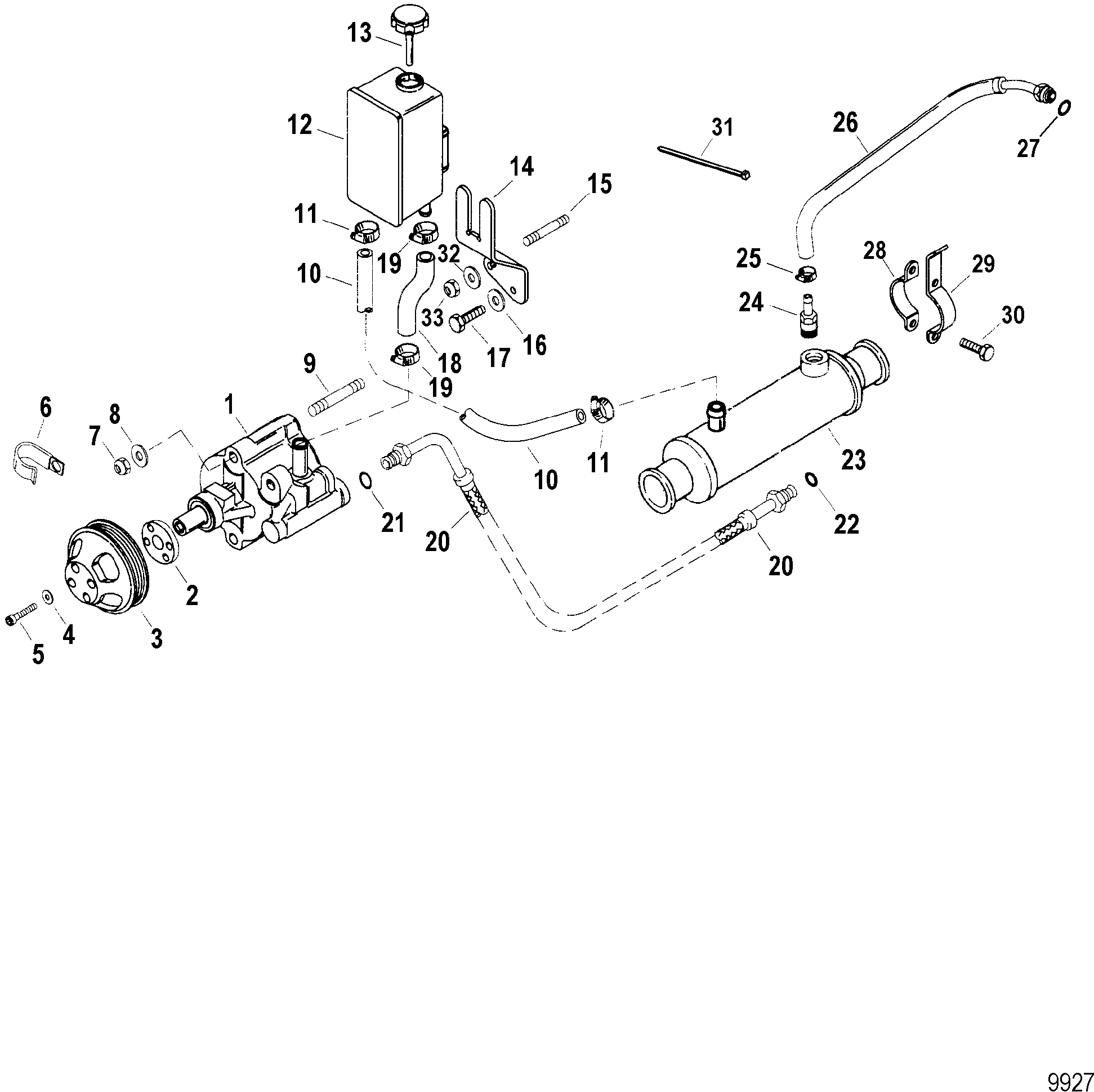

Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
- |
849906A14 |
|
|
|
|
PUMP KIT, Power-Assisted Steering - Complete |
1 |
849906A2 |
Design I Hose Fittings |
- |
849906A14 |
|
|
|
|
PUMP KIT, Power-Assisted Steering - Complete |
1 |
849906A4 |
Design II Hose Fittings |
1 |
849906A28 |
|
|
|
|
PUMP ASSEMBLY, Power-Assisted Steering - Black |
1 |
|
|
2 |
47530 |
|
|
|
|
HUB, Pump Pulley |
1 |
|
|
3 |
849048T |
|
|
|
|
PULLEY, Blue |
1 |
|
|
4 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
4 |
|
|
5 |
10-849377 |
|
|
|
|
SCREW, (.312-24 x .750) Stainless Steel |
4 |
|
|
6 |
54-62494 |
|
|
|
|
CLIP |
1 |
|
|
7 |
11-82671013 |
|
|
|
525-11-82671013 |
NUT, (.375-24) Stainless Steel |
2 |
|
|
8 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
|
9 |
16-849375 |
|
|
|
|
STUD, (.375-24 x 3.750) |
2 |
|
|
10 |
32-8M0062341 |
|
|
|
|
HOSE, (53.00 Inches Bulk), Cut 19.50 Inches |
1 |
32-5251914 |
|
11 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm) |
2 |
|
|
12 |
862752T1 |
|
|
|
|
RESERVOIR ASSEMBLY |
1 |
|
|
13 |
806216 |
|
|
|
|
CAP |
1 |
|
|
14 |
849298 |
|
|
|
|
BRACKET, Reservoir Mount |
1 |
849298T |
|
15 |
16-842441 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.250) |
1 |
|
|
16 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
|
17 |
10-94247 |
|
|
|
525-10-94247 |
SCREW, (.375-16 x .750) Stainless Steel |
1 |
|
|
18 |
32-845620 |
|
|
|
|
HOSE, (10.62 Inches), Reservoir To Pump |
1 |
|
|
19 |
54-180761 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
20 |
32-98494 |
|
|
|
|
HOSE ASSEMBLY, Pump To Booster |
1 |
|
Design I - One Straight Fitting And One 90 Degree Fitting |
20 |
32-84243545 |
|
|
|
|
HOSE ASSEMBLY, Pump To Booster |
1 |
|
Design II - One 20 Degree Fitting And One 90 Degree Fitting |
21 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064) |
1 |
|
|
22 |
25-806232 |
|
|
|
|
O-RING, (.239 x .064) |
1 |
|
|
23 |
849291 |
|
|
|
|
COOLER, Power Steering Oil |
1 |
|
|
24 |
22-70834 |
|
|
|
|
CONNECTOR, (.375-18) Straight - Brass |
1 |
|
|
25 |
54-815504105 |
|
|
|
|
CLAMP, Worm Gear (11-18 mm) |
1 |
|
|
26 |
32-9884339 |
|
|
|
|
HOSE ASSEMBLY, (72.00 Inches Bulk), Cut 48.00 Inches |
1 |
|
Design I - 45 Degree Fitting On One End |
26 |
32-80622142 |
|
|
|
|
HOSE ASSEMBLY, (84.00 Inches Bulk), Cut 46.00 Inches |
1 |
|
Design II - 90 Degree Fitting On One End |
27 |
25-89879 |
|
|
|
|
O-RING, (.301 x .064), For 32-806221-42 Hose Assembly |
1 |
|
|
28 |
563281 |
|
|
|
|
BRACKET, Oil Cooler - Short Style With Weldnut |
1 |
|
|
29 |
63820F3 |
|
|
|
|
BRACKET, Oil Cooler - Long Style |
1 |
638203 |
|
30 |
10-817505 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
2 |
|
|
31 |
54-816311T |
|
|
700-21465 |
|
TIE STRAP, (8.00 Inches) |
3 |
|
|
32 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) Stainless Steel |
1 |
|
|
33 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) Brass/Nickel Plated |
1 |
|
|
