| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

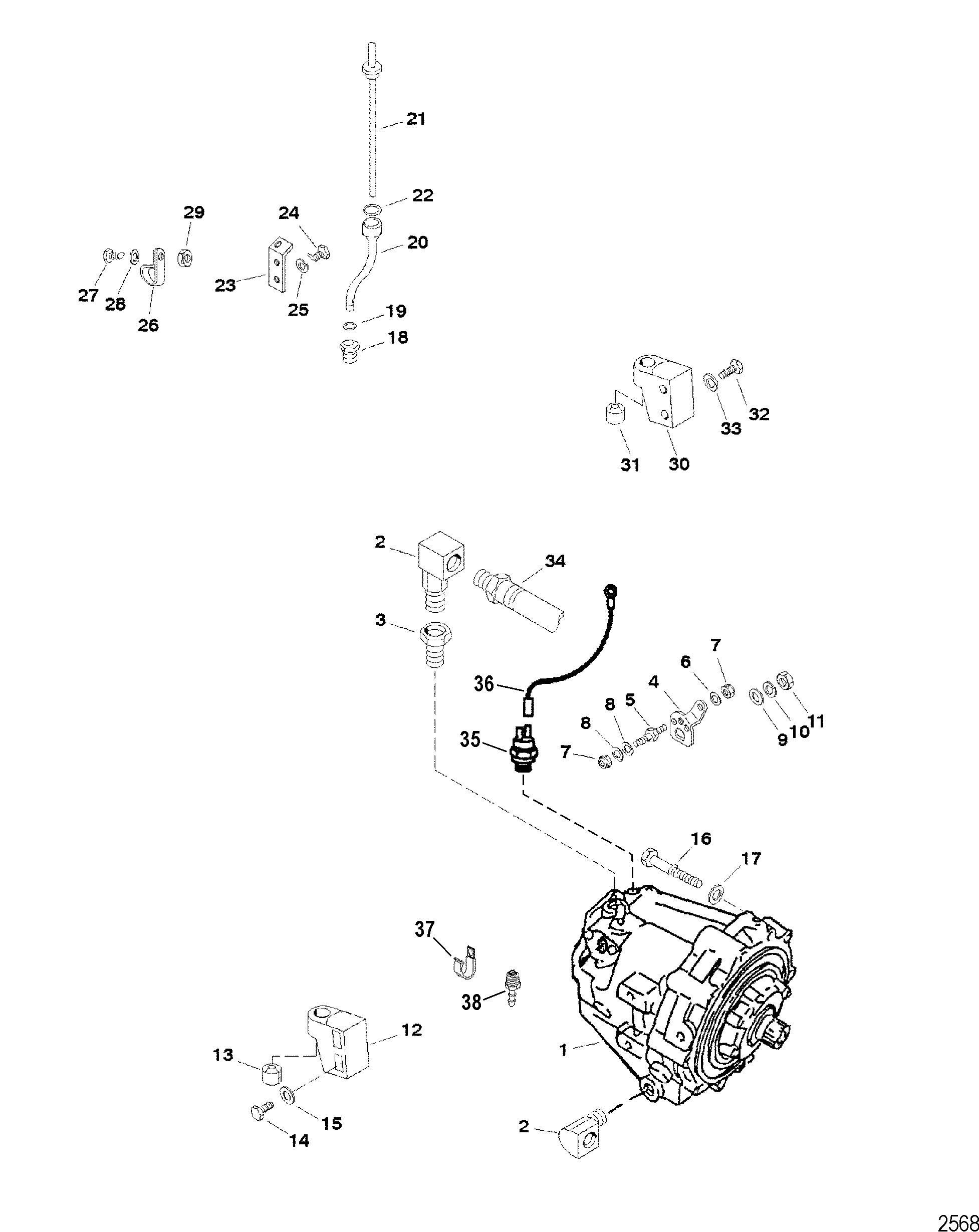

| 1 |
841918A07 |
|
|
|
|
TRANSMISSION ASSEMBLY |
1 |
14750A1 |
|
| 2 |
22-47629 |
|
|
|
|
ELBOW, 90 Degree |
2 |
|
|
| 3 |
22-88517 |
|
|
|
|
FITTING, Reducing |
1 |
|
|
| 4 |
12128 |
|
|
|
|
LEVER, Transmission Shift |
1 |
|
|
| 5 |
16-63335 |
|
|
|
|
STUD, (.250-28 x 2.00) |
1 |
|
This Part is No Longer Available |
| 6 |
12-39143 |
|
|
|
|
WASHER, (.253 x .625 x .0937) |
1 |
|
|
| 7 |
11-8267089 |
|
|
|
|
NUT, (.250-28) |
2 |
|
|
| 8 |
12-29245 |
|
|
700-21490 |
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 9 |
12-20722 |
|
|
|
|
WASHER, (.328 x .625 x .060) |
1 |
|
This Part is No Longer Available |
| 10 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312-24) |
1 |
|
|
| 11 |
11-22053 |
|
|
|
|
NUT, (.312-24) |
1 |
|
|
| 12 |
47334A2 |
|
|
|
|
BRACKET ASSEMBLY, Mounting - Starboard |
1 |
|
This Part is No Longer Available |
| 13 |
35852 |
|
|
|
|
MOUNT, Transmission Bracket |
1 |
|
|
| 14 |
10-47462 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
2 |
|
|
| 15 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
2 |
|
|
| 16 |
10-60179 |
|
|
|
|
SCREW, (.437-14 x 3.500) |
6 |
|
|
| 17 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) Stainless Steel |
6 |
|
|
| 18 |
48461 |
|
|
|
|
ADAPTOR, Oil Level Gauge Tube |
1 |
|
This Part is No Longer Available |
| 19 |
25-48462 |
|
|
|
|
O-RING, (.614 x .070) |
1 |
|
|
| 20 |
48463 |
|
|
|
|
TUBE, Dipstick, Oil Level |
1 |
|
This Part is No Longer Available |
| 21 |
48464 |
|
|
|
|
DIPSTICK, Oil Level |
1 |
|
This Part is No Longer Available |
| 22 |
25-35276 |
|
676-9-76530 |
|
|
O-RING, (.734 x .139) |
1 |
|
|
| 23 |
48466 |
|
|
|
|
BRACKET, Mounting |
1 |
|
This Part is No Longer Available |
| 24 |
10-32417 |
|
|
|
|
SCREW, (.250-28 x .625) |
2 |
|
|
| 25 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
| 26 |
54-67015 |
|
|
|
|
CLAMP |
1 |
|
|
| 27 |
10-60300 |
|
|
|
|
SCREW, (.250-28 x .750) |
1 |
|
|
| 28 |
12-29245 |
|
|
700-21490 |
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
|
| 29 |
11-8267089 |
|
|
|
|
NUT, (.250-28) |
1 |
|
|
| 30 |
47340A1 |
|
|
|
|
BRACKET ASSEMBLY, Mounting - Port |
1 |
|
|
| 31 |
35852 |
|
|
|
|
MOUNT, Transmission Bracket |
1 |
|
|
| 32 |
10-47462 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
2 |
|
|
| 33 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
2 |
|
|
| 34 |
32-475166 |
|
|
|
|
HOSE ASSEMBLY, (30.00 Inches) |
2 |
|
|
| 35 |
87-88031 |
|
|
|
|
SWITCH ASSEMBLY |
1 |
|
|
| 36 |
84-88032A5 |
|
|
|
|
CABLE ASSEMBLY, (3.00 Inches) Tan/Blue |
1 |
|
|
| 36 |
84-86322A29 |
|
|
|
|
CABLE ASSEMBLY, (3.00 Inches) Black |
1 |
|
|
| 37 |
54-47483 |
|
|
|
|
J CLIP |
1 |
|
|
| 38 |
22-63186 |
|
|
|
|
FITTING, (.125-27), Transmission To Bottle |
1 |
|
|
