575 SCi - Serial 0M900000 Thru 0M950526 - Intake Manifold And Supercharger

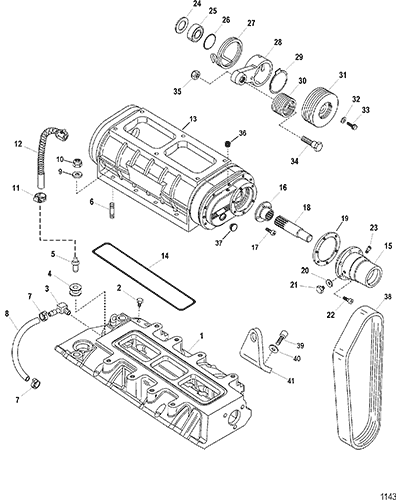

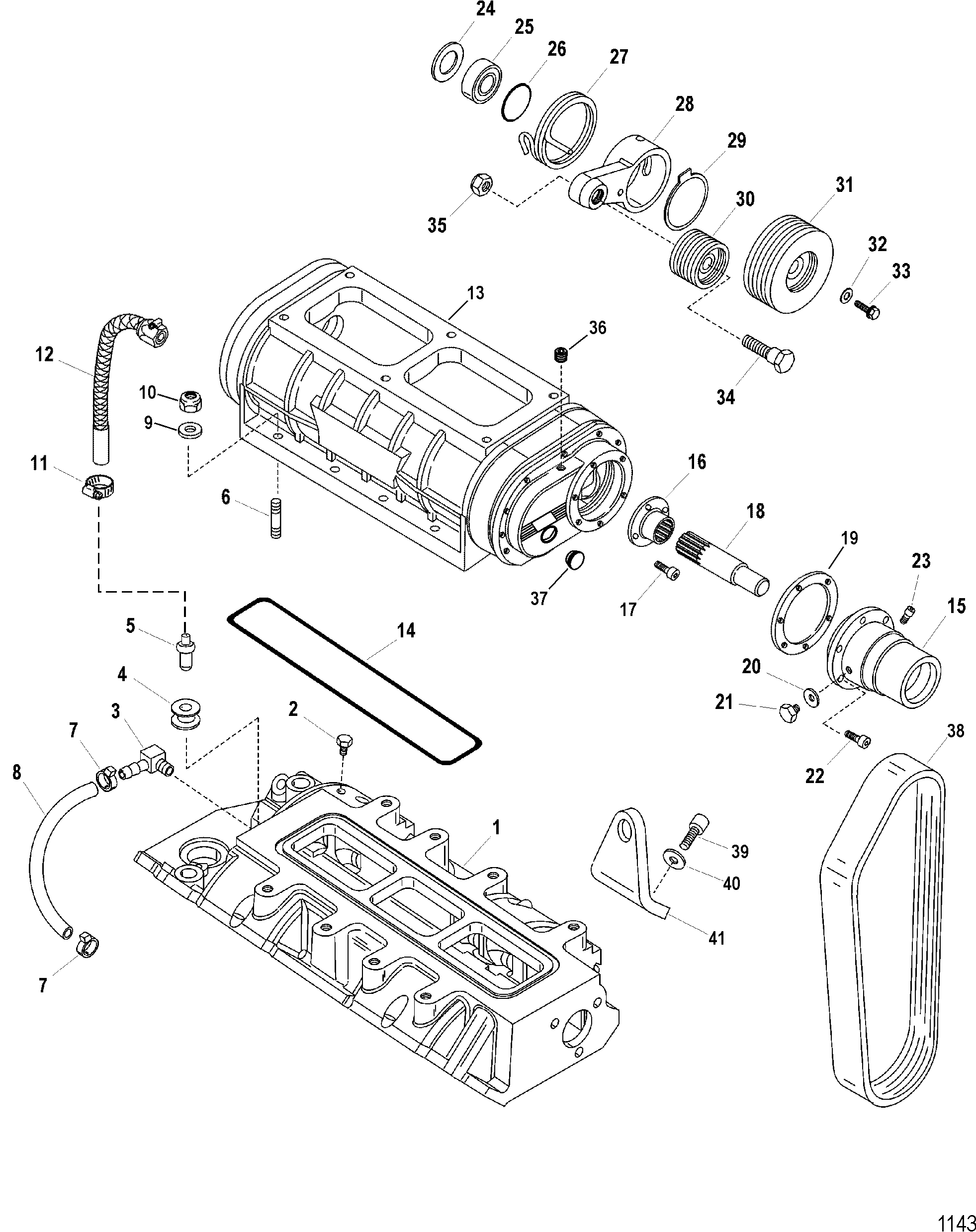

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849901A1         MANIFOLD ASSEMBLY, Intake 1   This Part is No Longer Available
2 22-328022         PLUG, Pipe (.125-27) Brass 1

3 22-196881         FITTING, (90 Degree) 1

4 25-811553         GROMMET 1

5 848578         VALVE ASSEMBLY, Crankcase Vent 1

6 16-849928         STUD, (.312-18/.312-24 x 2.00) 8

7 56762         TIE STRAP, (4.00 Inches) 2

8 32-8M0062600         HOSE, (54.00 Inches Bulk), Cut 10.50 Inches - MAP Sensor 1 32-1940971
9 12-70132         WASHER, (.323 x .563 x .063) Stainless Steel 8

10 11-82670911       NUT, (.312-24) Stainless Steel 8

11 54-815504105         CLAMP, Worm Gear (11-18 mm) 1

12 32-823229A3         HOSE ASSEMBLY, PCV (13.50 Inches) 1

13 849893A22         SUPERCHARGER ASSEMBLY, Blue 1   This Part is No Longer Available
14 25-844473         O-RING, (10.975 x .210) 1
2
15 841272A1         NOSE ASSEMBLY 1

16 841278         COUPLER 1   This Part is No Longer Available
17 10-92702         SCREW, (.250-28 x .875) 4

18 841273         SHAFT 1   This Part is No Longer Available
19 27-844134         GASKET 1

20 12-68300         WASHER, (..88 x .39 x .06) 1
no longer made, limited availability
21 10-841265         SCREW, (.250-28 x .875) 1   This Part is No Longer Available
22 10-823138         SCREW, (.250-20 x 1.00) Stainless Steel 6

23 10-841446         SCREW, (.250-20 x .500) 1   This Part is No Longer Available
24 26-841266         SEAL 1   This Part is No Longer Available
25 30-841269         BEARING 1   This Part is No Longer Available
26 53-841275         RING, Snap 1

27 24-841270         SPRING 1

28 841271         IDLER ARM 1

29 53-841268         RING, Snap 1

30 848091T         PULLEY, Idler - With Bearing 1   This Part is No Longer Available
31 845311         PULLEY, Snout 1   This Part is No Longer Available
32 12-841277         WASHER 1

33 10-841276         SCREW, (.375-24 x .750) 1

34 10-841267         SCREW, (.500-13 x 2.500) 1

35 11-844766         NUT, (.500-13) 1

36 22-32561         PLUG, Pipe - Allen Head (.250-18) 1

37 843113         SIGHT PLUG 1

38 57-817113         BELT, Serpentine 1

39 10-822168         SCREW, (.375-16 x 1.750) Stainless Steel 2

39 10-817124         SCREW, (.375-16 x 1.500) 10

39 10-843751         SCREW, (.375-16 x 1.500) With Holes 2

39 10-842787         SCREW, (.375-16 x 2.00) Stainless Steel 2

40 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 16

41 54-8499981         LIFTING EYE, Black 2

- 27-842182A1         GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
