575 SCi - Serial 0M900000 Thru 0M950526 - Water Hoses (Sea Water)

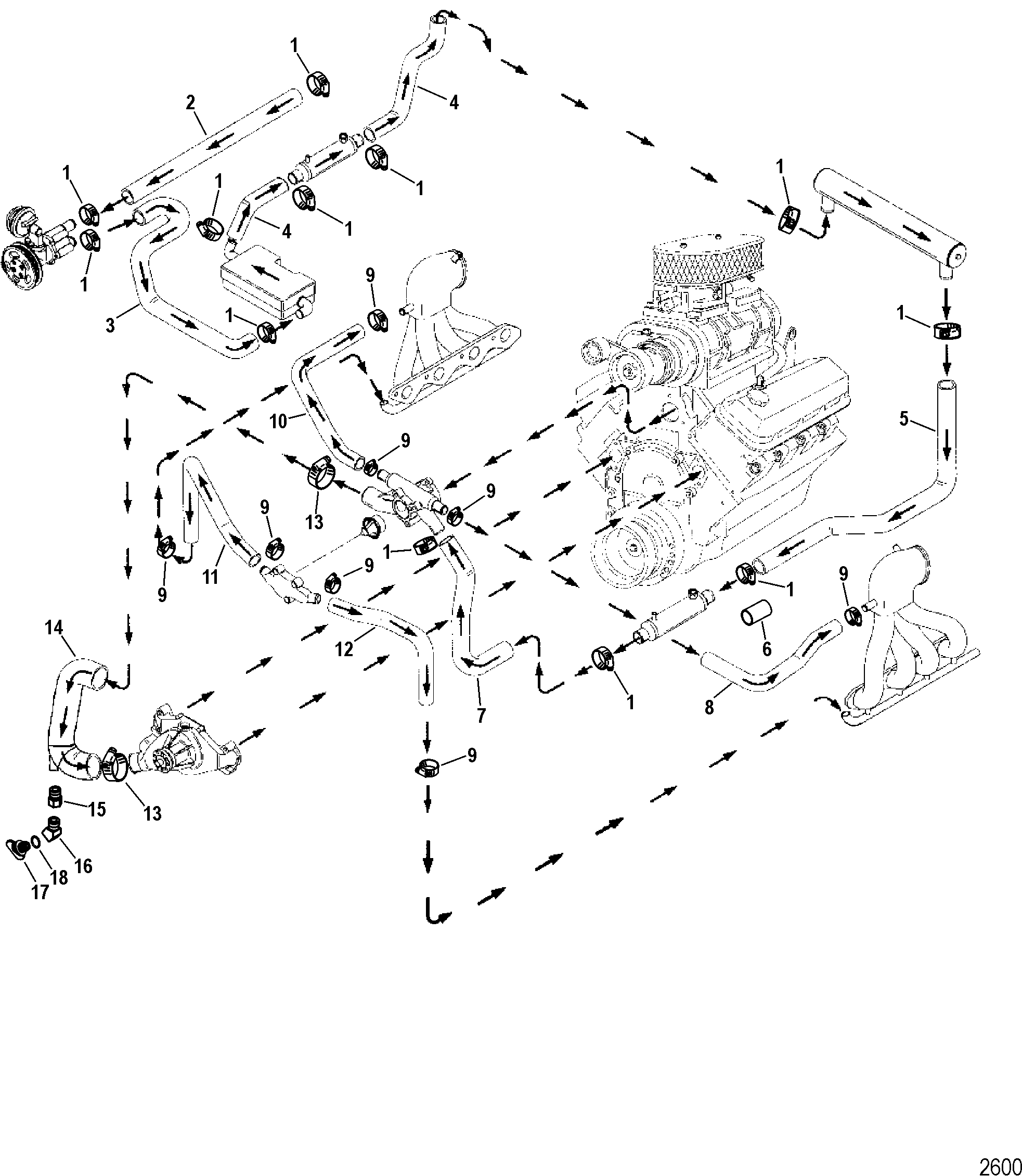

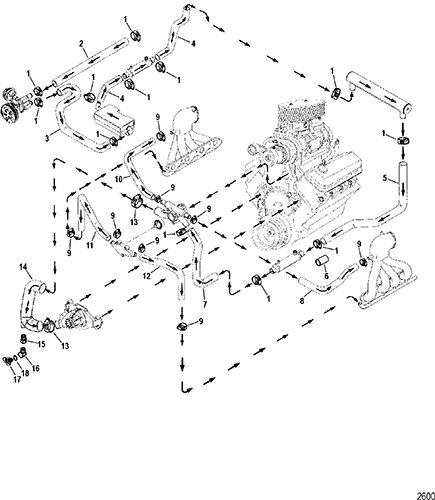

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 54-180766 | CLAMP, Worm Gear | 10/12 | ||||||
| 2 | 32-865672079 | HOSE, (96.00 Inches Bulk), Cut 48.00 Inches - Drive To Sea Pump | 1 | 32-1743579 | Six Drive Models | ||||
| 2 | 32-1743565 | HOSE, (38.00 Inches Bulk), Cut as Required - Drive To Sea Pump | 1 | Bravo Models | |||||
| 2 | 32-13556A1 | HOSE KIT, (10.00 Feet), Cut As Required - Drive To Sea Pump | 1 | Driveline Models | |||||
| 3 | 32-849935 | HOSE, Molded, Sea Water Pump To Fuel Cooler | 1 | ||||||
| 4 | 32-844881 | HOSE, Molded, Fuel Cooler To Oil Cooler | 1 | NOTE: Cut As Required For Transmission Models Use Complete On All Other Models | |||||
| 5 | 32-848956 | HOSE, Molded, Oil Cooler To Tube | 1 | ||||||
| 6 | 22-13177 | TUBE, Hose Attachment | 1 | Non Power Steering Models | |||||
| 7 | 32-844475 | HOSE, Molded, - NOTE: Tube Or Oil Cooler To Thernostat Housing | 1 | ||||||
| 8 | 32-849940 | HOSE, Molded, Port Thermostat Tee To Exhaust Elbow | 1 | ||||||
| 9 | 54-180764 | CLAMP, Worm Gear | 8 | ||||||
| 10 | 32-849941 | HOSE, Molded, Starboard Thermostat Tee To Exhaust Elbow | 1 | ||||||
| 11 | 32-849943 | HOSE, Molded, Starboard Thermostat Cover To Exhaust Manifold | 1 | ||||||
| 12 | 32-849942 | HOSE, Molded, Port Thermostat Cover To Exhaust Manifold | 1 | ||||||
| 13 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 14 | 32-842412A02 | HOSE ASSEMBLY, Thermostat To Circulating Pump | 1 | 32-842412A1 | |||||
| 15 | 22-860088 | BUSHING | 1 | ||||||
| 16 | 22-37682 | FITTING, Elbow (45 Degree) | 1 | ||||||
| 17 | 22-806608A02 | 700-13992 | PLUG KIT, (.500-13) Royal Blue | 1 | 22-806608A1 | ||||
| 18 | 25-32509 | O-RING, (.489 x .070) | 1 |
