Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

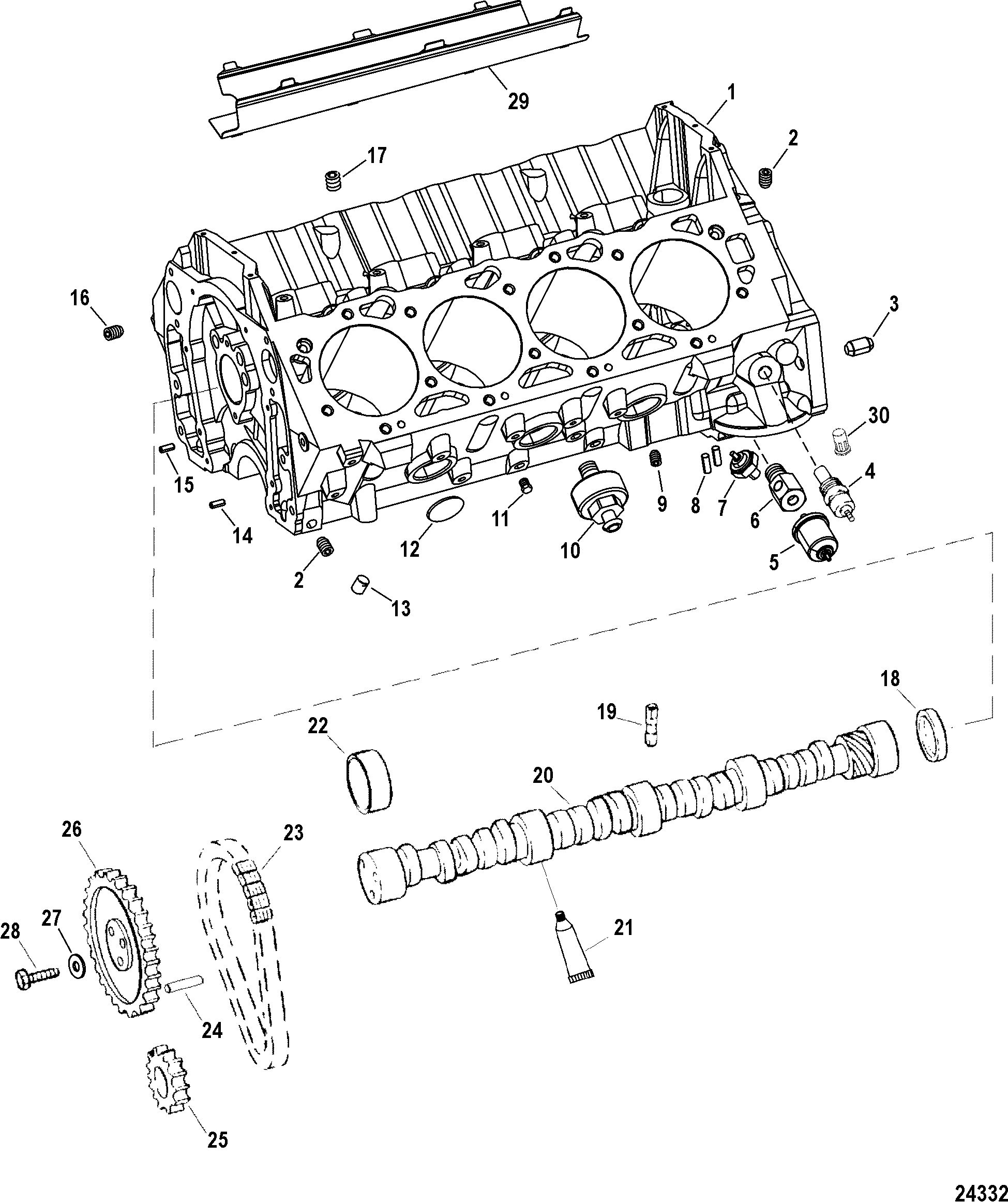

1 |
844575A7 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
This Part is No Longer Available - NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number | 23-823108 |
2 |
22-32561 |
|
|
|
|
PLUG, Pipe - Allen Head (.250-18), Rear Cam Plugs |
3 |
|
5 |
3 |
17-843379 |
|
|
|
|
PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing |
2 |
|
5 |
4 |
8493631 |
|
|
|
|
SENDER ASSEMBLY, Oil Temperature |
1 |
|
|
5 |
8M0068784 |
|
|
|
|
SENDER ASSEMBLY, Audio - Oil Temperature |
1 |
87-815425T |
|
6 |
22-843300 |
|
|
|
|
FITTING, Street Tee |
1 |
|
|
7 |
87-805605A1 |
|
|
|
|
SWITCH ASSEMBLY, Oil Pressure |
1 |
|
|
8 |
17-843378 |
|
|
|
|
PIN, Dowel (1/4 In. Diameter) (.250) Bottom Of Block |
2 |
17-35312 |
|
9 |
22-36373 |
|
|
|
|
PLUG, (.375-18) Hex - Steel, Bottom Of Block - Rear Oil Plugs |
2 |
|
5 |
9 |
22-36373 |
|
|
|
|
PLUG, (.375-18) Hex - Steel, Bottom Of Block Oil Plug |
1 |
|
5 |
10 |
805544T |
|
|
|
|
SENSOR ASSEMBLY, Knock |
1 |
|
|
11 |
22-36382 |
|
|
700-21887 |
|
FITTING, (.250-18 x .62) Brass |
4 |
|
5 |
12 |
22-69300 |
|
|
|
|
EXPANSION PLUG, (1.750 Diameter) |
8 |
|
5 |
13 |
17-845758 |
|
|
|
|
PIN, Dowel |
4 |
|
5 |
14 |
17-843378 |
|
|
|
|
PIN, Dowel (1/4 In. Diameter) (.250) Timing Cover |
1 |
17-35312 |
5 |
15 |
17-843143 |
|
|
|
|
PIN, Spring, Port Side - Timing Cover |
1 |
|
5 |
16 |
845606 |
|
|
|
|
PLUG, (.250-18 x .410) Allen Head With Hole |
2 |
|
5 |
17 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass, Oil Galley |
3 |
|
5 |
18 |
19-94140 |
|
|
|
|
EXPANSION PLUG |
1 |
|
5 |
19 |
93722T |
|
|
|
|
LIFTER |
16 |
|
5 |
20 |
491-818870 |
|
|
|
|
CAMSHAFT |
1 |
|
This Part is No Longer Available 5 |
21 |
92-15875 |
|
|
|
|
LUBE, Camshaft (8 Ounces) |
AR |
|
|
22 |
23-85684 |
|
|
|
|
BEARING SET |
1 |
|
5 |
23 |
845796T |
|
|
|
|
CHAIN, Timing |
1 |
|
5 |
24 |
17-843378 |
|
|
|
|
PIN, Dowel (1/4 In. Diameter) (.250) |
1 |
17-35312 |
5 |
25 |
43-845794T |
|
|
|
|
SPROCKET, Crankshaft |
1 |
43-811579 |
5 |
26 |
43-811578 |
|
|
|
|
SPROCKET, Camshaft |
1 |
|
5 |
27 |
12-848136 |
|
|
|
|
WASHER, (.328 x .680 x .190) |
3 |
|
5 |
28 |
10-845942 |
|
|
|
|
SCREW, (.312-18 x .750) |
3 |
10-35339 |
5 |
29 |
845756T |
|
|
|
|
SHIELD, Oil Intake |
1 |
816073 |
5 |
30 |
|
|
|
|
VALVE, Relief |
1 |
|
5 |
- |
27-842182A1 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul For Complete Parts Listing |
