| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

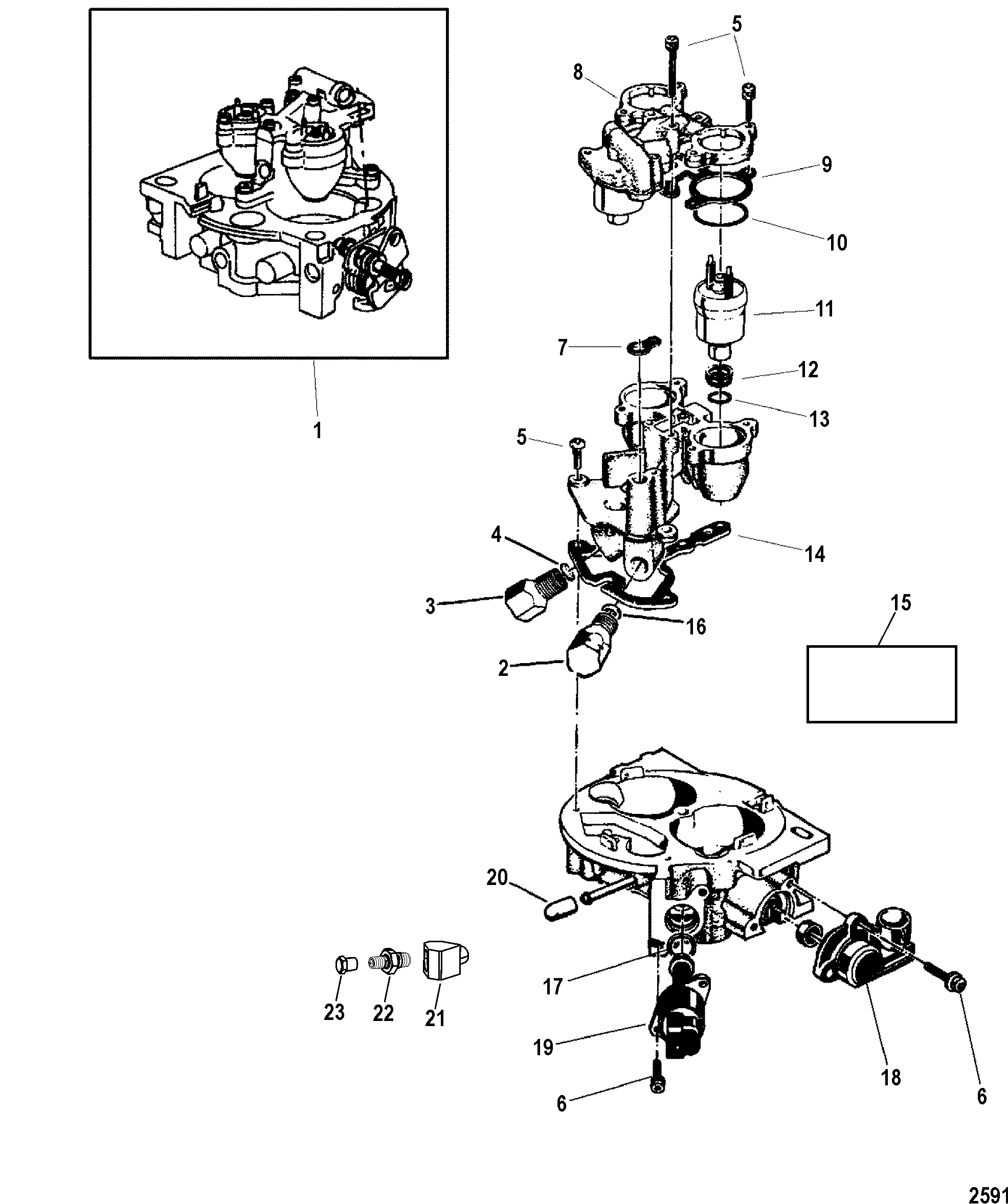

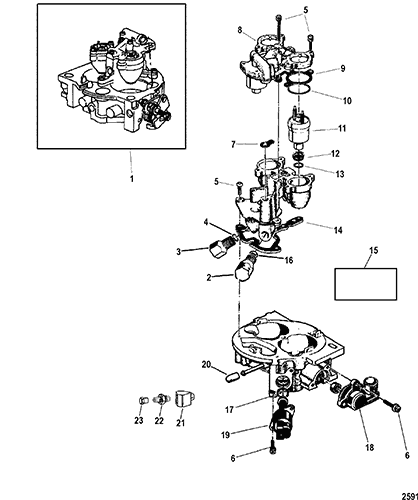

| 1 |
807941T13 |
|
|
|
|
THROTTLE BODY ASSEMBLY, Front - Blue |
1 |
|
This Part is No Longer Available |
| 1 |
807941T11 |
|
|
|
|
THROTTLE BODY ASSEMBLY, Rear - Blue |
1 |
|
This Part is No Longer Available |
| 2 |
22-843204 |
|
|
|
|
FITTING |
1 |
|
|
| 3 |
22-806653A1 |
|
|
|
|
FITTING ASSEMBLY, Inlet |
1 |
|
|
| 4 |
26-806655 |
|
|
|
|
SEAL |
1 |
|
NOTE: Also Included In Gasket Kit 27-852957 |
| 5 |
10-852958 |
|
|
|
|
SCREW KIT |
1 |
|
|
| 6 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
6 |
|
|
| 7 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Gasket |
1 |
|
This Part is not sold separately - NOTE: Included In Kits 852955 And 853998A1 And 27-852957 |
| 8 |
852955 |
|
|
|
|
REGULATOR KIT, Fuel Pressure |
1 |
|
This Part is No Longer Available No longer available |
| 9 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Gasket |
1 |
|
This Part is not sold separately - NOTE: Included In Kits 852955 And 853998A1 And 27-852957 |
| 10 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Seal |
1 |
|
This Part is not sold separately - NOTE: Included In Kits 853998A1 And 27-852957 |
| 11 |
853998A1 |
|
|
|
|
INJECTOR KIT, Fuel (2 Per Kit) |
1 |
|
This Part is No Longer Available |
| 12 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Gasket |
1 |
|
This Part is not sold separately - NOTE: Included In Kit 27-852957 |
| 13 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Seal |
1 |
|
This Part is not sold separately - NOTE: Included In Kits 853998A1 And 27-852957 |
| 14 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Gasket |
1 |
|
This Part is not sold separately - NOTE: Included In Kit 27-852957 |
| 15 |
27-852957 |
|
|
|
|
GASKET KIT, Overhaul |
1 |
|
This Part is No Longer Available |
| 16 |
26-806706 |
|
|
|
|
SEAL |
1 |
|
|
| 17 |
25-808547 |
|
|
|
|
O-RING |
2 |
|
|
| 18 |
805226A1 |
|
676-9-33701 |
|
|
SENSOR ASSEMBLY, TPS, Throttle Postion |
1 |
|
|
| 19 |
805224A03 |
|
|
|
|
MOTOR KIT, (IAC), With Two Screws |
2 |
|
|
| 20 |
806899 |
|
|
|
|
PLUG |
3 |
|
NOTE: Qty 2 - Front / Qty 1 - Rear |
| 21 |
22-29085 |
|
|
|
|
FITTING, Elbow (45 Degree) , Front Only |
1 |
|
|
| 22 |
22-840971A1 |
|
|
|
|
VALVE ASSEMBLY, Shrader, Front Only |
1 |
|
|
| 23 |
22-805515 |
|
|
|
|
CAP, Shrader Valve - Brass |
1 |
|
|
