| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

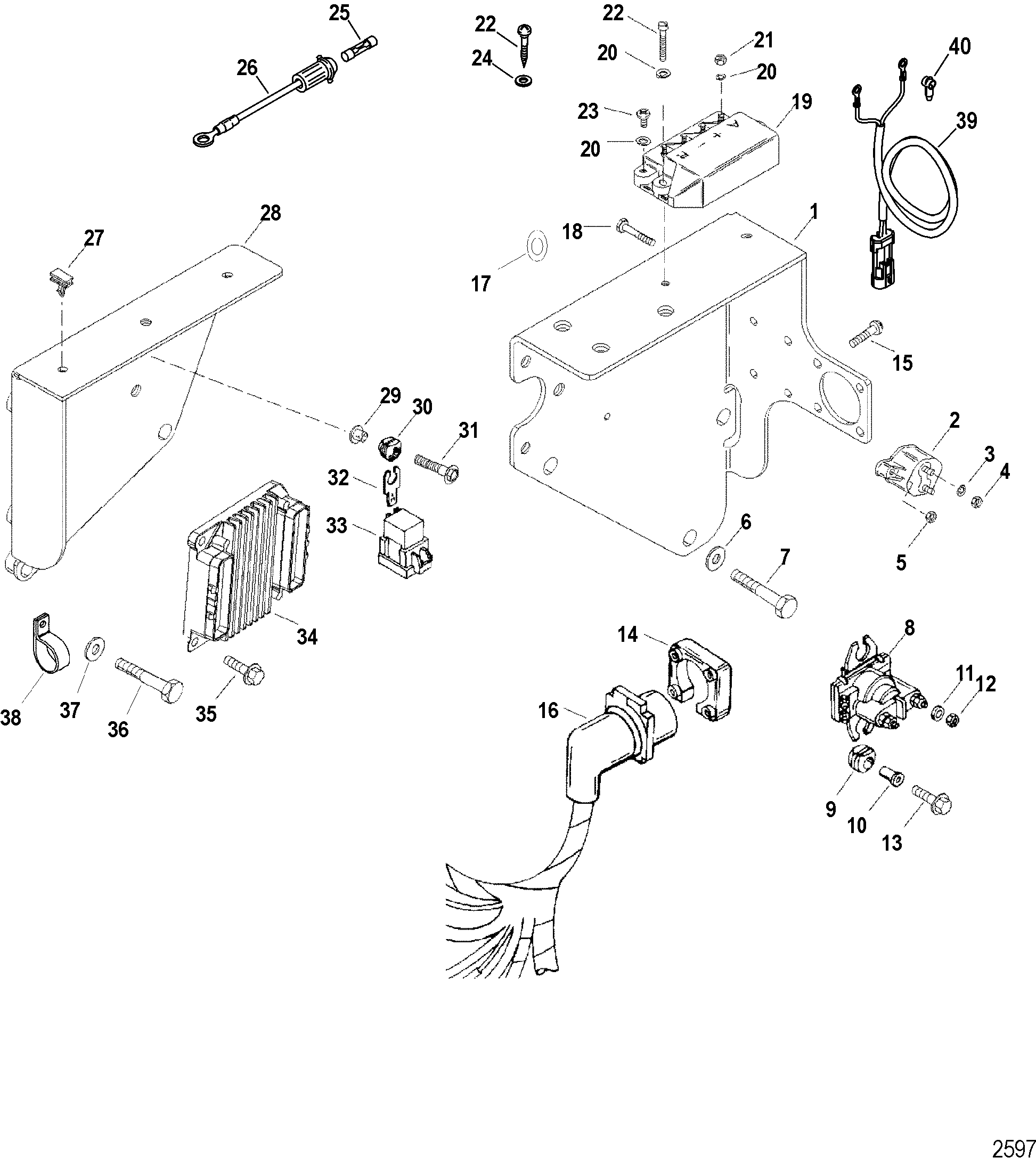

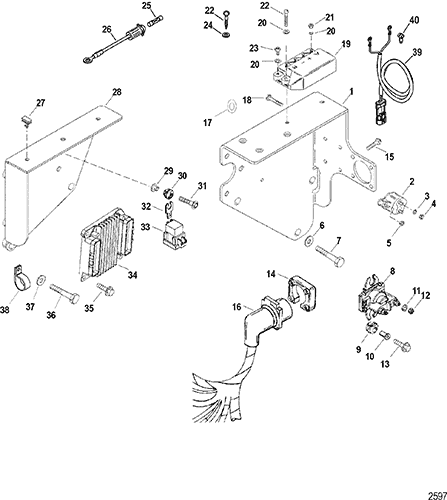

| 1 |
849915T1 |
|
|
|
|
BRACKET, Electrical Components |
1 |
|
|
| 2 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 3 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 4 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 5 |
11-61356 |
|
|
|
|
NUT, (#10-32) Reduced Hex |
2 |
|
|
| 6 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) Stainless Steel |
3 |
|
|
| 7 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250) Stainless Steel |
3 |
|
|
| 8 |
89-818999A2 |
|
|
|
|
SOLENOID ASSEMBLY, Starter |
1 |
|
|
| 9 |
25-818967 |
|
|
|
|
GROMMET |
2 |
|
|
| 10 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 11 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
| 12 |
11-94330 |
|
|
|
|
NUT, (.250-20) Brass |
2 |
|
|
| 13 |
10-828478 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
2 |
|
|
| 14 |
26079A2 |
|
|
|
|
PLATE KIT, Wire Harness Mount |
1 |
|
|
| 15 |
10-15001 |
|
|
|
|
SCREW, (#8-16 x .875) |
4 |
|
|
| 16 |
84-8M0050123 |
|
|
|
|
HARNESS ASSEMBLY, Engine |
1 |
84-842420A1 |
|
| 17 |
37-72554 |
|
|
|
|
DECAL, Circuit Breaker |
1 |
|
|
| 18 |
10-45862 |
|
|
|
|
SCREW, (#10-32 x .875) |
2 |
|
|
| 19 |
42600A09 |
|
|
|
|
CONTROLLER ASSEMBLY |
1 |
42600A3 |
|
| 20 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
7 |
|
|
| 21 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
4 |
|
|
| 22 |
10-41771 |
|
|
|
|
SCREW, (#10-24 x .875) |
2 |
|
Bracket Mounted |
| 22 |
10-35401 |
|
|
|
|
SCREW, (#10 x 1.00) |
OPT |
|
Remote Mounted |
| 23 |
10-62568 |
|
|
|
|
SCREW, (#10-16 x .375) |
1 |
|
|
| 24 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
2 |
|
|
| 25 |
88-79091 |
|
|
|
|
FUSE, 20 Ampere |
1 |
|
|
| 26 |
84-95084A9 |
|
|
|
|
CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip, Fuse |
1 |
|
|
| 26 |
84-95084A10 |
|
|
|
|
CABLE ASSEMBLY, (5.00 Inches) Red, Fuse |
1 |
|
|
| 27 |
54-804352 |
|
|
|
|
CLIP, Fuse Case Hold Down |
2 |
|
|
| 28 |
849910T1 |
|
|
|
|
BRACKET |
1 |
|
|
| 29 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 30 |
25-818967 |
|
|
|
|
GROMMET |
2 |
|
|
| 10-828478d>
| 10-828478 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
2 |
|
|
| 32 |
828102 |
|
|
|
|
BRACKET, Relay Mount |
2 |
|
|
| 33 |
86-865202T |
|
|
|
|
RELAY, Ignition And Fuel Pump |
2 |
|
|
| 34 |
840138T04 |
|
|
|
|
ECM, Engine Control Module |
1 |
|
|
| 35 |
10-90192 |
|
|
|
|
SCREW, (.250-20 x .750) Stainless Steel |
3 |
|
|
| 36 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250) Stainless Steel |
2 |
|
|
| 37 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 38 |
54-848183 |
|
|
|
|
J CLIP, Wire Harness Support |
1 |
|
|
| 39 |
84-865181A01 |
|
|
|
|
HARNESS ASSEMBLY, Mercathode |
1 |
|
No longer made, limited availability |
| 40 |
85-65208 |
|
|
|
|
BOOT, Insulator - Black |
2 |
|
|
