1100 QC4V - Serial 0M965965 and Up - Cylinder Head Assembly

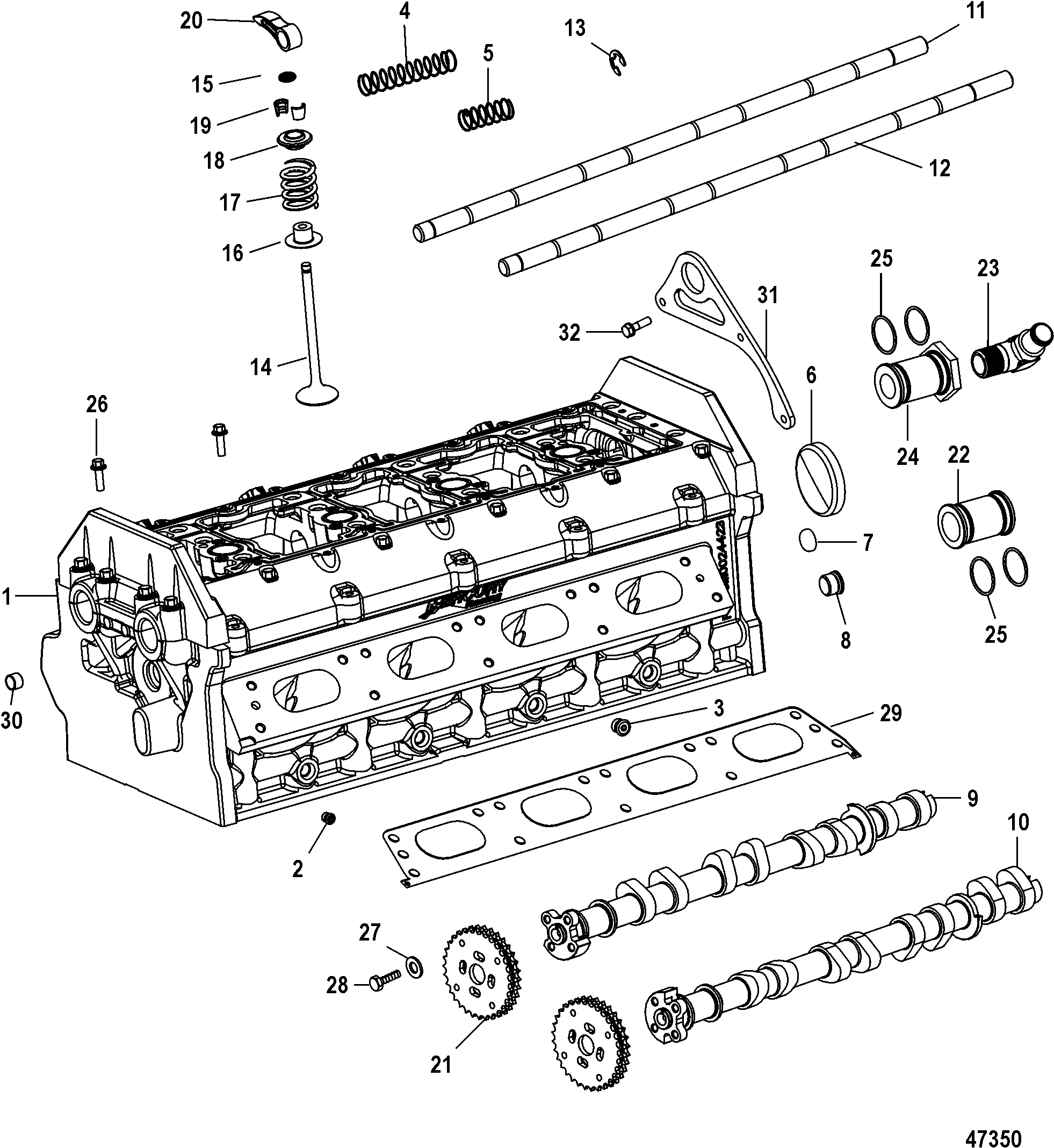

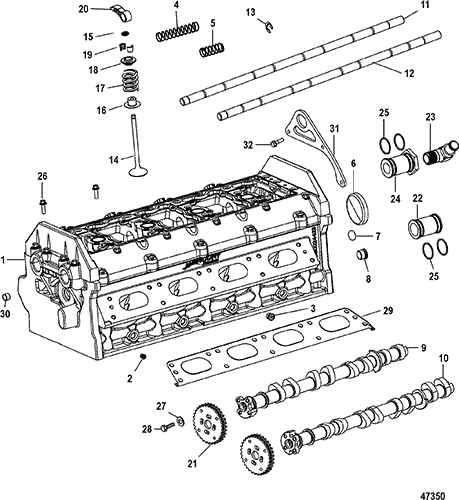

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
- NSS



NOT SOLD SEPARATE, CYLINDER HEAD ASSEMBLY 1
This Part is not sold separately Port
- NSS



NOT SOLD SEPARATE, CYLINDER HEAD ASSEMBLY 1
This Part is not sold separately Starboard
1 NSS



NOT SOLD SEPARATE, CYLINDER HEAD 1
This Part is not sold separately
2 19-8M0007790



PLUG, (8 mm) 4

3 19-8M0047994



PLUG, (12 mm) 4 19-889767
4 24-8M0043639



SPRING, Compression 6

5 24-8M0032152



SPRING, Compression 4

6 19-8M0046590



PLUG, Expansion (2.5 Inch) 1

7 19-8M0046621



PLUG, Expansion (.75 In) 1

8 19-891953



PLUG, (18 mm) 11

9 400-8M0070584



CAMSHAFT, Intake 1 8M0045145 Port
9 400-8M0070585



CAMSHAFT, Intake 1 8M0045146 Starboard
10 400-8M0070583



CAMSHAFT, Exhaust 1 8M0045144 Port
10 400-8M0070586



CAMSHAFT, Exhaust 1 8M0045147 Starboard
11 8M0032452



SHAFT, Follower, Intake 1

12 8M0031921



SHAFT, Follower, Exhaust 1

13 53-815949001



E RING 4

14 8M0058444



VALVE, Exhaust 8

14 8M0058443



VALVE, Intake 8

15 15-8M0050169



SHIM, Valve (2.4) AR

15 15-8M0050170



SHIM, Valve (2.425) AR

15 15-8M0050171



SHIM, Valve (2.45) AR

15 15-8M0050172



SHIM, Valve (2.475) AR

15 15-8M0050173



SHIM, Valve (2.5) AR

15 15-8M0050174



SHIM, Valve (2.525) AR

15 15-8M0050175



SHIM, Valve (2.55) AR

15 15-8M0050176



SHIM, Valve (2.575) AR

15 15-8M0050177



SHIM, Valve (2.6) AR

15 15-8M0050178



SHIM, Valve (2.625) AR

15 15-8M0050179



SHIM, Valve (2.65) AR

15 15-8M0050180



SHIM, Valve (2.675) AR

15 15-8M0050181



SHIM, Valve (2.7) AR

16 8M0022291



SEAL, Stem Valve 16

17 24-8M0032977



SPRING 16

18 8M0030783



RETAINER 16

19 8M0060498



KEY, Exhaust Valve 16 8M0035511
19 8M0060497



KEY, Intake Valve 16 8M0022293
20 8M0025802



FOLLOWER 16

21 8M0011778



SPROCKET 4

22 19-8M0032661



PLUG 2

23 22-8M0045704



FITTING, 90 Degree 2

24 19-8M0072238



PLUG 2 19-8M0046595
25 25-38780



O-RING 8

26 10-88552520



SCREW, (M6 x 20 MM) Stainless Steel 20

27 12-847541



WASHER 16

28 10-40001132



SCREW, (M8 x 20) 16

29 27-8M0032724



GASKET 2

30 17-8M0031290



DOWEL 4

31 8M0031916



BRACKET, Lifting Eye 1

32 10-4010716



SCREW, (M8 x 16) 3
