| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

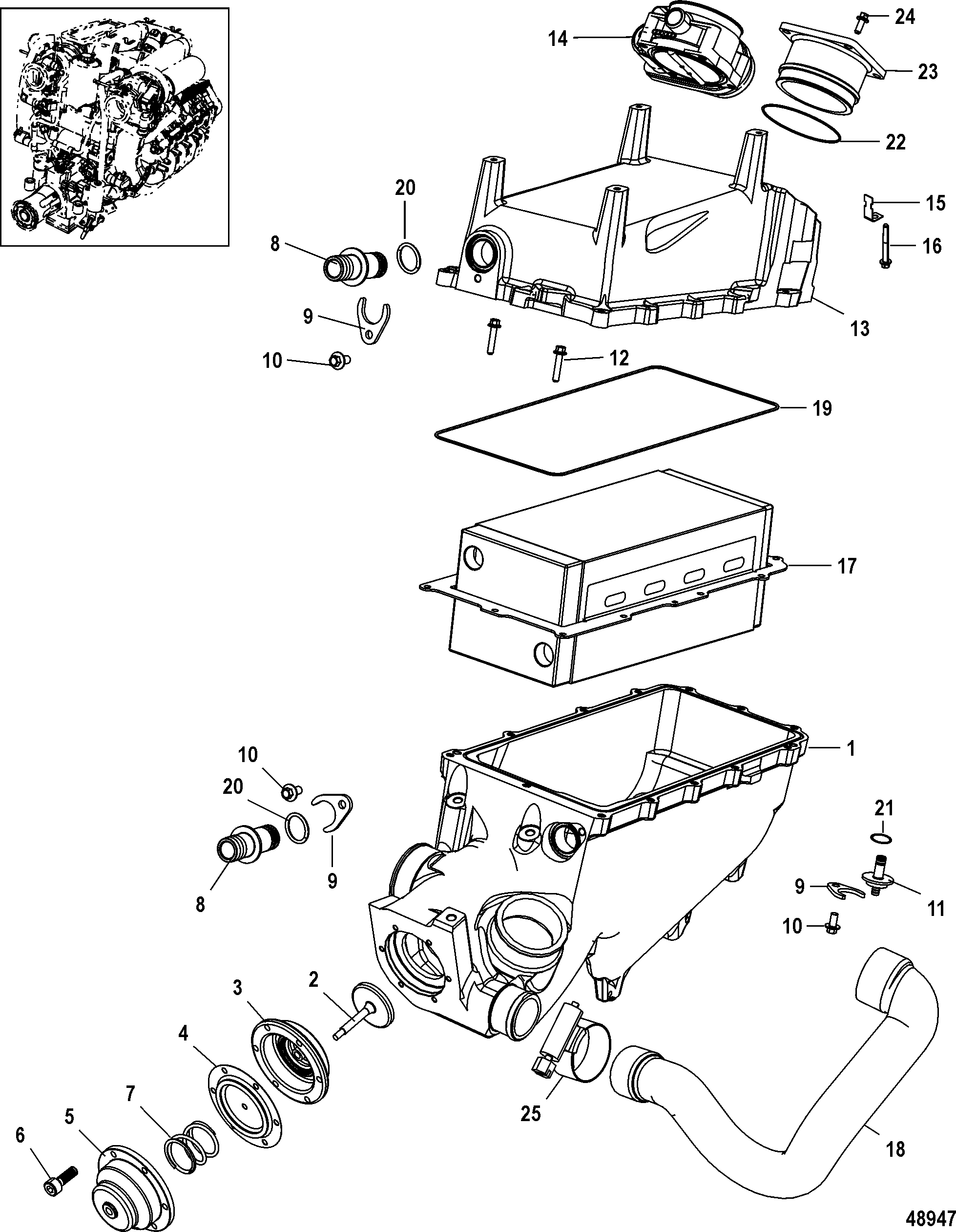

| 1 |
8M0059918 |
|
|
|
|
HOUSING, Charge Air Cooler (Lower) |
1 |
|
|
| 2 |
8M0084117 |
|
|
|
|
VALVE, Bypass |
1 |
8M0044281 |
|
| 3 |
8M0044209 |
|
|
|
|
GUIDE |
1 |
|
|
| 4 |
8M0045176 |
|
|
|
|
BYPASS |
1 |
|
|
| 5 |
8M0045074 |
|
|
|
|
DIAPHRAGM |
1 |
|
|
| 6 |
10-4008825 |
|
|
|
|
SCREW, (M6 x 25) |
5 |
|
|
| 7 |
24-8M0044116 |
|
|
|
|
SPRING |
1 |
|
|
| 8 |
8M0010659 |
|
|
|
|
COUPLER |
2 |
|
|
| 9 |
8M0010661 |
|
|
|
|
RETAINER |
3 |
|
|
| 10 |
10-4010716 |
|
|
|
|
SCREW, (M8 x 16) |
3 |
|
|
| 11 |
22-8M0030306 |
|
|
|
|
FITTING, Intercooler Drain |
1 |
|
|
| 12 |
10-88552530 |
|
|
|
|
SCREW, (M6 x 20 MM) Stainless Steel |
13 |
|
|
| 13 |
8M0059916 |
|
|
|
|
HOUSING, Charge Air Cooler (Upper) |
1 |
|
|
| 14 |
877828T02 |
|
|
|
|
CONTROL, Throttle - Electronic |
1 |
|
|
| 15 |
884353 |
|
|
|
|
BRACKET |
1/2 |
|
|
| 16 |
10-88552550 |
|
|
|
|
SCREW, (M6 x 50 MM) Stainless Steel |
4/8 |
|
|
| 17 |
8M0059917 |
|
|
|
|
COOLER, Charge Air |
1 |
|
|
| 18 |
32-8M0045825 |
|
|
|
|
HOSE, Compressor Bypass |
1 |
|
|
| 19 |
25-8M0048117 |
|
|
|
|
O-RING, Charge Air Cooler |
2 |
|
|
| 20 |
25-35480 |
|
|
|
|
O-RING, (1.237 x .103) |
2 |
|
|
| 21 |
25-35480 |
|
|
|
|
O-RING, (1.237 x .103) |
1 |
|
|
| 22 |
25-8M0053551 |
|
|
|
|
O-RING, (3.489 x .070) |
1 |
|
|
| 23 |
8M0054078 |
|
|
|
|
COVER, Throttle Opening |
1 |
|
|
| 24 |
10-88552516 |
|
|
|
|
SCREW, (M6 x 16 MM) Stainless Steel |
4 |
|
|
| 25 |
54-180768 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
