1100 QC4V - Serial 0M965965 and Up - Intake Manifold

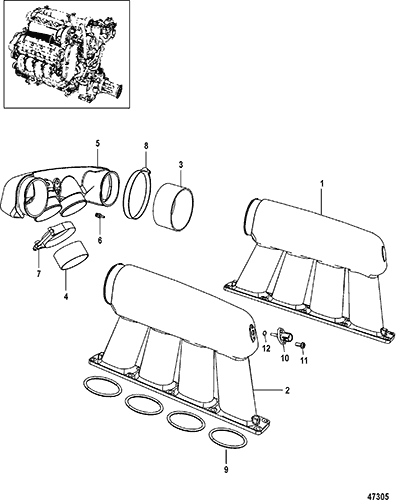

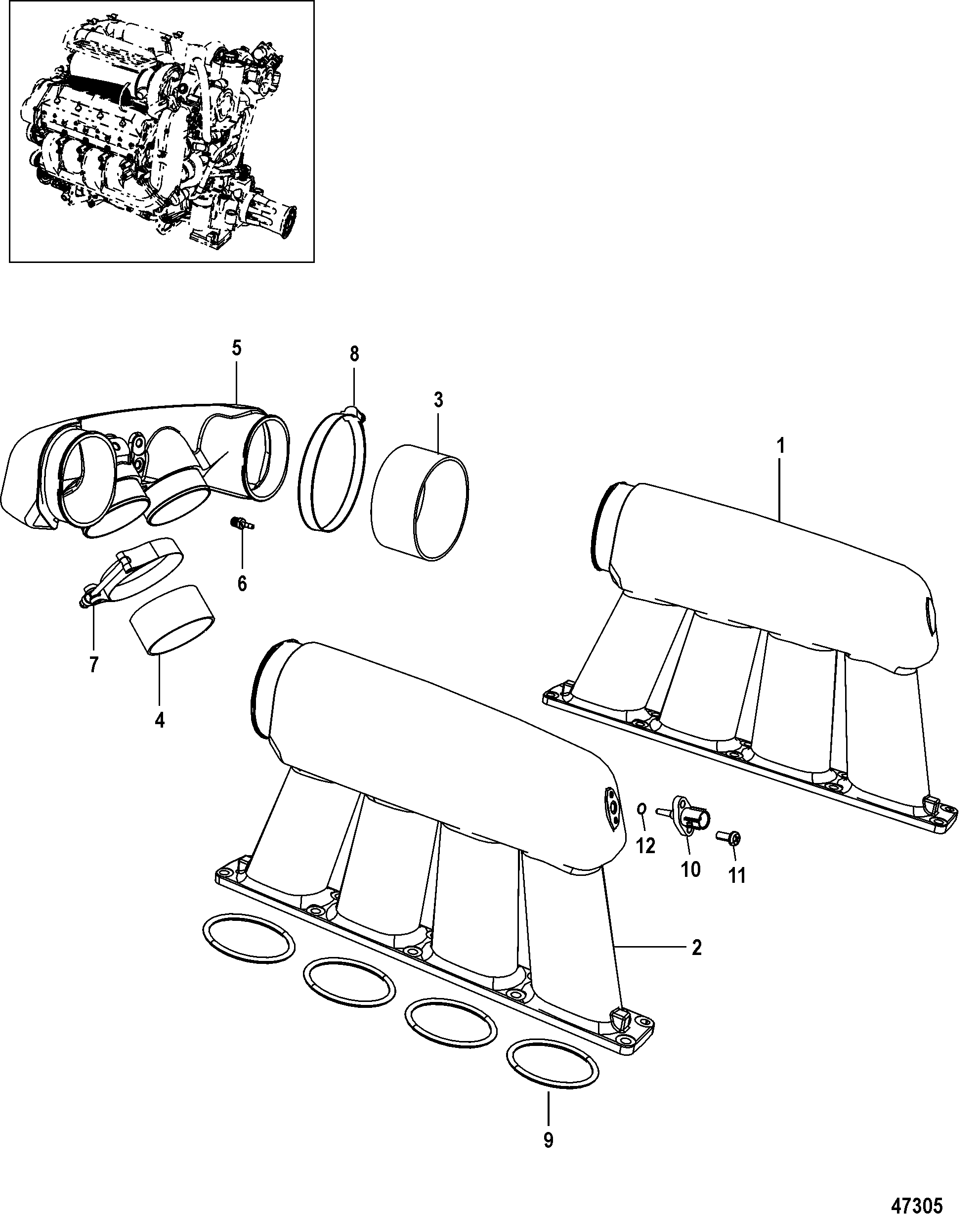

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M0059919 | MANIFOLD ASSEMBLY, Intake | 1 | Starboard | |||||
| 2 | 8M0059920 | MANIFOLD ASSEMBLY, Intake | 1 | Port | |||||
| 3 | 32-8M0043307 | HOSE, (4 In. ID x 2.25 In.), Manifold to Crossover | 2 | ||||||
| 4 | 32-8M0043308 | HOSE, (3.5 In. ID x 1.75 In.), Crossover to Throttle Body | 2 | ||||||
| 5 | 8M8025187 | PLENUM, Crossover | 1 | ||||||
| 6 | 22-67902 | CONNECTOR | 1 | ||||||
| 7 | 54-8M0048167 | CLAMP | 1 | ||||||
| 8 | 54-815504360 | CLAMP | 2 | ||||||
| 9 | 25-62700 | O-RING, (3.237 x .103) | 8 | ||||||
| 10 | 891663001 | SENSOR ASSEMBLY, Temperature | 1 | ||||||
| 11 | 10-40056107 | SCREW, (M5 x 16) | 2 | ||||||
| 12 | 8M0041410 | GASKET | 1 |
