1100 QC4V - Serial 0M965965 and Up - Fuel Pump and Fuel Lines, 0M966604 and Above

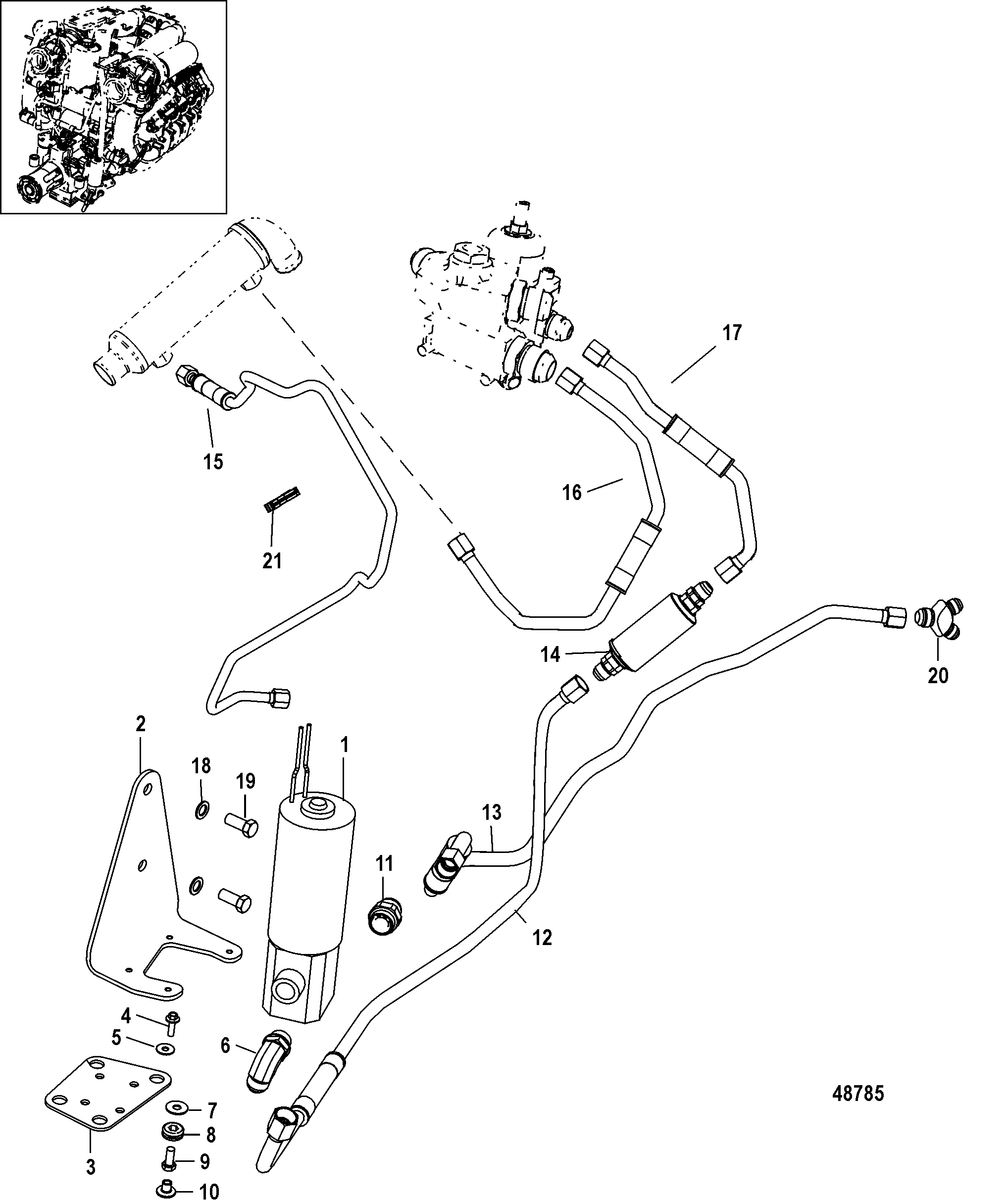

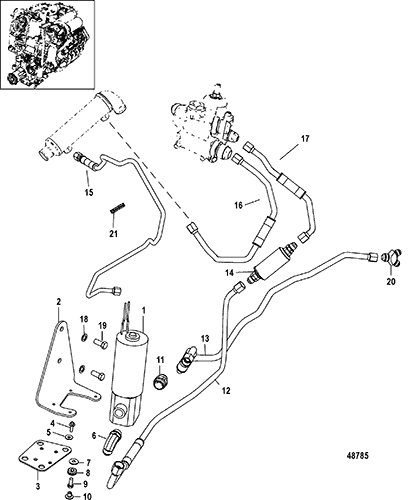

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 8M0058449



FUEL PUMP 1
- 37-8M0025970



DECAL, Ignition Protection 1

2 8M0048183



BRACKET, Fuel Pump 1
3 8M0048184



PLATE, Base 1

4 10-4010620



SCREW, (M6 x 20) Stainless Steel 4
5 12-65567



WASHER, (.265 x .750 x .048) Stainless Steel 4
6 22-8M0027352



FITTING, 90 Degree 1
7 8M0042642



WASHER, (.323 x .562 x .063) 4
8 25-8349851



GROMMET 4
9 10-845856



SCREW, (.312-18 x .750) 4
10 23-856954



BUSHING 4
11 22-841827A01



FITTING ASSEMBLY, Aluminum - With O-Ring 1
- 32-8M0059631



FUEL LINE KIT 1
12 NSS



NOT SOLD SEPARATE, Fuel, Pump to Filter 1   This Part is not sold separately
13 NSS



NOT SOLD SEPARATE, Fuel, Supply to Pump 1   This Part is not sold separately
14 35-8M0058450



FUEL FILTER ASSEMBLY 1
15 32-8M0058579



LINE ASSEMEBLY, Fuel 1
16 32-8M0058245



FUEL LINE ASSEMBLY, Regulator to Cooler 1
17 32-8M0058244



FUEL LINE ASSEMBLY, Cooler to Return 1
18 12-842922



WASHER, (.450 x .750 x .060) Stainless Steel 2
19 10-99204



SCREW, (.437-14 x 1.00) Stainless Steel 2
20 22-8M0057410



FITTING, Y 1
21 54-8M0047480



CLIP 2
