| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |
| - |

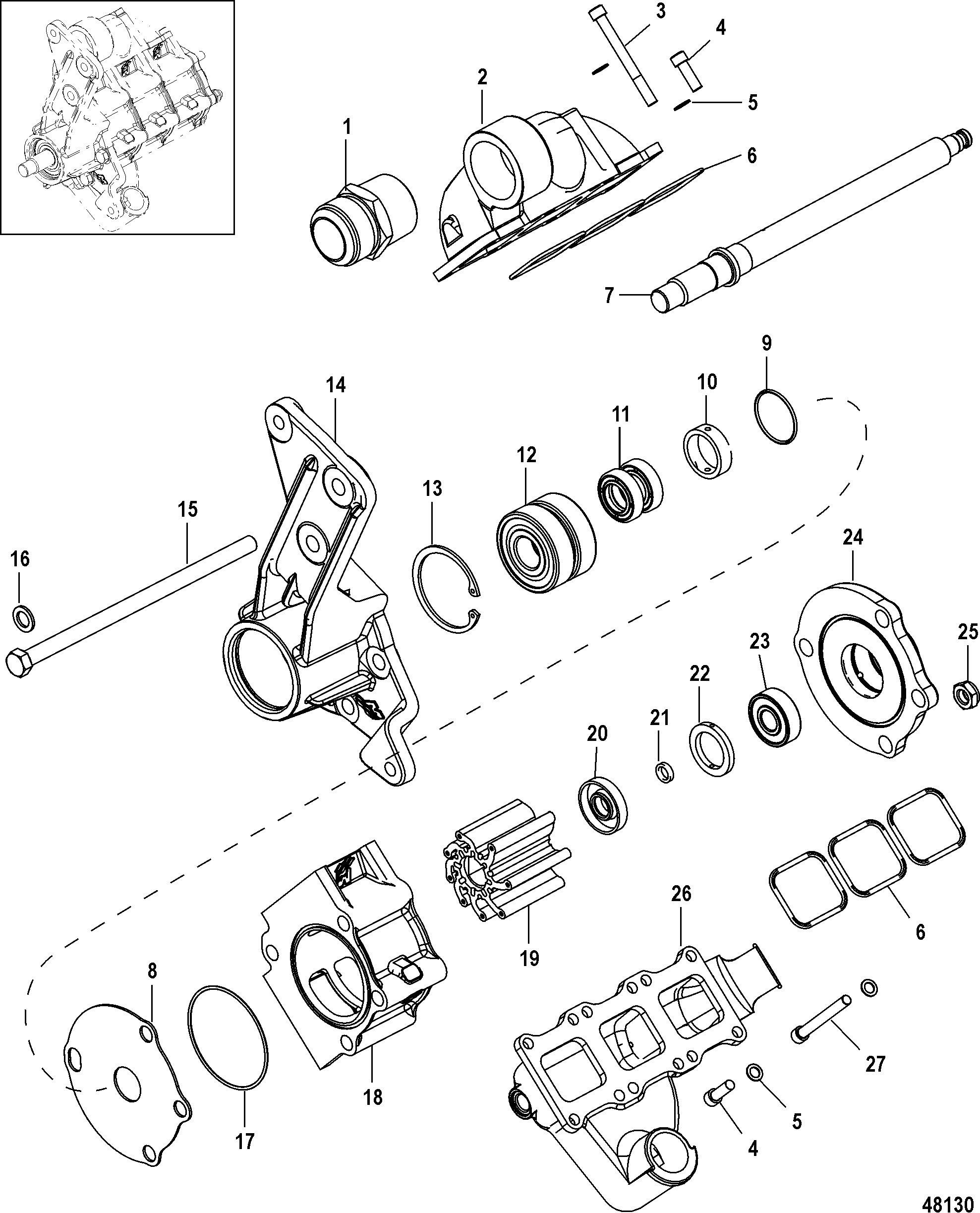

8M0060389 |
|
|
|
|
PUMP ASSEMBLY, Sea Water (Brass - Black) |
1 |
|
|
| 1 |
22-8M0060643 |
|
|
|
|
FITTING, Straight |
1 |
|
|
| 2 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, MANIFOLD INLET |
1 |
|
This Part is not sold separately |
| 3 |
10-848920 |
|
|
|
|
SCREW, (.250-20 x 2.50) |
4 |
|
|
| 4 |
10-92160 |
|
|
|
|
SCREW, (.250-20 x .750) Stainless Steel |
18 |
|
|
| 5 |
12-35950 |
|
|
|
|
WASHER, (.273 x .437 x .031) Stainless Steel |
24 |
|
|
| 6 |
25-849087 |
|
|
|
|
O-RING, (1.862 x .103) |
6 |
|
|
| 7 |
840053 |
|
|
|
|
SHAFT, Sea Water Pump |
1 |
|
|
| 8 |
840052 |
625-4274 |
|
|
|
WEAR PLATE, Stainless Steel |
4 |
|
|
| 9 |
25-846594 |
|
|
|
|
O-RING, (1.239 x .070) |
1 |
|
|
| 10 |
23-8M0012427 |
|
|
|
|
SPACER, (.355) |
1 |
|
|
| 11 |
26-841330 |
|
|
|
|
SEAL |
2 |
|
|
| 12 |
30-840056 |
|
|
|
|
BEARING |
2 |
|
|
| 13 |
8M0051043 |
|
|
|
|
RETAINING RING |
1 |
|
|
| 14 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, FRONT BEARING MOUNT |
1 |
|
This Part is not sold separately |
| 15 |
10-841356 |
|
|
|
|
SCREW, (.375-16 x 7.500) Stainless Steel |
4 |
|
|
| 16 |
12-37828 |
|
|
|
|
WASHER, (.390 x .625 x .062) Stainless Steel |
8 |
|
|
| 17 |
25-94926 |
|
|
|
|
O-RING, (2.489 x .070) |
7 |
|
|
| 18 |
8M0056796 |
|
|
|
|
BODY, Sea Water Pump Impeller (Black) |
3 |
|
|
| 19 |
47-59362T1 |
625-4011 |
676-9-45375 |
700-89740 |
|
IMPELLER |
3 |
|
|
| 20 |
26-840057 |
|
|
|
|
SEAL |
1 |
|
|
| 21 |
26-863151 |
|
|
|
|
SEAL, Quad Ring |
1 |
|
|
| 22 |
23-8M0012575 |
|
|
|
|
SPACER, (.145) |
1 |
|
|
| 23 |
30-805500 |
|
|
|
|
BEARING, Ball |
1 |
|
|
| 24 |
8M0008192 |
|
|
|
|
COVER, Rear Bearing - Black |
1 |
|
|
| 25 |
11-826709112 |
|
|
|
|
NUT, (.375-16) Stainless Steel |
4 |
|
|
| 26 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, MANIFOLD OUTLET |
1 |
|
This Part is not sold separately |
| 27 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, SCREW |
2 |
|
This Part is not sold separately |
