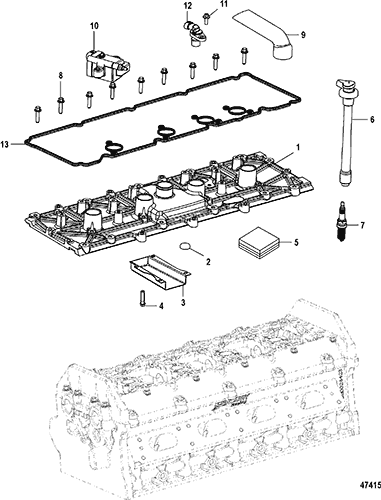

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |
| - |
NA |
|
|
|
|
NOT AVAILABLE, CYLINDER HEAD ASSEMBLY |
1 |
|
Port |
| - |
NA |
|
|
|
|
NOT AVAILABLE, CYLINDER HEAD ASSEMBLY |
1 |
|
Starboard |
| 1 |
8M0058924 |
|
|
|
|
COVER ASSEMBLY, Bearing Plate |
1 |
|
Port SN# 0M967364 & Below |
| 1 |
8M0058925 |
|
|
|
|
COVER ASSEMBLY, Bearing Plate |
1 |
|
Starboard SN# 0M967364 & Below |
| 1 |
8M0058926 |
|
|
|
|
COVER ASSEMBLY, Bearing Plate |
1 |
|
Port SN# 0M967365 & Up |
| 1 |
8M0058927 |
|
|
|
|
COVER ASSEMBLY, Bearing Plate |
1 |
|
Starboard SN# 0M967365 & Up |
| 2 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, PLUG |
1 |
|
This Part is not sold separately |
| 3 |
8M0050565 |
|
|
|
|
BAFFLE, Breather |
1 |
|
|
| 4 |
10-40056103 |
|
|
|
|
SCREW, (M5 x 6) |
4 |
|
|
| 5 |
8M0050721 |
|
|
|
|
FILTER |
1 |
|
|
| 6 |
84-8M0050483 |
|
|
|
|
CABLE ASSEMBLY, Boot and Lead |
8 |
|
SN# 0M967364 & Below |
| 6 |
84-8M0054627 |
|
|
|
|
CABLE ASSEMBLY, Boot and Lead |
8 |
|
SN# 0M967365 & Up |
| 7 |
33-8M0045681 |
|
|
|
|
SPARK PLUG, NGK R7437-9 |
8 |
|
|
| 8 |
10-897657025 |
|
|
|
|
SCREW, (M6 x 25 MM) |
60 |
|
|
| 9 |
32-8M0045795 |
|
|
|
|
HOSE, Breather |
1 |
|
|
| NS |
54-816311T |
|
|
700-21465 |
|
TIE STRAP, (8.00 Inches) |
2 |
54-816311 |
|
| 10 |
300-8M0077471 |
|
|
|
|
COIL, Ignition |
8 |
339-879984T01 |
SN# 0M967364 & Below |
| 10 |
339-8M0077473 |
|
|
|
|
COIL ASSEMBLY, Ignition |
8 |
339-883778A02 |
SN# 0M967365 & Up |
| 11 |
10-82130012 |
|
|
|
|
SCREW, (M6 x 12) |
1 |
|
|
| 12 |
8M0011987 |
|
|
|
|
SENSOR |
1 |
|
|
| 13 |
27-8M0041094 |
|
|
|
|
GASKET, Bearing Plate |
1 |
|
|
