1100 QC4V - Serial 0M965965 and Up - Turbocharger, Turbine Assembly

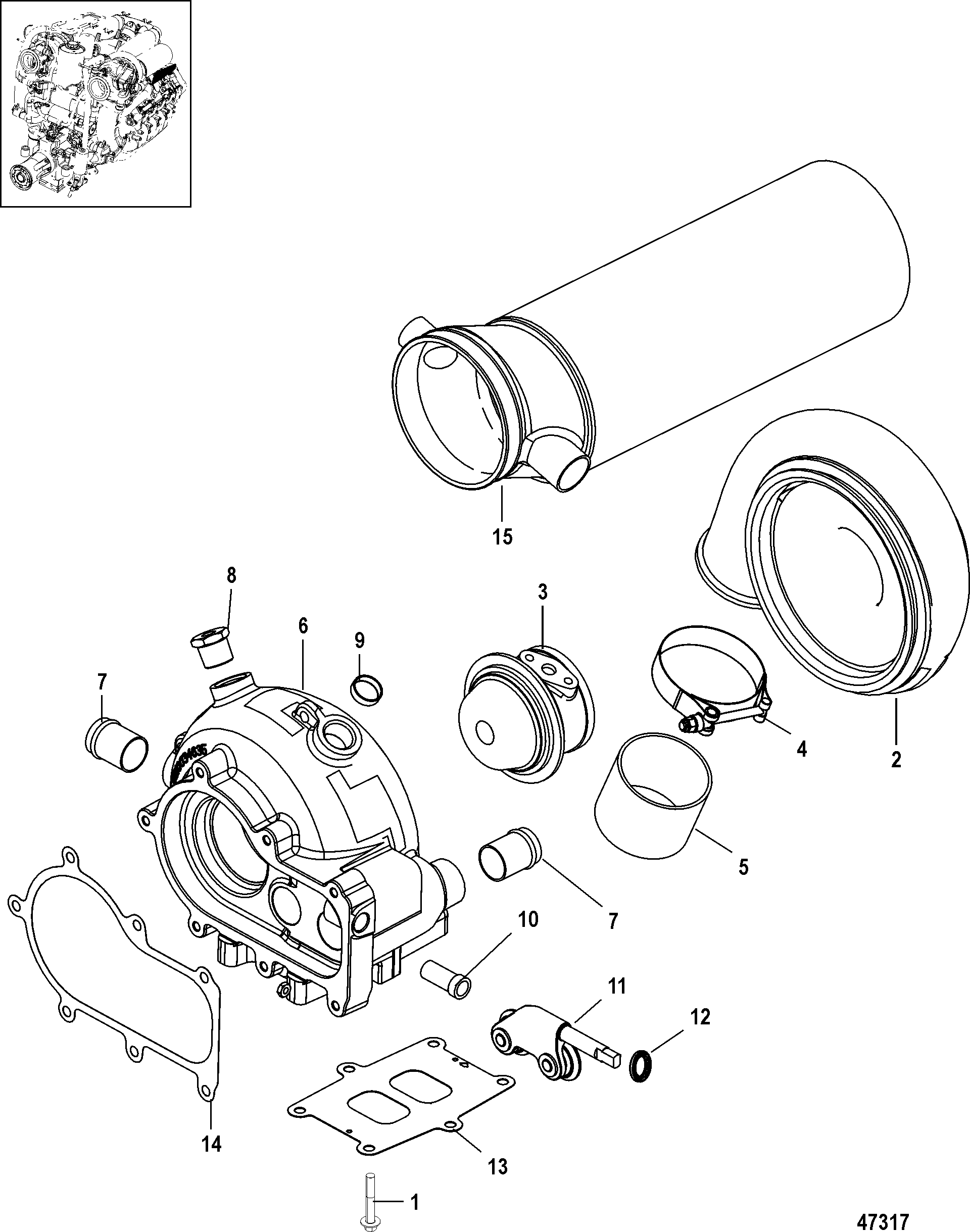

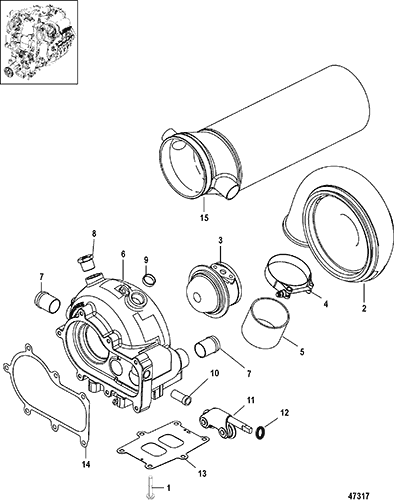

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes | |
| 1 | 10-4010716 | SCREW, (M8 x 16) | 6 | |||||||
| 2 | 8M8025240 | COMPRESSOR HOUSING | 1 | |||||||
| 3 | 8M8025238 | HOUSING ASSEMBLY, Center Rotating | 1 | |||||||
| 4 | 54-8M0048165 | CLAMP, T Bolt (82.6 mm) | 2 | |||||||
| 5 | 32-8M0044104 | HOSE, (3 In. ID x 2.57 In.), Turbocharger to Intercooler | 1 | |||||||
| 6 | 8M0059267 | TURBINE HOUSING ASSEMBLY | 1 | |||||||
| 7 | NSS | NOT SOLD SEPARATE, TUBE | 2 | This Part is not sold separately | ||||||
| 8 | NSS | NOT SOLD SEPARATE, BUSHING | 1 | This Part is not sold separately | ||||||
| 9 | NSS | NOT SOLD SEPARATE, PLUG | 2 | This Part is not sold separately | ||||||
| 10 | NSS | NOT SOLD SEPARATE, SPACER | 1 | This Part is not sold separately | ||||||
| 11 | 8M8027391 | ARM, Wastegate | 1 | |||||||
| 12 | 25-8M0060396 | SEAL | 1 | |||||||
| 13 | 27-8M0041677 | GASKET, Turbo Inlet | 1 | |||||||
| 14 | 27-8M0041682 | GASKET, Turbo Outlet | 1 | |||||||
| 15 | 8M0041640 | AIR FILTER | 1 | |||||||
| - | 54-8M0049914 | CLAMP, V Band | 1 |
