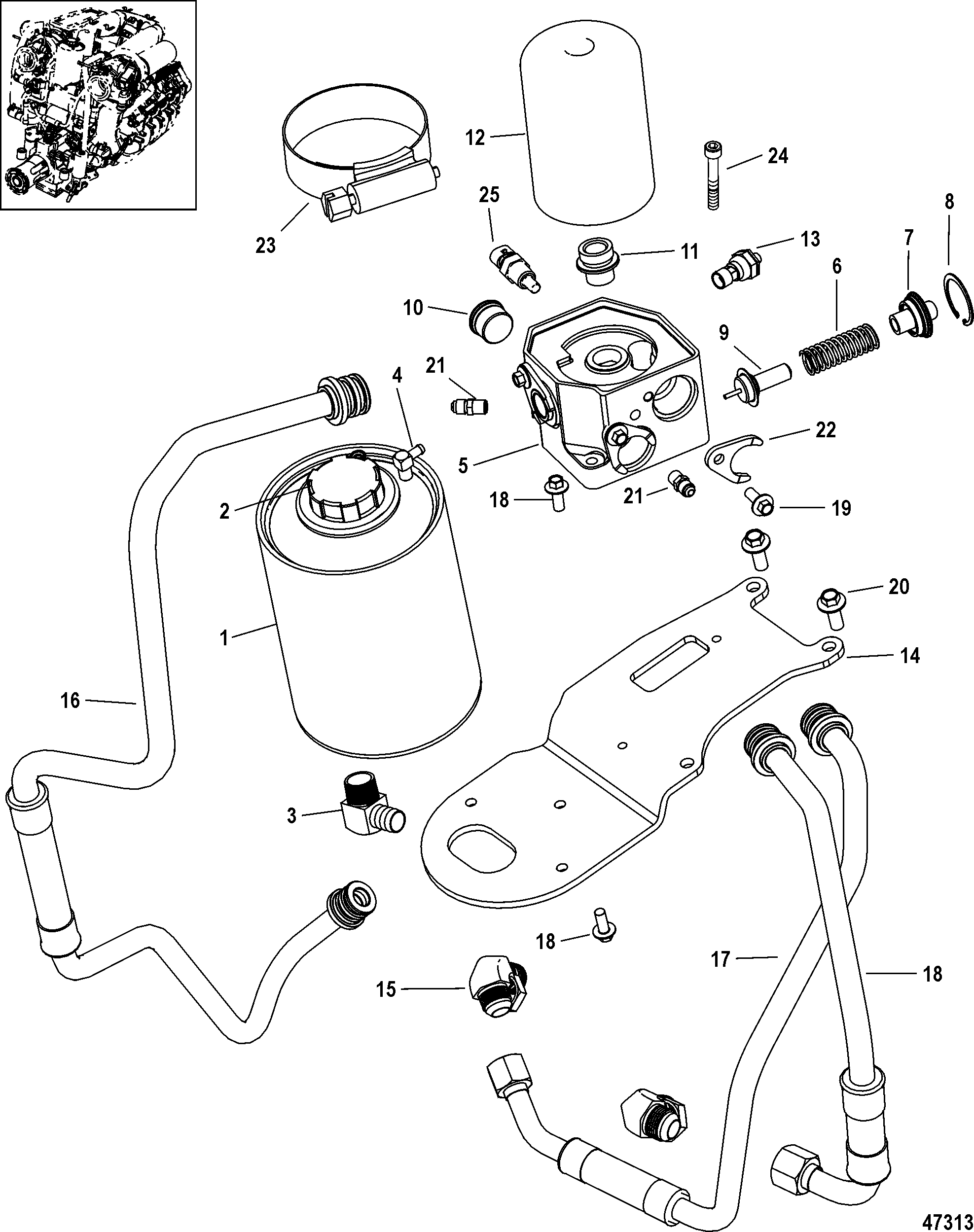

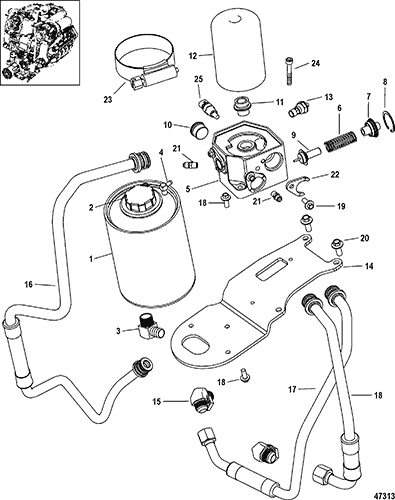

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |
| 1 |
8M0058451 |
|
|
|
|
COOLANT RESERVOIR ASSEMBLY |
1 |
|
|
| 2 |
862863 |
|
|
|
|
CAP, Coolant Reservoir |
1 |
|
|
| 3 |
22-860346 |
|
|
|
|
FITTING, Elbow (90 Degree) (.750) |
1 |
|
|
| 4 |
8M8027374 |
|
|
|
|
BASE ASSEMBLY, Oil Filter |
1 |
|
|
| 5 |
24-816162 |
|
|
|
|
SPRING |
1 |
|
|
| 6 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, COVER |
1 |
|
This Part is not sold separately |
| 7 |
53-848571 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 8 |
8161631 |
|
|
|
|
THERMOSTAT |
1 |
|
|
| NS |
849983 |
|
|
|
|
PISTON, Oil Thermostat |
1 |
|
|
| 9 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, PLUG |
1 |
|
This Part is not sold separately |
| 10 |
22-805632 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 11 |
35-881126K01 |
|
|
|
|
FILTER, Oil |
1 |
|
|
| 12 |
8M6000631 |
|
|
|
|
SENSOR, Pressure |
1 |
8M0010244 |
|
| 13 |
8M0044427 |
|
|
|
|
BRACKET, Oil Filter and Reservoir |
1 |
|
|
| 14 |
22-863297 |
|
|
|
|
FITTING, 90 Degree |
2 |
|
|
| 15 |
32-8M0058575 |
|
|
|
|
LINE ASSEMEBLY, Oil, Filter to Block |
1 |
|
|
| 16 |
32-8M0058577 |
|
|
|
|
LINE ASSEMEBLY, Oil, Filter to Cooler |
1 |
|
|
| 17 |
32-8M0058576 |
|
|
|
|
LINE ASSEMEBLY, Oil, Cooler to Filter |
1 |
|
|
| 18 |
10-4010720 |
|
|
|
|
SCREW, (M8 x 20) |
7 |
|
|
| 19 |
10-4010716 |
|
|
|
|
SCREW, (M8 x 16) |
3 |
|
|
| 20 |
22-840009 |
|
|
|
|
CONNECTOR |
2 |
|
|
| 21 |
8M0010661 |
|
|
|
|
RETAINER |
5 |
|
|
| 22 |
54-18076016 |
|
|
|
|
CLAMP, Worm Gear |
1 |
|
|
| 23 |
10-4008825 |
|
|
|
|
SCREW, (M6 x 25) |
1 |
|
|
| 24 |
805218T |
|
676-9-42402 |
|
|
SENSOR |
1 |
|
|
