1100 QC4V - Serial 0M965965 and Up - Fuel Regulator Assembly

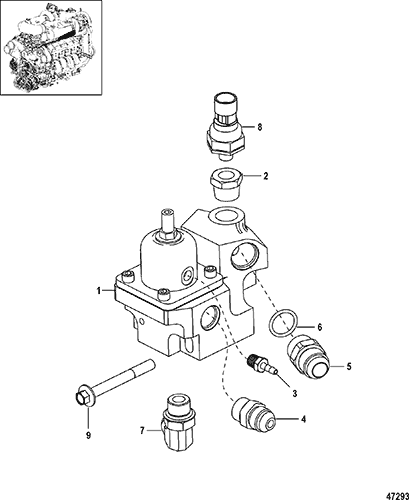

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Intake Cover
- Cooling Components
- Cover Assembly and Circulating Pump
- Cylinder Block
- Cylinder Head Assembly
- Cylinder Head, Bearing Plate Cover
- Electrical Components, Miscelleneous
- Electrical Plate Assembly
- Exhaust Manifold
- Flywheel and Mounts
- Fuel Filter Assembly
- Fuel Pump and Fuel Lines, 0M966603 and Below
- Fuel Pump and Fuel Lines, 0M966604 and Above
- Fuel Rail Assembly
- Fuel Regulator Assembly
- Intake Manifold
- Intercooler Assembly
- Oil Filter and Reservoir
- Oil Pan and Pump (0M966911 and Below)
- Oil Pan and Pump (0M966912 and Above)
- Power Steering Cooler Assembly
- Power Steering Pump, Pulleys
- Sea Water Pump Components
- Sea Water Pump, 0M966603 and Below
- Sea Water Pump, 0M966604 and Above
- Starter and Alternator
- Tensioner and Sprockets
- Transmission, Closed Coupling
- Transmission, Driveline
- Turbocharger, Turbine Assembly
- Turbocharger, Wastegate Adapter
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| - | 8M8027358 | REGULATOR ASSEMBLY, Fuel Pressure | 1 | ||||||
| 1 | NSS | NOT SOLD SEPARATE, FUEL REGULATOR | 1 | This Part is not sold separately | |||||
| NS | 8M0044301 | DIAPHRAGM, Fuel Regulator | 1 | ||||||
| 2 | 22-36492 | BUSHING, Reducer | 1 | ||||||
| 3 | 22-67902 | CONNECTOR | 1 | ||||||
| 4 | 22-841818 | FITTING ASSEMBLY, Aluminum - With O-Ring | 2 | ||||||
| 5 | 22-841826A01 | FITTING ASSEMBLY, Fuel - Aluminum | 3 | ||||||
| 6 | 25-849088 | O-RING, (.755 x .097) | 3 | ||||||
| 7 | 22-842631 | FITTING ASSEMBLY, 90 Degree | 1 | ||||||
| 8 | 8M6000631 | SENSOR, Pressure | 1 | 8M0010244 | |||||
| 9 | 10-4010770 | SCREW, (M8 x 70) | 1 |
