1100 QC4V - Serial 0M965965 and Up - Oil Pan and Pump (0M966912 and Above)

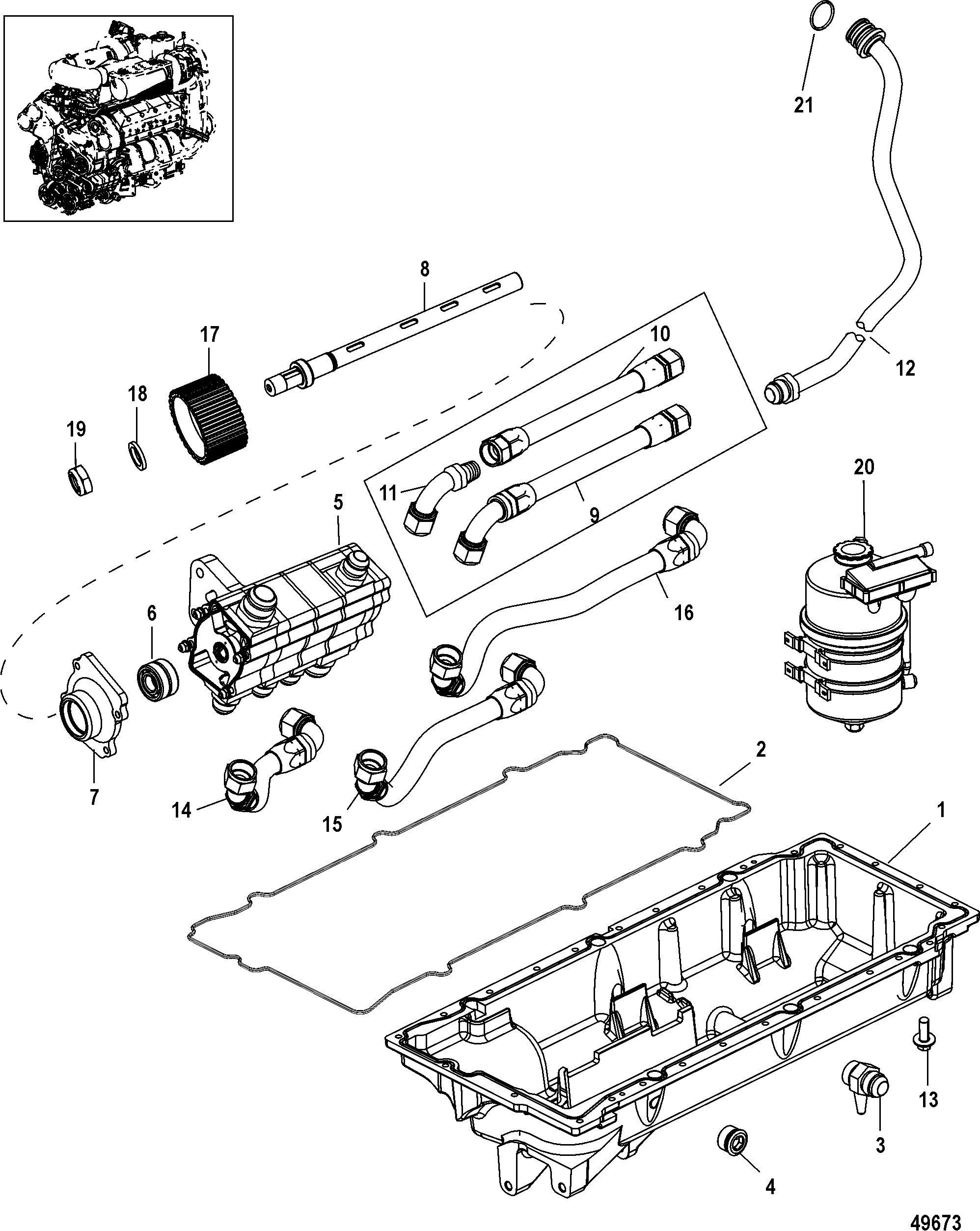

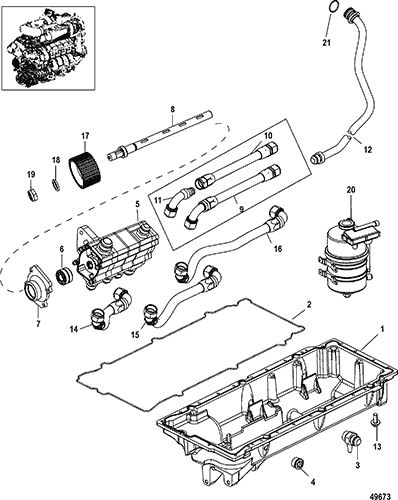

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superseded From Special Notes
1 8M0082012



OIL PAN KIT 1 8M0058452
2 8M0047042



SEAL, Oil Pan 1

3 8M0050231



FITTING ASSEMBLY, With Screen And O-Ring 3

4 19-8M0049794



PLUG, Steel 1

5 8M0073721



OIL PUMP ASSEMBLY 1 8M0059632
6 NSS



NOT SOLD SEPARATE, BEARING 2
This Part is not sold separately
7 NSS



NOT SOLD SEPARATE, COVER 1
This Part is not sold separately
8 NSS



NOT SOLD SEPARATE, SHAFT 1
This Part is not sold separately
9 32-8M8027376



HOSE, Oil 1 32-8M0058011 Design I
10 32-8M0063157



HOSE, Oil 1
Design II, Component of 8M8027376
11 32-8M0062712



TUBE, (90 Degree), Oil 1
Design II, Component of 8M8027376
12 32-8M0057956



LINE ASSEMBLY, Oil, Pump to Filter 1

13 10-4010620



SCREW, (M6 x 20) Stainless Steel 27

14 32-8M0033819



HOSE, Oil, Forward 1

15 32-8M0033820



HOSE, Oil, Center Scavenge 1

16 32-8M0033822



HOSE, Oil, Aft Scavenge 1

17 8M0060771



PULLEY, (28 Teeth), Oil Pump 1

18 12-846378



WASHER, (.688 x 1.00 x .120) Stainless Steel 1

19 11-826709121



NUT, (.625-18) Stainless Steel 1

20 8M0007324



OIL TANK 1

- 8M8027376



OIL LINE KIT 1
(Replaces one piece oil line)
