4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Alternator and Brackets (Mando)

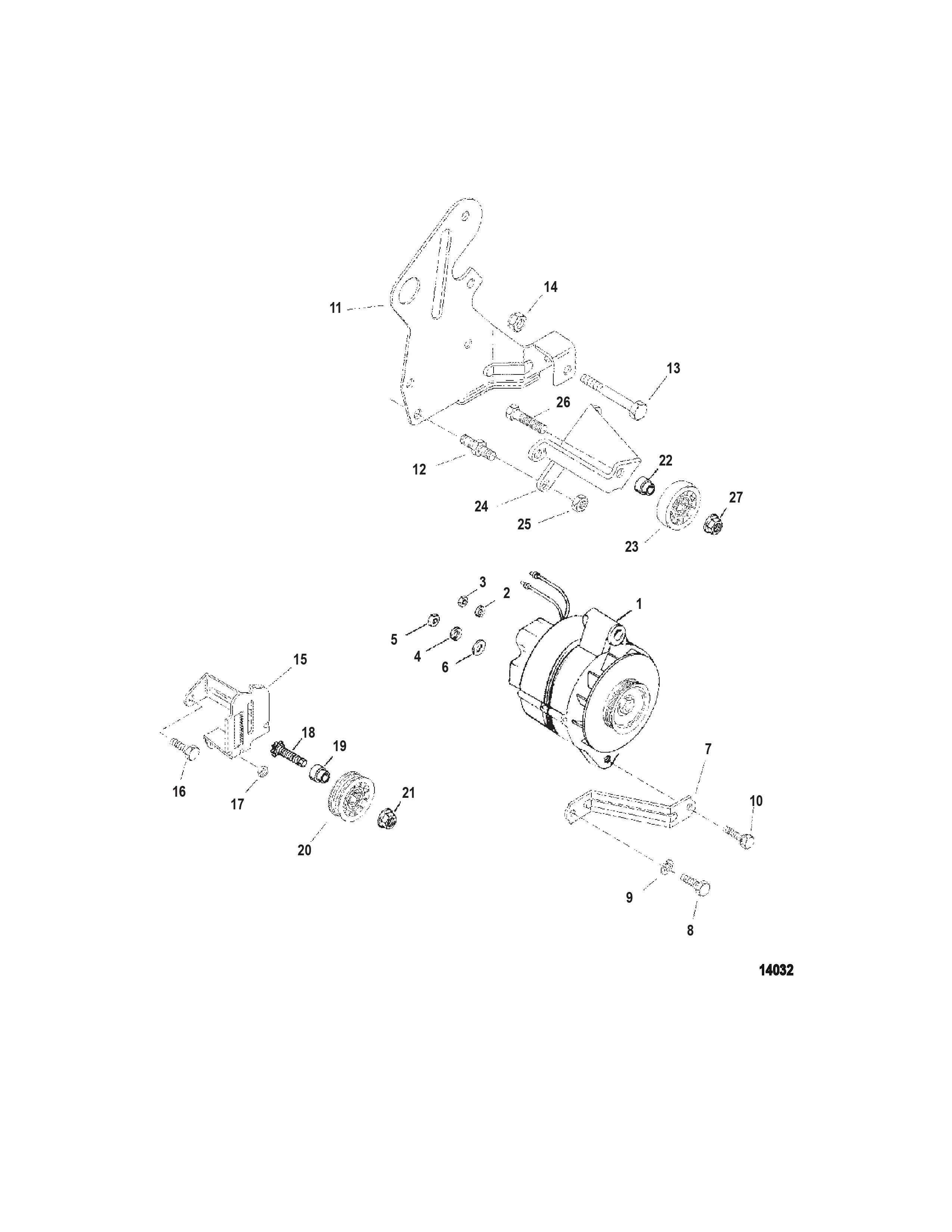

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets (Delco)
- Alternator and Brackets (Mando)
- Alternator Components (Mando)
- Closed Cooling System
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Decals
- Distributor (S-N-0L012009 - 0L359999)
- Distributor (S-N-0L360000 and Up)
- ECM and Electrical Brackets (S-N-0L012009 - 0L359999)
- ECM and Electrical Brackets (S-N-0L360000 and Up)
- Electrical Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold and Exhaust Elbow (2 Piece)
- Exhaust System (Use With 1 Piece Manifold)
- Exhaust System (Use With 2 Piece Manifold))
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Front Cover
- Mercathode Components
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump (Use With Bravo Engines)
- Serpentine Belts
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (Delco-PG260F1)
- Swiss Emissions Parts (BSO1 and SAV1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-807653T, Sierra: 676-18-5960 | ALTERNATOR ASSEMBLY (65 AMP) | 1 | [1] | |
| 2 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 3 | 0011 | OEM: 525-11-79989 | NUT (#10-24) Stainless Steel | 1 | ||
| 4 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 1 | ||
| 5 | 0011 | OEM: 525-11-94330 | NUT (.250-20) Brass | 1 | ||
| 6 | 0012 | OEM: 525-12-96457 | WASHER Phenolic (.27 x .81 x .062) | 1 | ||
| 7 | 0000 | OEM: 525-807750T | BRACE | 1 | ||
| 8 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 9 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 10 | 0010 | OEM: 525-10-29198 | SCREW AND LOCKWASHER (.312- 18 x .875) | 1 | ||
| 11 | 0000 | OEM: 525-860370T | BRACKET Alternator/Power Steering | 1 | ||
| 12 | 0016 | OEM: 525-16-860102 | STUD (.375-16 x 1.730) | 3 | ||
| 13 | 0010 | OEM: 525-10-56743 | SCREW (.375-24 x 3.125) | 1 | ||
| 14 | 0011 | OEM: 525-11-23161 | NUT (.375-24) | 1 | ||
| 15 | 0000 | OEM: 525-807767T | BRACKET Idler Adjustment | 1 | ||
| 16 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 17 | 0011 | OEM: 525-11-29250 | NUT (.312-24) | 1 | ||
| 18 | 0043 | OEM: 525-43-8183812 | PINION STUD (.437-20) Stainless Steel | 1 | ||
| 19 | 0000 | 818380T | BUSHING | 1 | ||
| 20 | 0000 | OEM: 530-807757T, Sierra: 676-18-6457 | PULLEY ASSEMBLY Idler - Black | 1 | ||
| 21 | 0011 | 817618 | NUT (.437-20) | 2 | ||
| 22 | 0000 | 818380T | BUSHING | (CLSD COOLING/HYD STEERING) | 1 | |
| 23 | 0000 | 818382 | PULLEY | (CLSD COOLING/HYD STEERING) | 1 | |
| 23 | 0000 | OEM: 530-807757T, Sierra: 676-18-6457 | PULLEY ASSEMBLY Idler - Black | (CLSD COOLING/HYD STEERING) | 1 | |
| 24 | 0000 | OEM: 525-807753T1 | BRACKET | (CLSD COOLING/HYD STEERING) | 1 | |
| 25 | 0011 | OEM: 525-11-32219 | NUT (.375-16) | (CLSD COOLING/HYD STEERING) | 3 | |
| 26 | 0010 | OEM: 525-10-816601, Sierra: 676-18-3230, GLM: 700-28430 | SCREW (.437-20 x 1.500) | (CLSD COOLING/HYD STEERING) | 1 | |
| 27 | 0011 | 817618 | NUT (.437-20) | 1 |
PART NOTES:
[1] - Alternate part numbers:
807653R01Reman
807653TQS
