4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - ECM and Electrical Brackets (S-N-0L012009 - 0L359999)

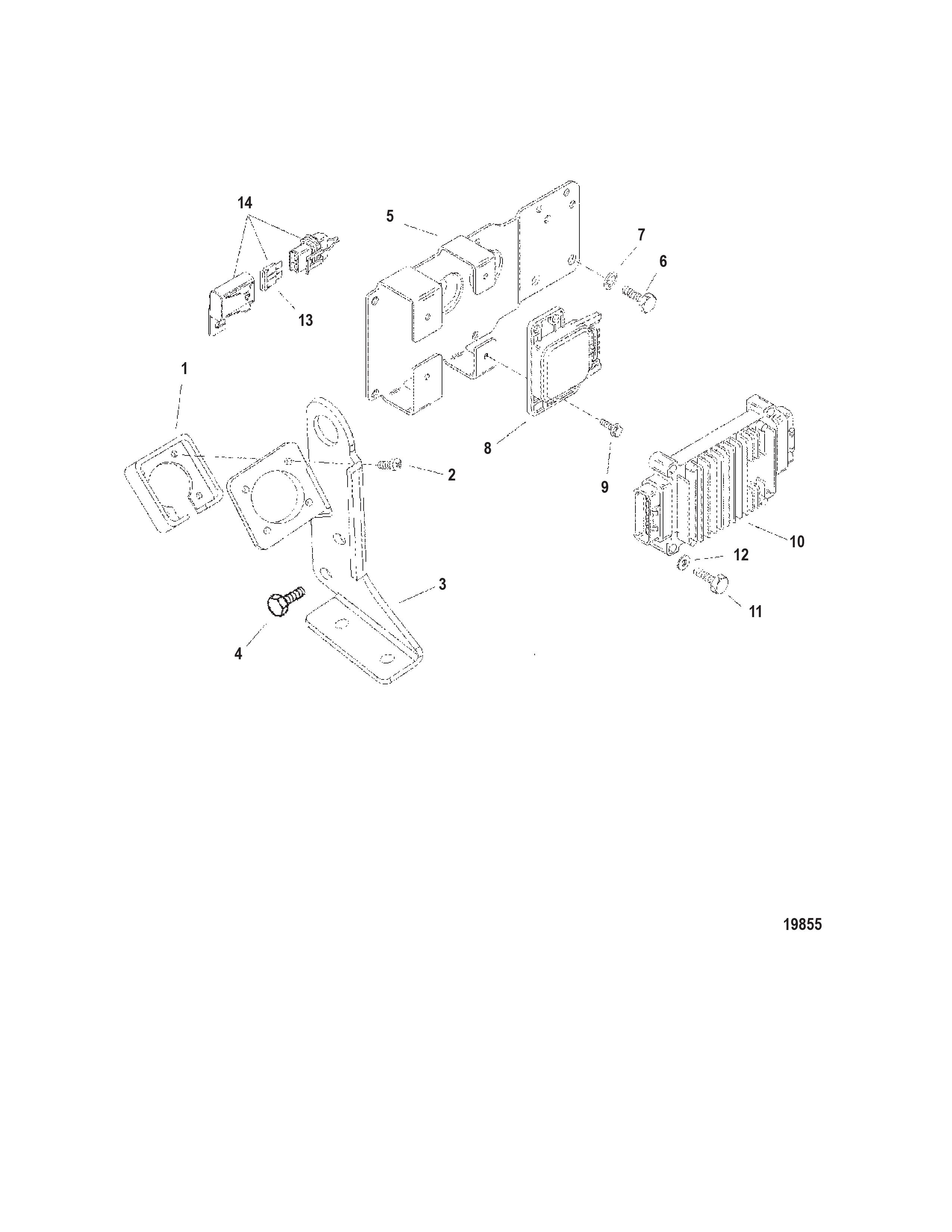

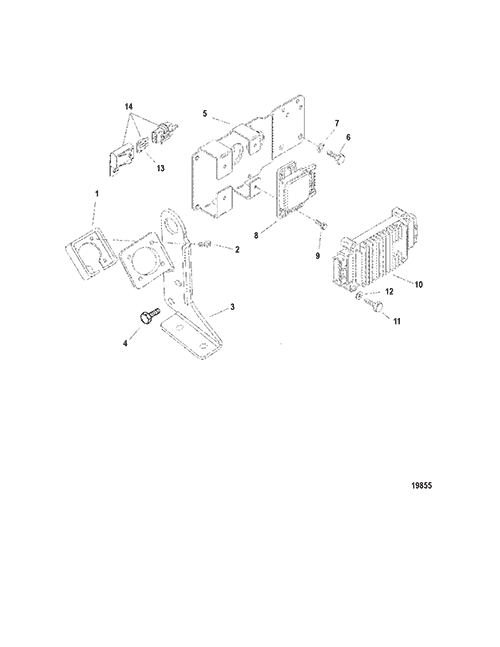

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets (Delco)
- Alternator and Brackets (Mando)
- Alternator Components (Mando)
- Closed Cooling System
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Decals
- Distributor (S-N-0L012009 - 0L359999)
- Distributor (S-N-0L360000 and Up)
- ECM and Electrical Brackets (S-N-0L012009 - 0L359999)
- ECM and Electrical Brackets (S-N-0L360000 and Up)
- Electrical Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold and Exhaust Elbow (2 Piece)
- Exhaust System (Use With 1 Piece Manifold)
- Exhaust System (Use With 2 Piece Manifold))
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Front Cover
- Mercathode Components
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump (Use With Bravo Engines)
- Serpentine Belts
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (Delco-PG260F1)
- Swiss Emissions Parts (BSO1 and SAV1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-26079A2 | PLATE KIT Wire Harness Mount | 1 | ||
| 2 | 0010 | OEM: 525-10-15001 | SCREW (#8-16 x .875) | 4 | ||
| 3 | 0000 | OEM: 525-806816T | BRACKET/LIFTING EYE Harness Mounting | 1 | ||
| 4 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 2 | ||
| 5 | 0000 | 860080T | BRACKET | 1 | ||
| 6 | 0010 | OEM: 525-10-98253 | SCREW (.250-20 x .500) | 2 | ||
| 7 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 2 | ||
| 8 | 0000 | OEM: 525-808014T | MODULE ESC | 1 | ||
| 9 | 0010 | OEM: 525-10-806827 | SCREW (#8-32 x .380) | 2 | ||
| 10 | 0000 | 861001R1 | ECM Engine Control Module | 1 | [1] | |
| 11 | 0010 | OEM: 525-10-76596 | SCREW (.250-20 x 1.250) | 4 | ||
| 12 | 0012 | OEM: 525-12-20533 | WASHER | 4 | ||
| 13 | 0088 | 804642 | FUSE Micro - 15 Ampere | 1 | ||
| 13 | 0088 | 804641 | FUSE Micro - Red - 10 Ampere | 1 | ||
| 14 | 0000 | 805704 | FUSE 15 Ampere | 1 | ||
| 14 | 0000 | 805703 | FUSE 10 Ampere | 1 |
PART NOTES:
[1] - Alternate part numbers:
861001R 1Reman
861001T 1QS
