4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Remote Oil Filter

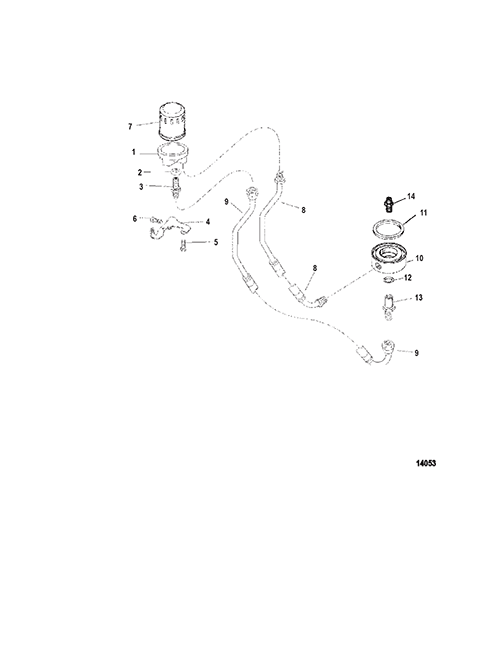

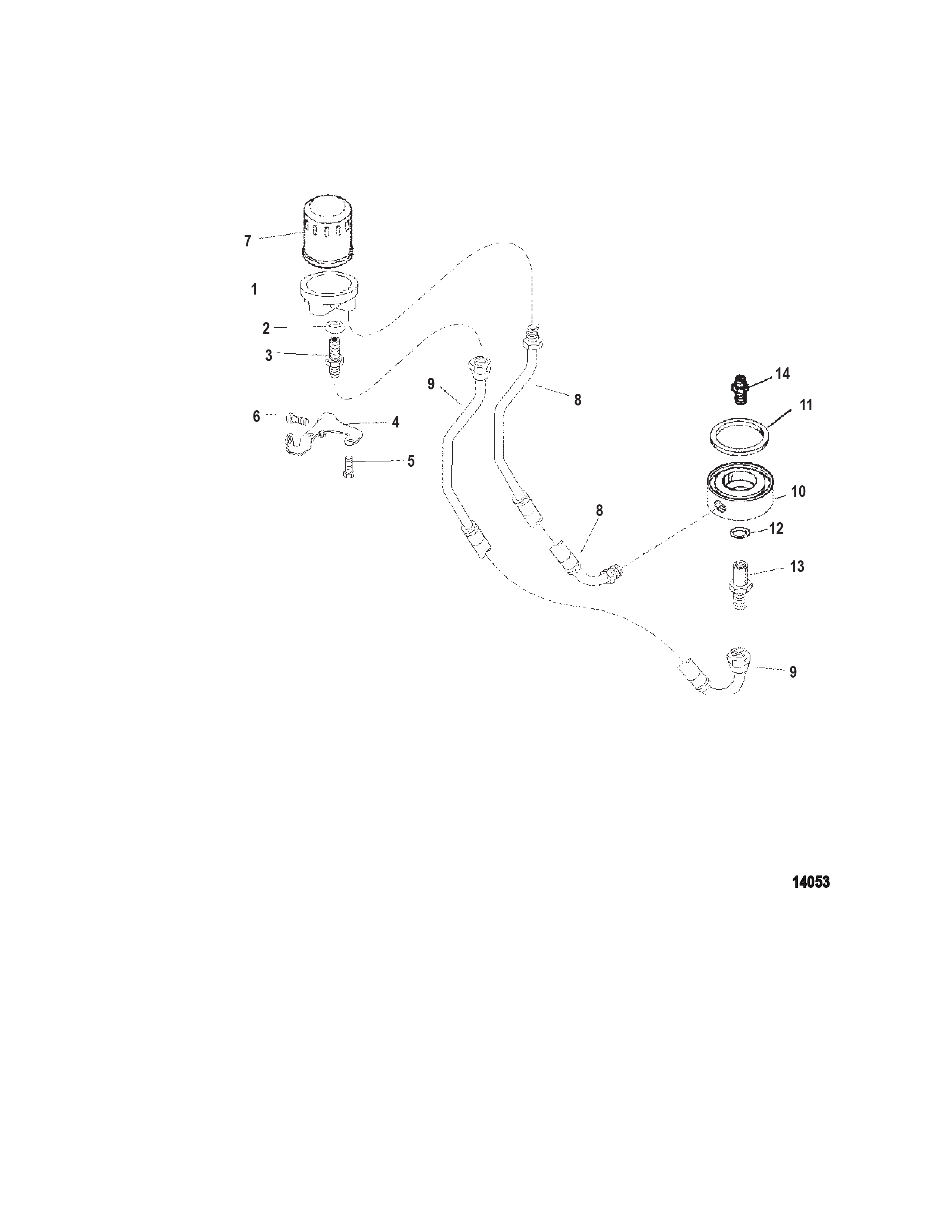

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-35-806329T ADAPTER Oil Filter   1
2 0026 OEM: 525-26-42077 SEAL   1
3 0022 OEM: 525-22-806328 FITTING   1
4 0000 OEM: 525-807459T BRACKET   1
5 0010 OEM: 525-10-98257 SCREW (.312-18 x .500)   2
6 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   1
7 0000 14957 FILTER Oil   1 [1]
8 0032 OEM: 525-32-861233 HOSE Oil   1
9 0032 OEM: 525-32-861234 HOSE Oil   1
10 0000 OEM: 525-860091T ADAPTER   1
11 0027 OEM: 525-27-16779 GASKET   1 [2]
12 0026 OEM: 525-26-42077 SEAL   1
13 0022 OEM: 525-22-860303 FITTING   1
14 0000 11972 ADAPTER   1
- 0027 OEM: 525-27-807756A96 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - Alternate part numbers:

14957Service Part

802885QQS

802885TMPP


[2] - COMPONENT OF ENGINE OVERHAUL GASKET SET 807756A96
