4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Flywheel Housing

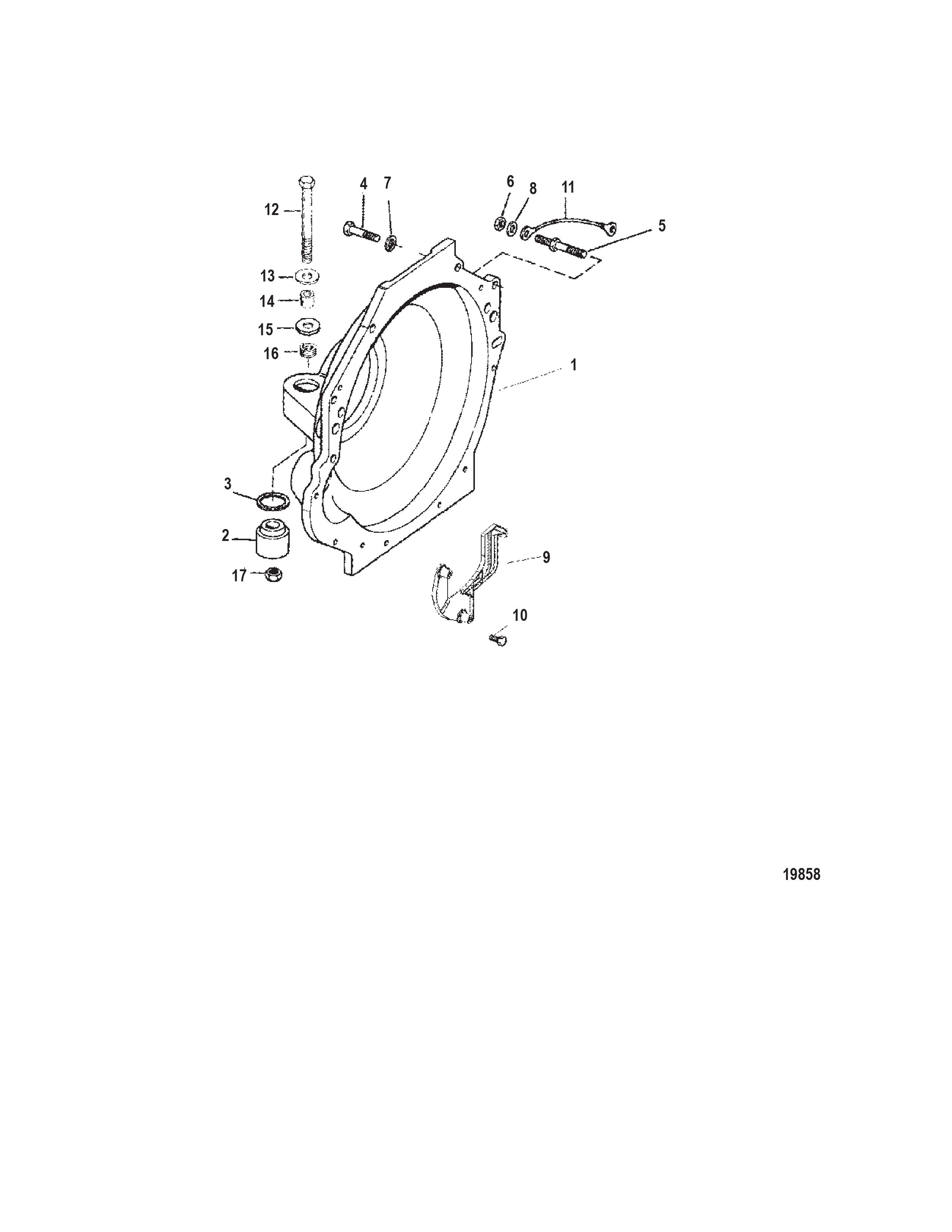

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets (Delco)
- Alternator and Brackets (Mando)
- Alternator Components (Mando)
- Closed Cooling System
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Decals
- Distributor (S-N-0L012009 - 0L359999)
- Distributor (S-N-0L360000 and Up)
- ECM and Electrical Brackets (S-N-0L012009 - 0L359999)
- ECM and Electrical Brackets (S-N-0L360000 and Up)
- Electrical Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold and Exhaust Elbow (2 Piece)
- Exhaust System (Use With 1 Piece Manifold)
- Exhaust System (Use With 2 Piece Manifold))
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Front Cover
- Mercathode Components
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump (Use With Bravo Engines)
- Serpentine Belts
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (Delco-PG260F1)
- Swiss Emissions Parts (BSO1 and SAV1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 12675A5 | HOUSING ASSEMBLY Flywheel | 1 | ||
| 2 | 0000 | 99297A2 | MOUNT Rubber | 2 | ||
| 3 | 0023 | OEM: 525-23-99322, GLM: 700-21050 | SPACER | 2 | ||
| 4 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) | 3 | ||
| 4 | 0010 | OEM: 525-10-32132 | SCREW (.375-16 x 1.750) | 1 | ||
| 4 | 0010 | OEM: 525-10-40001197 | SCREW (M10 x 35) | 3 | [1] | |
| 4 | 0010 | OEM: 525-10-40001203 | SCREW (M10 x 45) | 1 | [1] | |
| 5 | 0016 | OEM: 525-16-64066 | STUD (.375-16 x 2.750) Special | 2 | ||
| 5 | 0016 | OEM: 525-16-861577 | STUD Double Ended Metric (M10) | 2 | [1] | |
| 6 | 0011 | OEM: 525-11-32219 | NUT (.375-16) | 2 | ||
| 6 | 0011 | OEM: 525-11-40125100 | NUT (M10) | 2 | [1] | |
| 7 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 4 | ||
| 8 | 0012 | OEM: 525-12-20572 | WASHER (.390 x .750 x .093) | 2 | ||
| 8 | 0013 | OEM: 525-13-400248 | LOCKWASHER (M10) | 4 | [1] | |
| 9 | 0000 | OEM: 525-807456A2 | COVER | 1 | ||
| 10 | 0010 | OEM: 525-10-76596 | SCREW (.250-20 x 1.250) | 2 | ||
| 11 | 0084 | 62826A6 | CABLE ASSEMBLY Ground (13.00 Inches) Black | 1 | ||
| 12 | 0010 | OEM: 525-10-97934, Sierra: 676-18-3729, GLM: 700-19310 | SCREW (.500-20 x 5.370) Special | 2 | ||
| 13 | 0012 | OEM: 525-12-35777, GLM: 700-19320 | WASHER (.5156 x 1.375 x .125) Aluminum | 2 | ||
| 16 | 0023 | OEM: 525-23-99299, GLM: 700-19340 | SPACER (.520 x .870 x .630) | 2 | ||
| 15 | 0012 | OEM: 525-12-32834, Sierra: 676-18-0681, GLM: 700-30020 | WASHER (.9375 x 1.750 x .172) | 2 | ||
| 16 | 0013 | OEM: 525-13-33734, GLM: 700-19330 | LOCKWASHER (.500) | 2 | ||
| 17 | 0011 | 99298 | NUT (.500-20) | 2 |
PART NOTES:
[1] - METRIC FASTENER CHANGE (S/N 0L320000 AND UP)
