4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Electrical Components

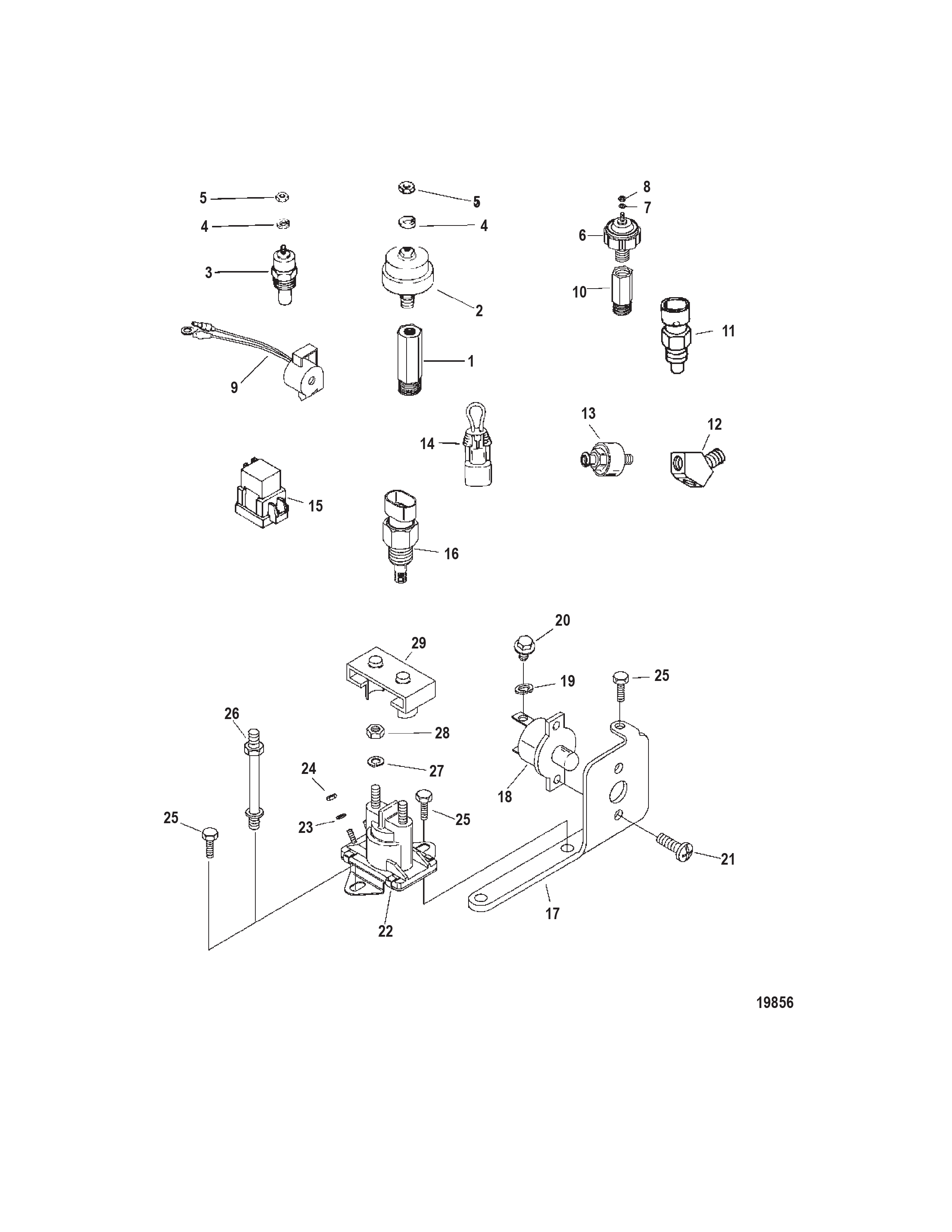

Section Drawing: (Hover or click to view larger)



Ref #Part ClassPart NumberDescriptionCommentsQtyNote
10022OEM: 525-22-805059FITTING 1
20000815425TSENDER ASSEMBLY 1
20000OEM: 525-37293TSENDER ASSEMBLY(DUAL STATION)OPT
3000097257A1SENDER ASSEMBLY Water Temperature 1
30000OEM: 525-49734SENDER(DUAL STATION)OPT
40013OEM: 525-13-26996LOCKWASHER (#10) Stainless Steel 2
50011OEM: 525-11-68219NUT (#10-32) Stainless Steel 2
60087OEM: 530-805605A1SWITCH ASSEMBLYAUDIO WARNING SYSTEM1
70013OEM: 525-13-26996LOCKWASHER (#10) Stainless SteelAUDIO WARNING SYSTEM1
80011OEM: 525-11-68219NUT (#10-32) Stainless SteelAUDIO WARNING SYSTEM1
90000OEM: 525-816492A6ALARM KITAUDIO WARNING SYSTEM1
100022OEM: 525-22-32974FITTING (.125-27) Adaptor 1
110000OEM: 530-805218T, Sierra: 676-18-7600SENSOR 1
120022OEM: 525-22-8067051FITTING Dual 1
130000808015TSENSOR ESC Control 1
140000OEM: 525-805592A1CONNECTOR ASSEMBLY(BRAVO)1
140000OEM: 525-830796A1CONNECTOR ASSEMBLY 1
150000807057TRELAY 2[1]
160000805223TSENSOR 1
170000805368TBRACKET Electrical 1
180088806950BREAKER Circuit - 50 Ampere 1
190010OEM: 525-10-68513SCREW (#10-32 x .375) Stainless Steel 2
200013OEM: 525-13-26996LOCKWASHER (#10) Stainless Steel 2
21001057583SCREW (#8-32 x .375) 2
220089OEM: 530-96158T, Sierra: 676-18-5817, GLM: 700-72400SOLENOID 1
230013OEM: 525-13-26995LOCKWASHER (#8) Stainless Steel 2
240011OEM: 525-11-26419NUT (#8-32) Brass 2
250010OEM: 525-10-805564SCREW (.250-20 x .750)(ALPHA)2
260016OEM: 525-16-805459STUD Mercathode Mounting(BRAVO)1
270013OEM: 525-13-26992LOCKWASHER (.250) Stainless Steel 2
280011OEM: 525-11-94330NUT (.250-20) Brass 2
290085OEM: 525-85-97861INSULATOR 1

PART NOTES:

[1] - METRIC FASTENER CHANGE (S/N 0L320000 AND UP)
