4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Exhaust Manifold (1 Piece)

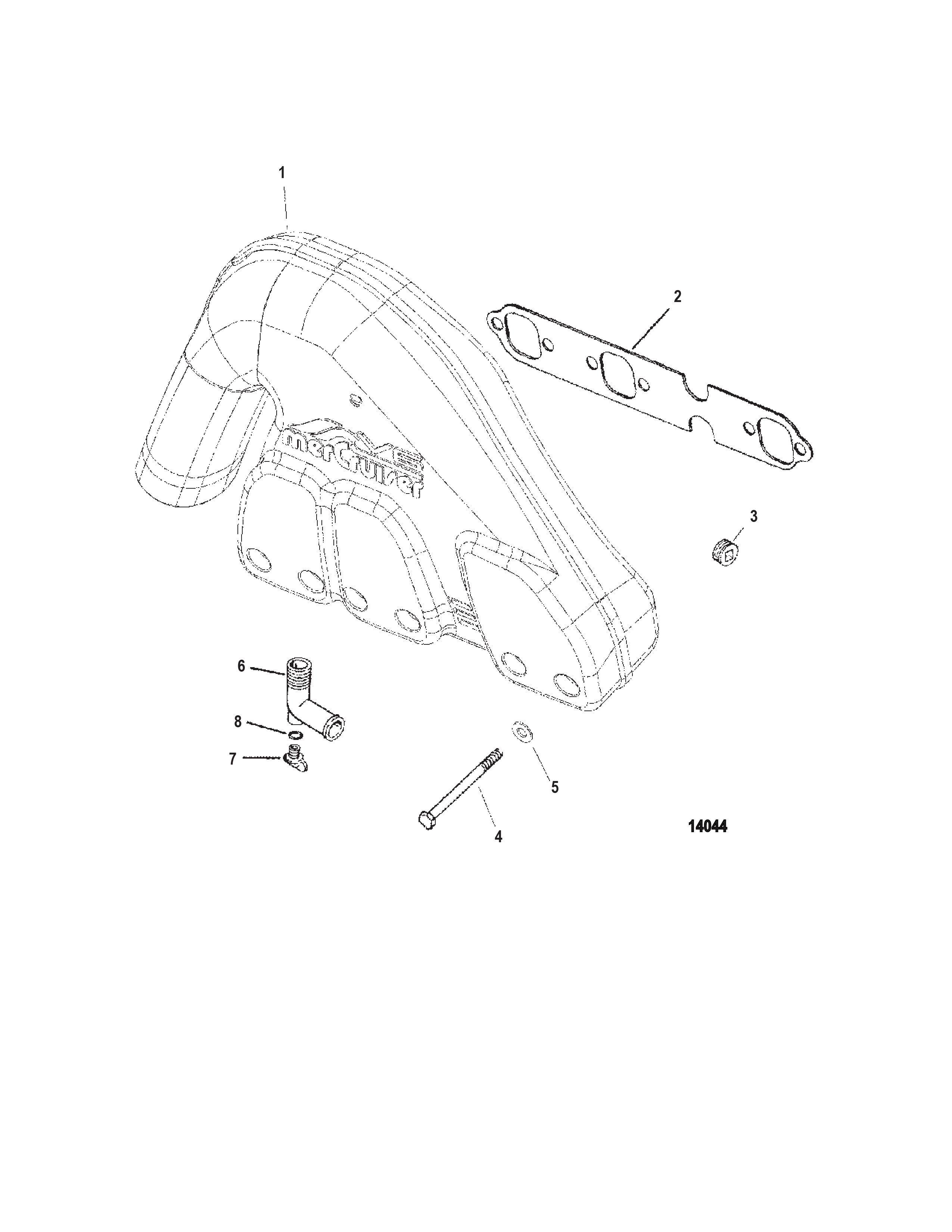

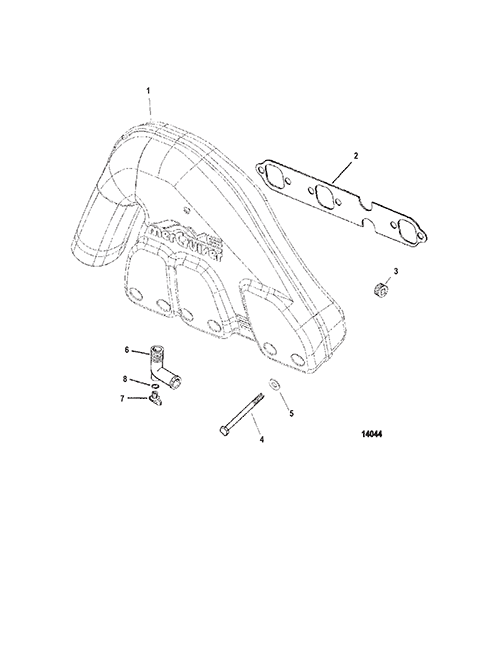

Section Drawing: (Hover or click to view larger)



Ref #Part ClassPart NumberDescriptionCommentsQtyNote
10000807293A2MANIFOLD ASSEMBLY Exhaust(STARBOARD)1
10000807294A3MANIFOLD ASSEMBLY Exhaust(PORT)1
20027OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170GASKET 2[1]
30022861187PLUG (.750-14) Pipe 4
40010OEM: 525-10-53728, GLM: 700-21745SCREW (.375-16 x 4.75) 12
50012OEM: 525-12-46132WASHER 12
60022806926A1ELBOW KIT Drain 2
70022806608A1PLUG KIT (.500-13) Royal Blue 2[2]
8002532509O-RING (.489 x .070) 2[1]
-0027OEM: 525-27-807756A96GASKET SET Engine Overhaul 1

PART NOTES:

[1] - COMPONENT OF ENGINE OVERHAUL GASKET SET 807756A96

[2] - Alternate part numbers:

806608A 1Service Part

806608Q01QS
