4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Exhaust System (Use With 1 Piece Manifold)

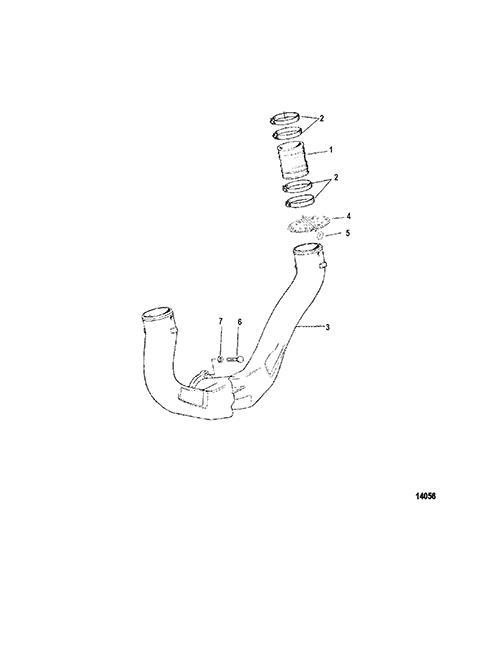

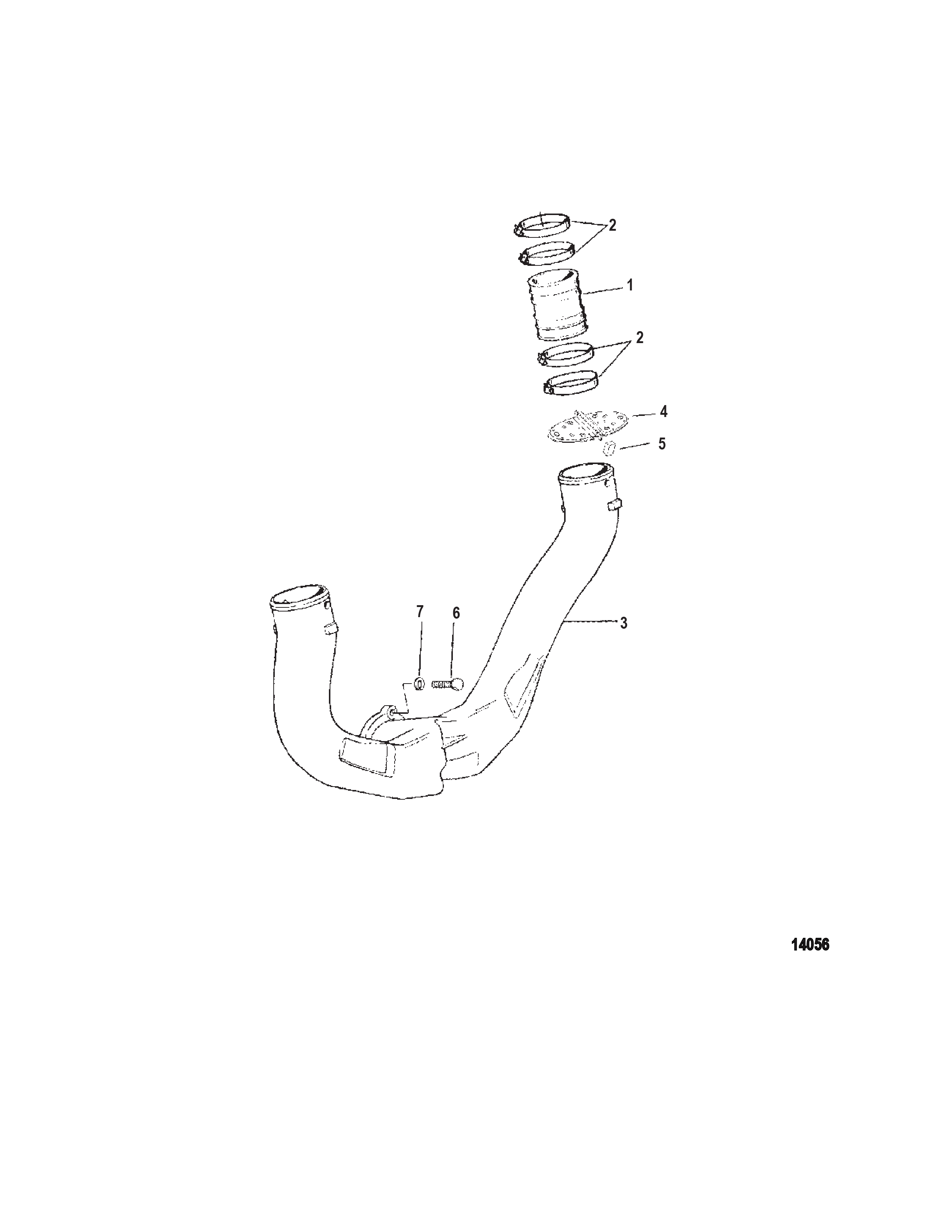

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0032 OEM: 525-32-807458T, Sierra: 676-18-2770 TUBE Exhaust   2
2 0054 OEM: 525-54-815504272 CLAMP Worm Gear   8
3 0000 807130A7 PIPE Exhaust   1
4 0000 OEM: 530-807166A2 SHUTTER Water   2
5 0025 OEM: 525-25-807167 GROMMET   4
6 0010 OEM: 525-10-58640 SCREW (.375-16 x 1.25)   4
7 0013 OEM: 525-13-41471 LOCKWASHER (.375)   4
NS 0019 8079923 COVER Hose Clamp End   AR
