4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Throttle Body

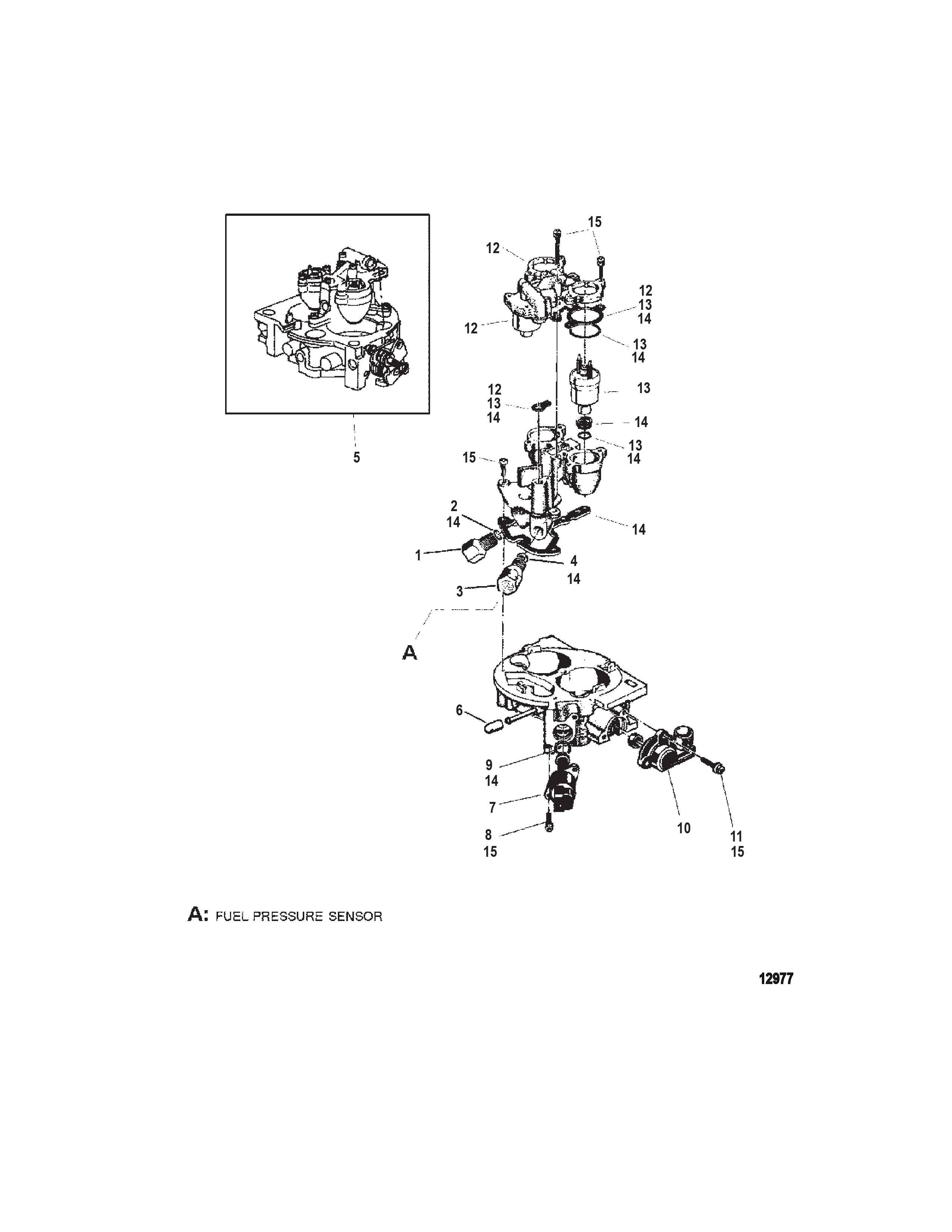

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets (Delco)
- Alternator and Brackets (Mando)
- Alternator Components (Mando)
- Closed Cooling System
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Decals
- Distributor (S-N-0L012009 - 0L359999)
- Distributor (S-N-0L360000 and Up)
- ECM and Electrical Brackets (S-N-0L012009 - 0L359999)
- ECM and Electrical Brackets (S-N-0L360000 and Up)
- Electrical Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold and Exhaust Elbow (2 Piece)
- Exhaust System (Use With 1 Piece Manifold)
- Exhaust System (Use With 2 Piece Manifold))
- Flywheel Housing
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Intake Manifold and Front Cover
- Mercathode Components
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump (Use With Bravo Engines)
- Serpentine Belts
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor (Delco-PG260F1)
- Swiss Emissions Parts (BSO1 and SAV1)
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0022 | OEM: 525-22-806653A1 | FITTING ASSEMBLY (INLET) | 1 | ||
| 2 | 0026 | OEM: 525-26-806655 | SEAL | 1 | [1] | |
| 3 | 0022 | OEM: 525-22-808024A1 | PLUG ASSEMBLY | [0L012009] THRU [0L359999] | 1 | |
| 3 | 0022 | OEM: 525-22-861880A1 | ADAPTOR Fuel Fitting | [0L360000] & Up | 1 | |
| 4 | 0026 | OEM: 525-26-806706 | SEAL | 1 | [1] | |
| 5 | 0000 | 860320A1 | THROTTLE BODY ASSEMBLY | 1 | ||
| 6 | 0000 | 806899 | PLUG | 1 | ||
| 7 | 0000 | OEM: 530-805224A1, Sierra: 676-18-7632-1 | MOTOR ASSEMBLY IAC | 1 | ||
| 8 | 0010 | OEM: 525-10-805400 | SCREW (#8-32 x .500) Stainless Steel | 2 | ||
| 9 | 0025 | OEM: 525-25-808547 | O-RING | 1 | ||
| 10 | 0000 | 805226A1 | SENSOR ASSEMBLY TPS | 1 | ||
| 11 | 0010 | OEM: 525-10-805400 | SCREW (#8-32 x .500) Stainless Steel | 2 | ||
| 12 | 0000 | 852955 | REGULATOR KIT Fuel Pressure | 1 | ||
| 13 | 0000 | OEM: 525-852956A1, Sierra: 676-18-7685 | INJECTOR KIT | 1 | ||
| 14 | 0027 | 852957 | GASKET KIT Overhaul | 1 | ||
| 15 | 0010 | OEM: 525-10-852958 | SCREW KIT | 1 | ||
| 16 | 0000 | 807399T | SENSOR Fuel Pressure | 1 | ||
| 17 | 0022 | OEM: 525-22-29085 | FITTING Elbow (45 Degree) | 1 | ||
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - COMPONENT OF ENGINE OVERHAUL GASKET SET 807756A96
