496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I

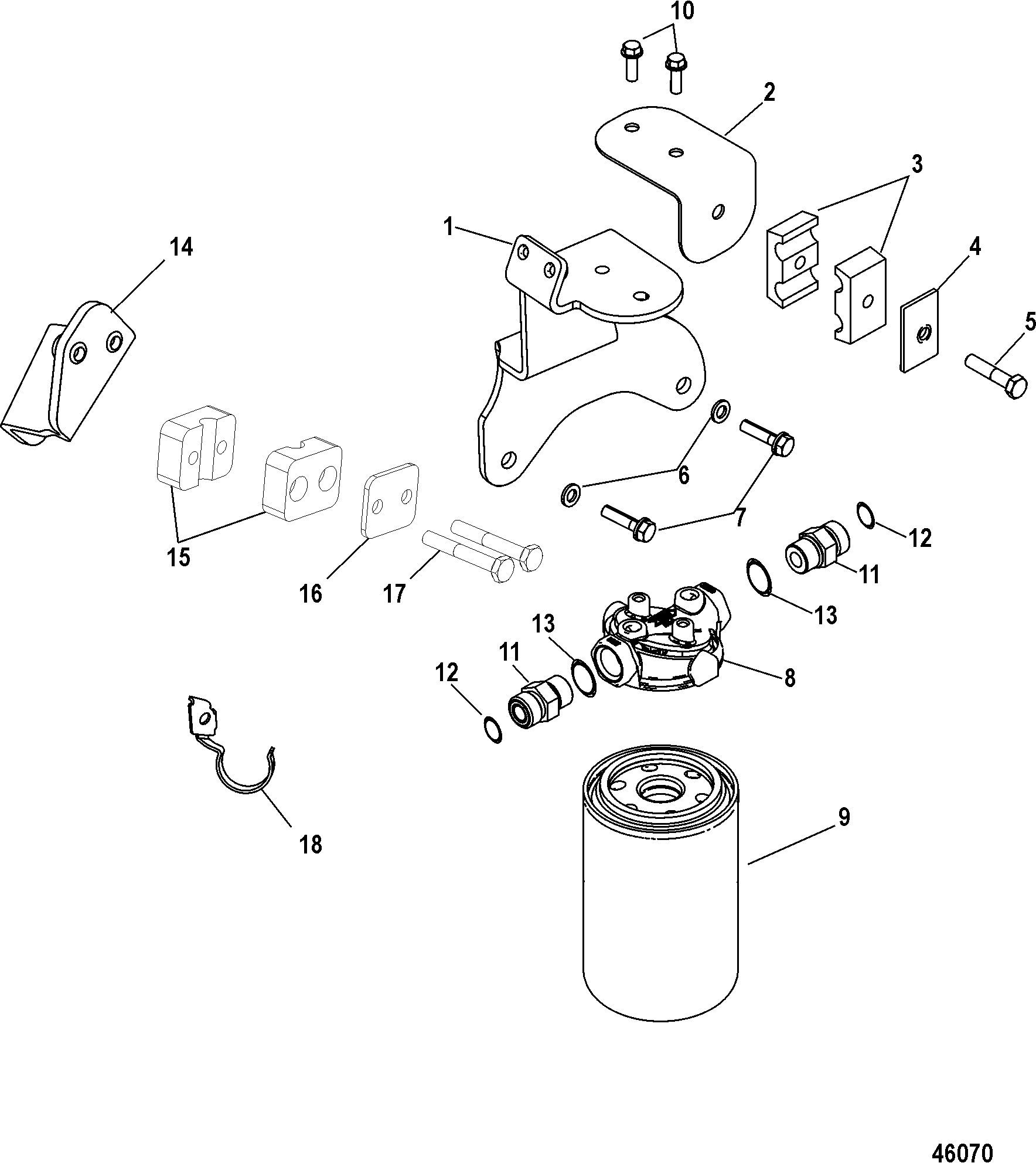

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879172T31 | BRACKET, Oil Filter Mount | 1 | ||||||
| 2 | 879194T49 | BRACKET | 1 | ||||||
| 3 | 8M2009216 | CLAMP | 2 | ||||||
| 4 | 8M2009217 | PLATE | 1 | ||||||
| 5 | 10-69267 | SCREW, (.312-18 x 1.750) | 1 | ||||||
| 6 | 13-72521 | LOCKWASHER, Internal Tooth | 2 | ||||||
| 7 | 10-816585 | SCREW, (.375-18 x .875) | 2 | ||||||
| 8 | 8M8020569 | HEAD, Oil Filter | 1 | ||||||
| 9 | 35-881132T | FILTER | 1 | ||||||
| 10 | 10-901921 | SCREW, (.250-20 x .750) Stainless Steel With Nylon Patch | 2 | ||||||
| 11 | 22-8M2010478 | FITTING | 2 | ||||||
| 12 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 13 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 14 | 8M2006730 | BRACKET, Pressure Hose Mount | 1 | ||||||
| 15 | 54-8M2007315 | CLAMP, Tube | 2 | ||||||
| 16 | 8M2007316 | PLATE, Tube Clamp | 1 | ||||||
| 17 | 10-78038 | SCREW, (.250-20 x 1.75) | 2 | ||||||
| 18 | 8M2008285 | RETAINER, Oil Line | 1 |
