496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Cooling System, Raw Water Components, Port

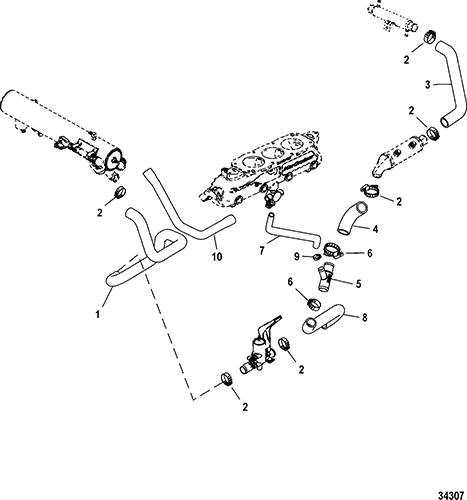

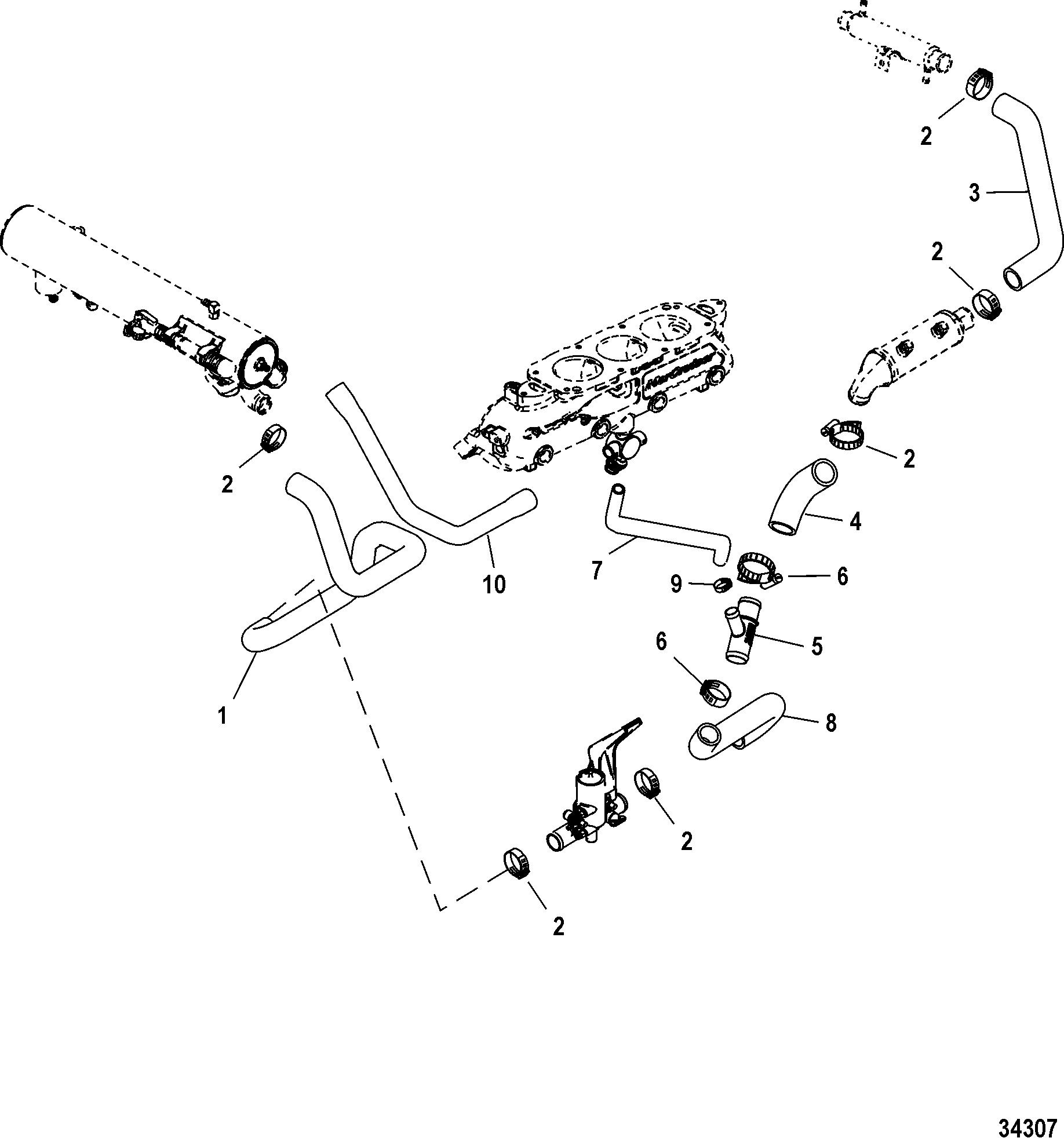

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-863051



HOSE, Water Drain to Heat Exchanger 1
2 54-815504228



CLAMP, Worm Gear AR

3 32-863894



HOSE, Power Steering Cooler to Oil Cooler 1
4 32-8M2004467



HOSE, To Oil Cooler 1

5 22-862993



FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb 1
6 54-815504228



CLAMP, Worm Gear 2
7 32-8M2004488



HOSE, To Drain 1
8 32-8M2004471



HOSE, To Drain Housing 1
9 54-815504216



CLAMP, Worm Gear (1.56 Diameter) 1
10 32-8M2004608



HOSE, Heat Exchanger to Poppet 1
