496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System

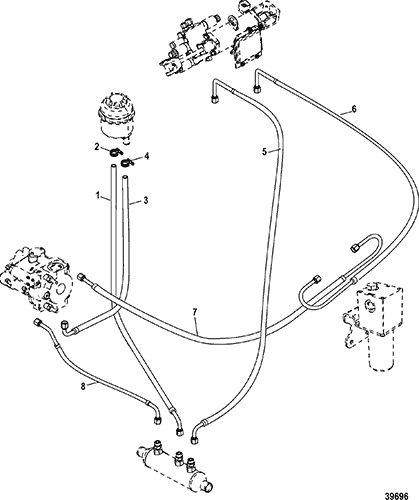

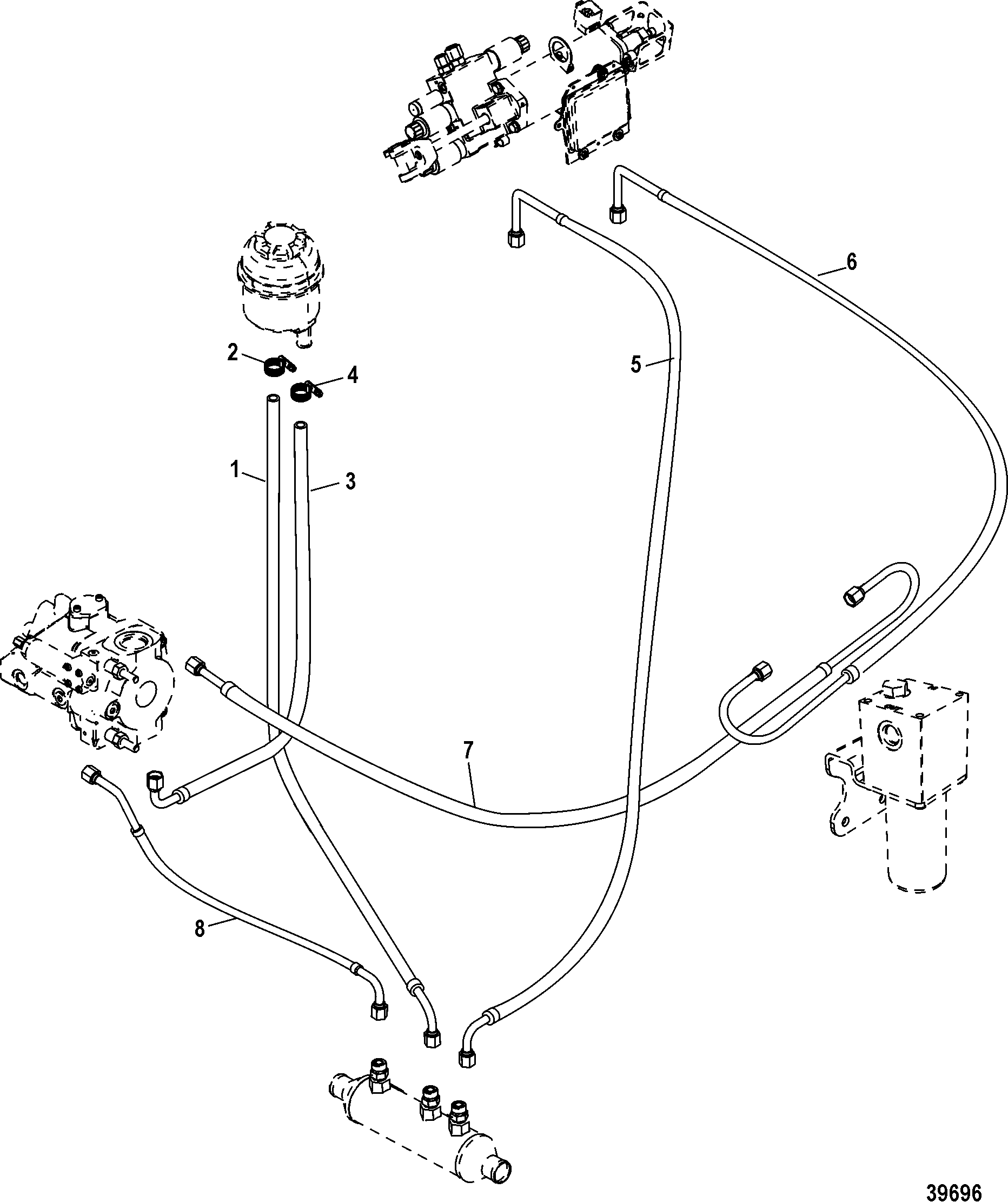

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 32-8M2006304 | HOSE, Reservoir to Cooler | 1 | ||||||
2 | 54-815504104 | CLAMP, (8 - 16 mm) | 1 | 54-8M2001484 | |||||
3 | 32-8M2012143 | HOSE, Reservoir to Pump | 1 | ||||||
4 | 54-815504210 | CLAMP, Worm Gear (16-27 mm) | 1 | 54-8M2001486 | |||||
5 | 8M2016700 | HOSE, Cylinder to Cooler | 1 | ||||||
6 | 8M2016704 | HOSE, Cylinder to Filter | 1 | ||||||
7 | 8M2016702 | HOSE, Pump to Filter | 1 | ||||||
8 | 32-8M2006303 | HOSE, Pump to Cooler | 1 | ||||||
- | 879172A19 | DUST CAP KIT | 1 |
