496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Shift Bracket, Digital Throttle Shift - Axius

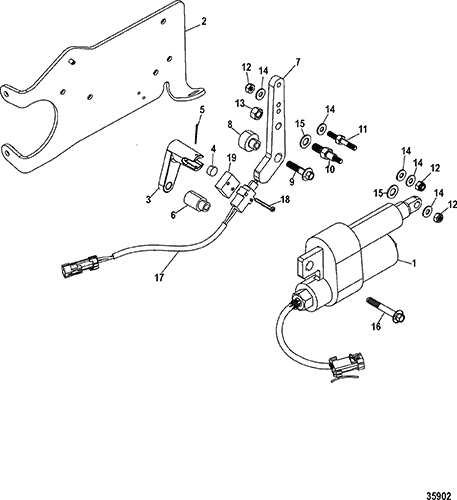

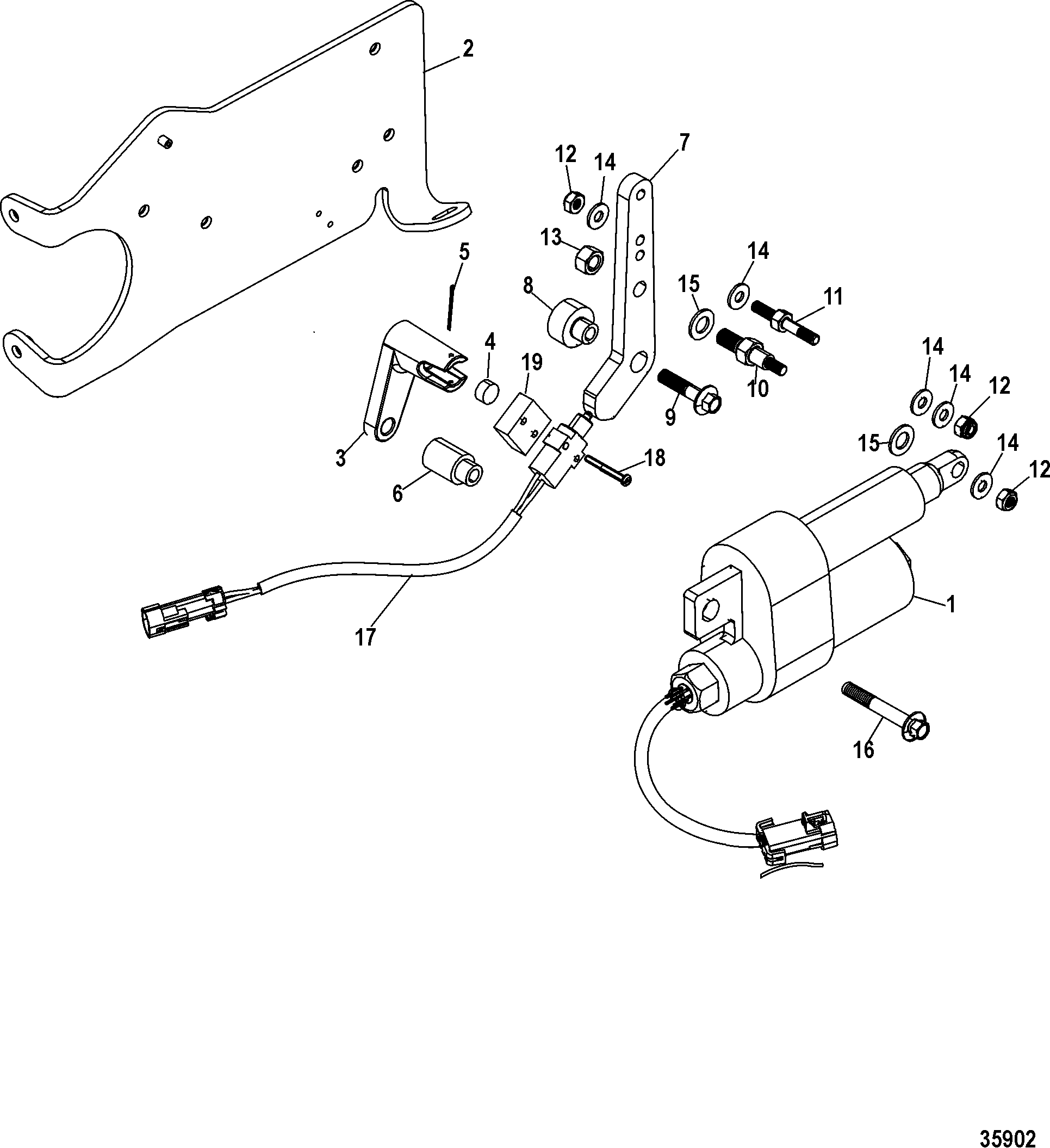

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| - | 862909T02 | SHIFT ACTUATOR ASSEMBLY | 1 | ||||||
| 1 | 879194T46 | SHIFT ACTUATOR | 1 | ||||||
| 2 | 866407 | 700-86640 | BRACKET, Shift Plate | 1 | |||||
| 3 | 864616 | RETAINER, Shift Cable | 1 | ||||||
| 4 | 23-98828 | SPACER | 1 | ||||||
| 5 | 18-36002 | COTTER PIN | 1 | ||||||
| 6 | 23-863133 | SPACER, Actuator | 1 | ||||||
| 7 | 8631341 | LEVER, Shift Arm | 1 | ||||||
| 8 | 23-863132 | SPACER, Shift Arm | 1 | ||||||
| 9 | 10-4010735 | SCREW, (M8 x 35) | 1 | ||||||
| 10 | 16-864361 | STUD | 1 | ||||||
| 11 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 12 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) Stainless Steel | 3 | |||||
| 13 | 11-46335 | NUT, (.375-24) | 1 | ||||||
| 14 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 5 | ||||||
| 15 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 2 | ||||||
| 16 | 10-40011155 | SCREW, (M8 x 55) Stainless Steel | 1 | ||||||
| 17 | 87-8M0052939 | SWITCH | 1 | 87-889514A01 | |||||
| 18 | 10-865076 | SCREW, (6-32 x 1.25) | 2 | ||||||
| 19 | 23-864386 | SPACER, Switch | 1 |
