496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Engine Cover

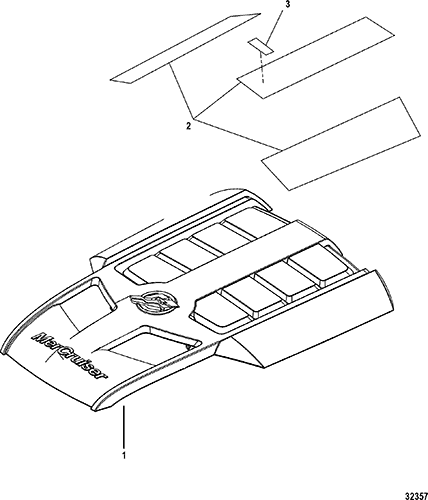

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879288T19 | COVER, Engine | 1 | ||||||
| 2 | 37-879288A41 | DECAL SET, 496 Base | 1 | ||||||
| 2 | 37-879288A42 | DECAL SET, 496 High Output | 1 | ||||||
| 2 | 37-879288A23 | DECAL SET, 496 Base with Seacore | 1 | ||||||
| 2 | 37-879288A48 | DECAL SET, 496 High Output with Seacore | 1 | ||||||
| 2 | 37-879172A09 | DECAL SET, 496 Base Axius | 1 | ||||||
| 2 | 37-879172A10 | DECAL SET, 496 H.O. Axius | 1 | ||||||
| 2 | 37-879172A04 | DECAL SET, 496 Base Axius Seacore | 1 | ||||||
| 2 | 37-879172A05 | DECAL SET, 496 H.O. Axius Seacore | 1 | ||||||
| 3 | 37-8M2007500 | DECAL, Emission Control | 1 |
