496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Drive Lube Reservoir Assembly

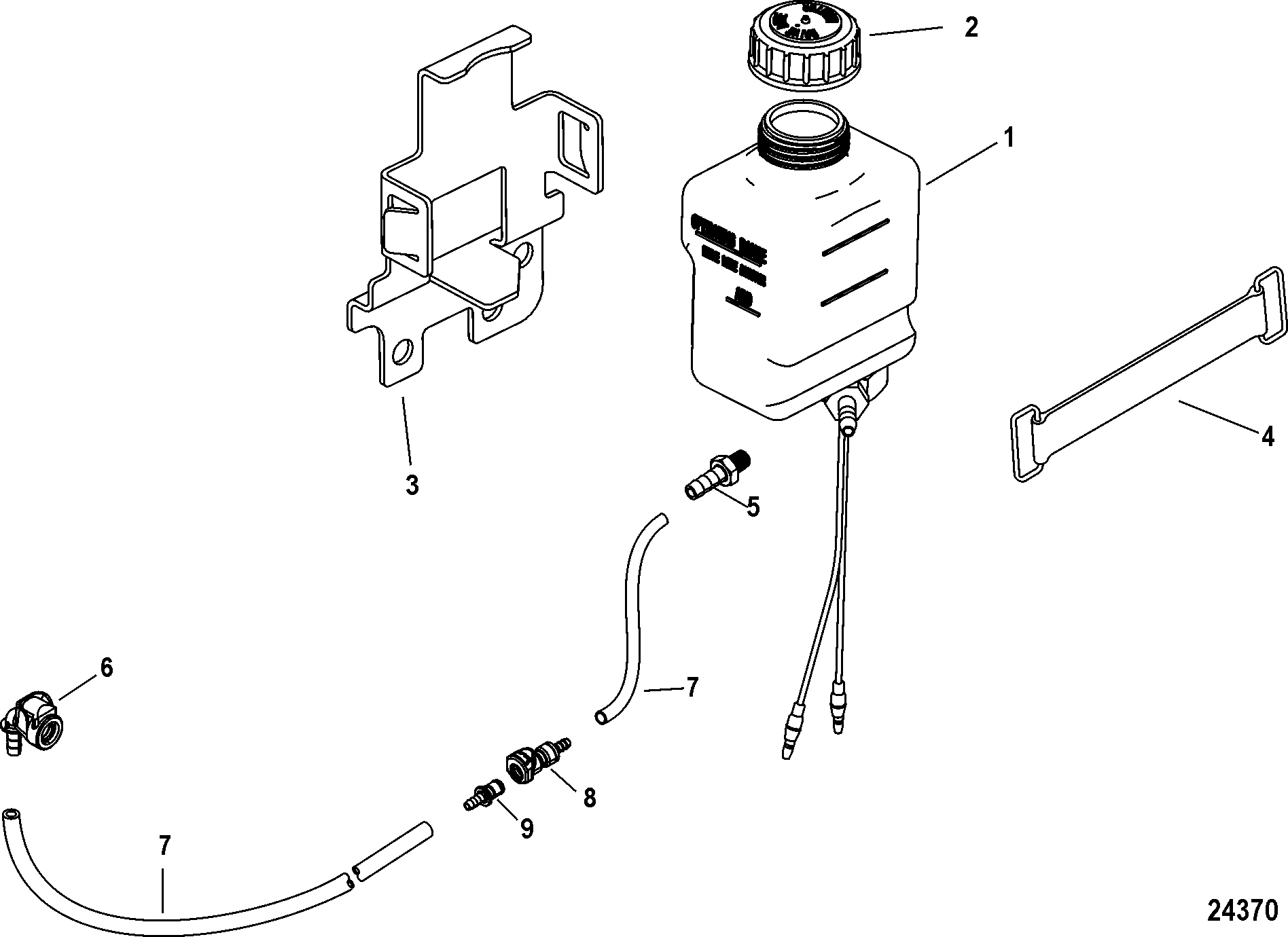

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806193A46 | LUBE BOTTLE, Drive Lube | 1 | ||||||
| 2 | 36-8067271 | CAP, Drive Lube Monitor, Drive Lube Reservoir | 1 | ||||||
| 3 | 860065A1 | BRACKET KIT, Oil Bottle, Drive Lube Reservoir | 1 | ||||||
| 4 | 808023T | STRAP, Bracket | 1 | ||||||
| 5 | 22-808624 | CONNECTOR, Lube Reservoir | 1 | ||||||
| 6 | 22-861163 | QUICK CONNECTOR, (90 Degree), To Transom | 1 | ||||||
| 7 | 32-8M0062600 | HOSE, (54.00 Inches Bulk) | 1 | 32-1940971 | |||||
| 8 | 22-865379 | FITTING, Female, Quick Connect | 1 | ||||||
| 9 | 22-865191 | FITTING, Male, Quick Connect | 1 |
