496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Throttle Body, Mechanical Throttle-Shift
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System

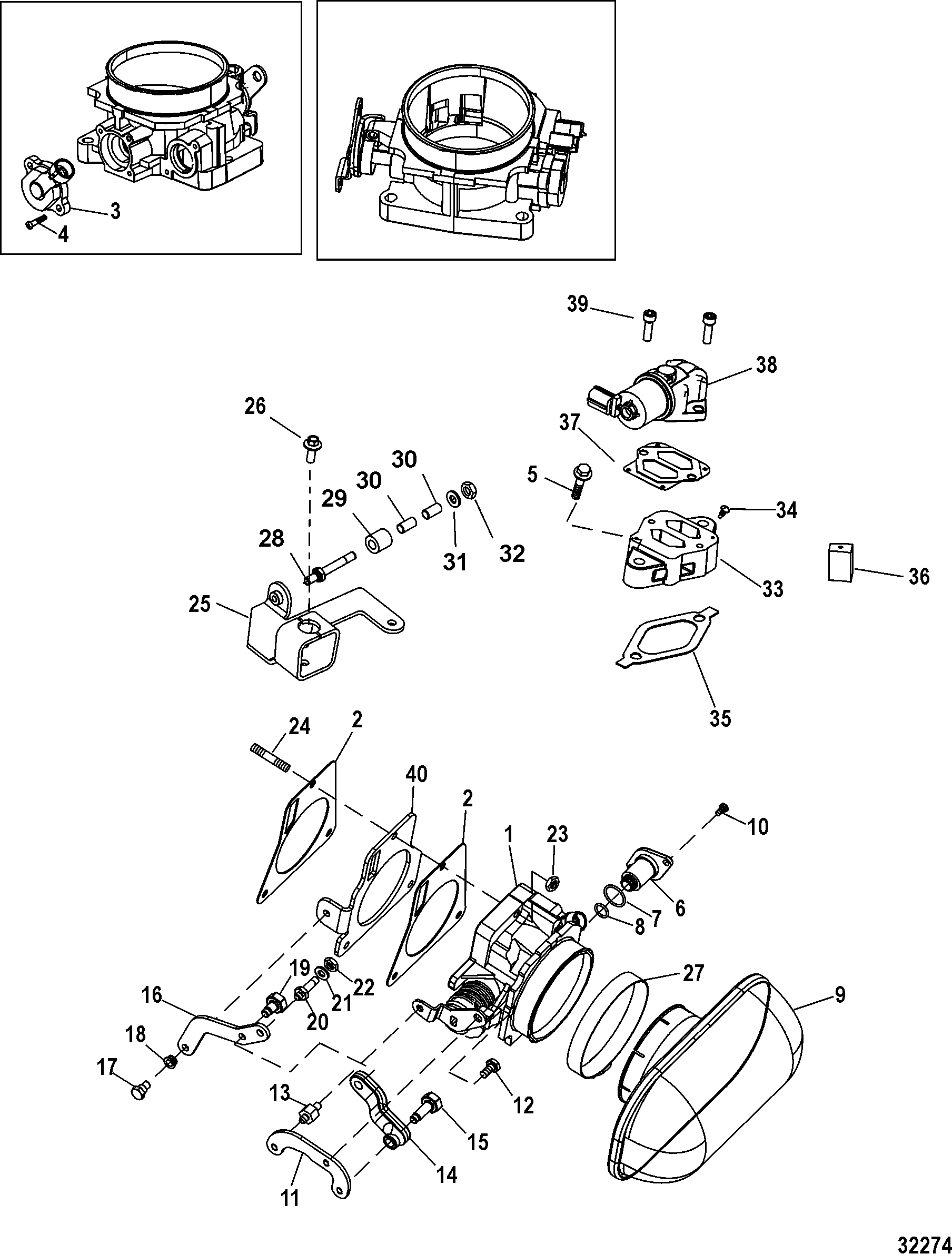

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 879288T50 | THROTTLE BODY ASSEMBLY, Base and High Output | 1 | ||||||
2 | 27-863215 | GASKET, Throttle Body | 2 | 3,2 | |||||
3 | 853678T | SENSOR, TPS, Includes O-Ring | 1 | ||||||
4 | 10-853680 | SCREW KIT | 1 | This Part is No Longer Available | |||||
5 | 10-40011151 | SCREW, (M8 x 35) Stainless Steel | 2 | ||||||
6 | 862999002 | PLUG, Adaptor, Intake Air Control | 1 | ||||||
7 | 25-808547 | O-RING | 1 | ||||||
8 | 25-863006 | O-RING | 1 | ||||||
9 | 863085T | FLAME ARRESTOR | 1 | ||||||
10 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
11 | 863135 | LEVER, Throttle | 1 | ||||||
12 | 10-64014 | SCREW, (.250-28 x .500) | 1 | ||||||
13 | 16-863345 | STUD, Special | 1 | ||||||
14 | 863214 | LINK | 1 | ||||||
15 | 805533 | SCREW, (M8 x 35) | 1 | ||||||
16 | 8M2001692 | ARM, Cable | 1 | 8631541 | |||||
17 | 10-863380 | SCREW, Special | 1 | ||||||
18 | 23-97896 | BUSHING, Flanged | 1 | ||||||
19 | 805398 | PIN, Primary Linkage | 1 | ||||||
20 | 16-805526 | STUD, (.250-28 x 1.540) | 1 | ||||||
21 | 12-20533 | WASHER | 1 | ||||||
22 | 11-8267139 | NUT, (.250-28) | 1 | ||||||
22 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | (SEACORE) | |||||
23 | 11-863289 | NUT | 3 | ||||||
24 | 16-802561 | STUD | 3 | ||||||
25 | 8M2005404 | BRACKET, Throttle Cable Attaching | 1 | ||||||
26 | 10-4006731 | SCREW, (M6 x 16) | 1 | ||||||
27 | 54-863393 | CLAMP, Flame Arrestor | 1 | ||||||
28 | 16-97477A3 | STUD KIT | 1 | ||||||
28 | 16-866641A01 | STUD KIT | 1 | (SEACORE) | |||||
29 | NSS | NOT SOLD SEPARATE, Spacer, Special | 1 | This Part is not sold separately | |||||
30 | 23-31866 | SPACER, (.256 x .313 x .625) | 2 | ||||||
31 | 12-20533 | WASHER | 1 | ||||||
32 | 11-8267139 | NUT, (.250-28) | 1 | ||||||
32 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | (SEACORE) | |||||
33 | 879288A47 | PLATE ASSEMBLY, Mounting - Intake Air Control | 1 | ||||||
34 | NSS | NOT SOLD SEPARATE, Rivet | 2 | This Part is not sold separately | |||||
35 | 27-863285 | GASKET, Air Valve | 1 | 3,2 | |||||
36 | 35-865266 | FILTER | 1 | ||||||
37 | NSS | NOT SOLD SEPARATE, Gasket, Idle Air Valve | 1 | This Part is not sold separately | |||||
38 | 862998 | VALVE, Idle Air | 1 | ||||||
39 | 10-4010620 | SCREW, (M6 x 20) Stainless Steel | 2 | ||||||
40 | 862996 | BRACKET, Throttle Linkage | 1 |
