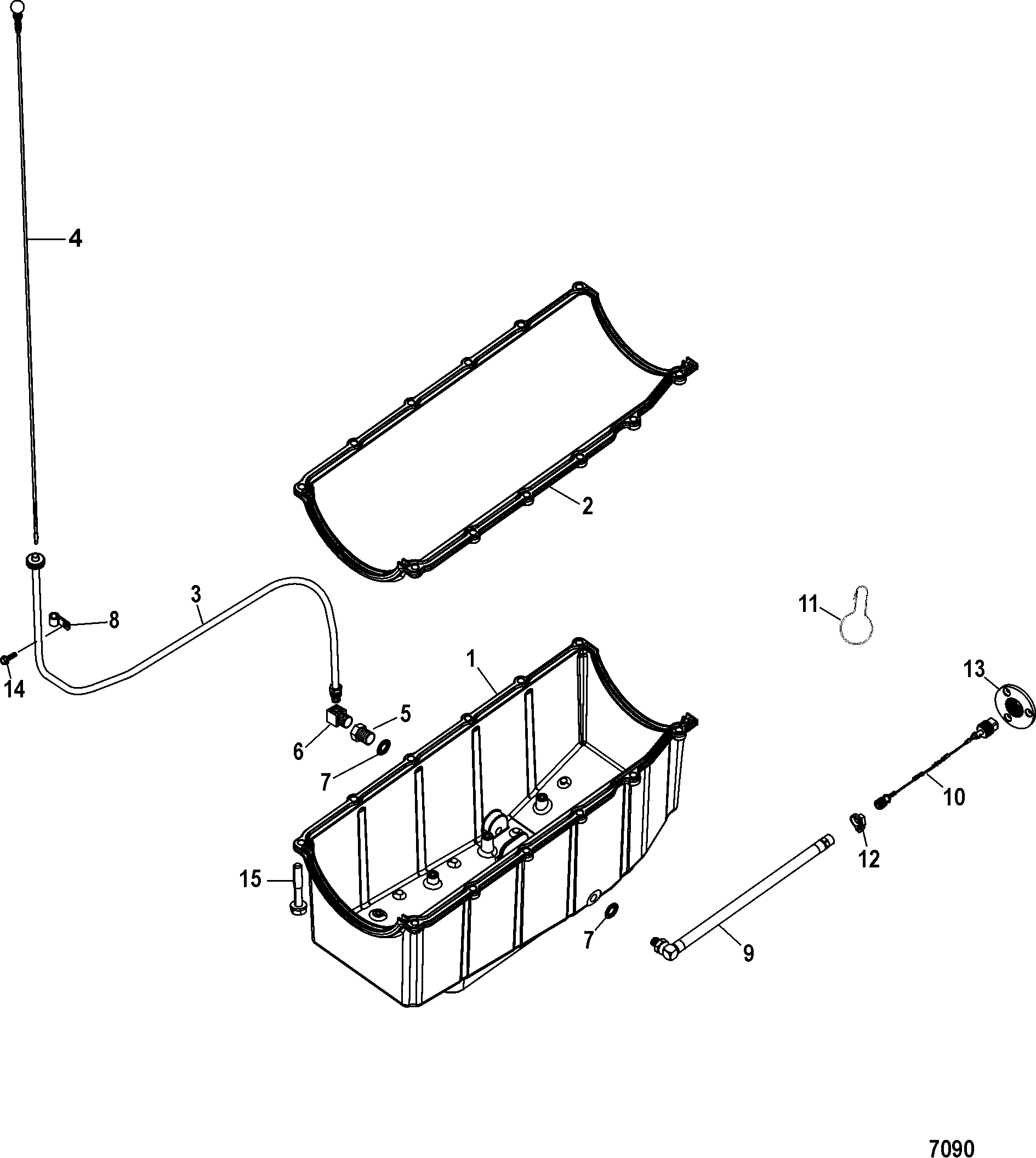

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
Untitled Document
| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
881653001 |
|
|
|
|
PAN, Oil |
1 |
881653 |
4,5,22,23 |
| NS |
883922 |
|
|
|
|
BAFFLE, Oil Pan |
1 |
|
22,4,5,23 |
| NS |
10-883923 |
|
|
|
|
SCREW, (M6 x 20) |
AR |
|
4,5,22,23 |
| 2 |
27-881612 |
|
676-9-61510 |
|
|
GASKET, Oil Pan |
1 |
|
3,4,5,22 |
| 3 |
863408 |
|
|
|
|
TUBE, Engine Oil Gauge |
1 |
|
(MCM) |
| 4 |
86194210 |
|
|
|
|
GAUGE, Oil Level |
1 |
|
|
| 5 |
863389A01 |
|
|
|
|
FITTING, Oil Guage Tube |
1 |
22-863389 |
|
| 6 |
22-19697 |
|
|
|
|
ELBOW |
1 |
|
|
| 7 |
27-49955 |
|
676-9-60104 |
700-30370 |
|
GASKET, Drain |
2 |
|
2,3 |
| 8 |
54-65653 |
|
|
|
|
CLIP |
1 |
|
|
| 9 |
32-865281 |
|
|
|
|
HOSE, Oil Drain |
1 |
|
|
| 9 |
32-865280 |
|
|
|
|
HOSE, Oil Drain |
1 |
|
(Jackshaft Models) |
| NS |
25-805063 |
|
|
|
|
O-RING, (.301 x .070) |
2 |
|
|
| 10 |
862827 |
|
|
|
|
TETHER ASSEMBLY |
1 |
|
|
| 11 |
54-805524 |
|
|
|
|
CLIP |
1 |
|
|
| 12 |
54-863481 |
|
|
|
|
CLAMP |
1 |
|
|
| 13 |
862777 |
|
|
|
|
FLANGE, Drain |
1 |
|
|
| 14 |
10-4000328 |
|
|
|
|
SCREW, (M6 x 16) |
1 |
|
|
| 15 |
10-898101392 |
|
|
|
|
BOLT, (M8 x 30) |
13 |
|
|
