496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Starter and Alternator

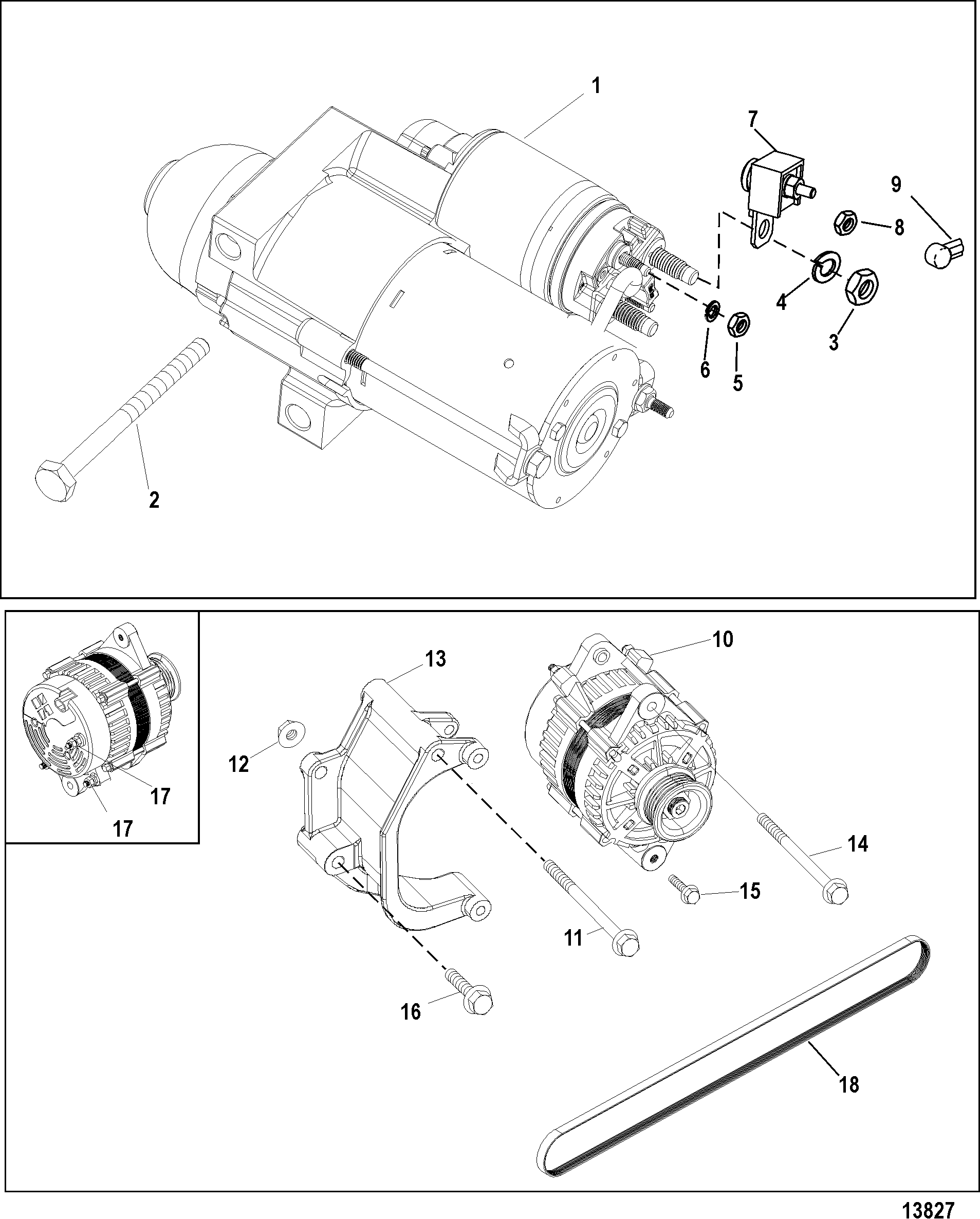

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | SEI # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | 620-5399M | 676-9-15907 | 602-10099HD | 602-10099MD | STARTER MOTOR ASSEMBLY | 1 | 50-864340A2 | |
| 2 | 10-861788 | SCREW, (M10 x 1.5), Special | 2 | ||||||
| 3 | 11-806949 | NUT, (M8-1.5) | 1 | ||||||
| 4 | 13-400247 | LOCKWASHER, (M8) | 1 | ||||||
| 5 | 11-400211 | NUT, (M5) Stainless Steel | 1 | ||||||
| 6 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 7 | 88-79023A91 | 676-9-15510 | FUSE ASSEMBLY, 90 Ampere | 1 | |||||
| 8 | 11-8267119 | NUT, (.250-28) | 1 | ||||||
| 9 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | |||||
| 10 | 863077T | 676-9-19111 | 602-20131 | 602-20119 | ALTERNATOR ASSEMBLY, Black | 1 | |||
| 11 | 10-824459110 | SCREW, (M8 x 110) Stainless Steel | 1 | ||||||
| 12 | 11-401368 | NUT, (M8) Stainless Steel | 1 | ||||||
| 13 | 865594T01 | BRACKET, Alternator | 1 | ||||||
| 14 | 10-40108120 | SCREW, (M10 x 120) Hex Flange - Stainless Steel | 1 | ||||||
| 15 | 10-88552660 | SCREW, (M8 x 60) | 1 | ||||||
| 16 | 10-4010835 | SCREW, (M10 x 35) Hex Flange - Stainless Steel | 1 | ||||||
| 17 | 11-400212 | NUT, (M6) Stainless Steel | 2 | ||||||
| 18 | 57-865635Q01 | BELT, Serpentine | 1 | 57-865635001 |
