496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Cooling System, Raw Water Components, Port (AXIUS)

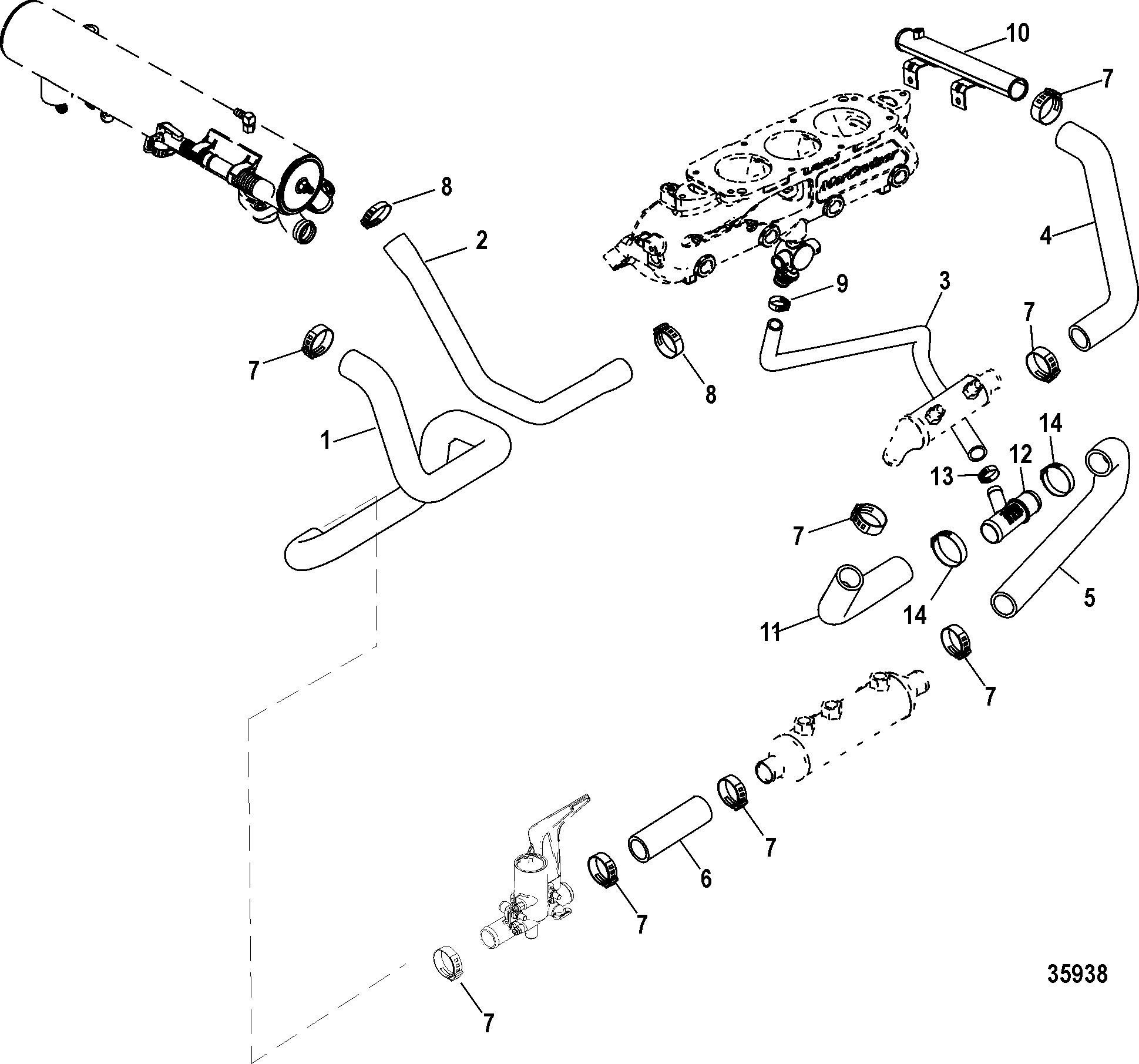

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M2007279 | HOSE, Water Drain to Heat Exchanger | 1 | ||||||
| 2 | 32-864488 | HOSE, Heat Exchanger to Port Exhaust Manifold Drain | 1 | ||||||
| 3 | 32-4285069 | HOSE, (44.00 Inches Bulk), Manifold to Y-Fitting | 1 | Port, Cut to 14 Inch Length | |||||
| 4 | 32-863894 | HOSE, Connector Tube to Oil Cooler | 1 | ||||||
| 5 | 32-8M2012661 | HOSE, Steering Cooler to Y-Fitting | 1 | ||||||
| 6 | 32-8M2007278 | HOSE, Steering Cooler to Drain Actuator | 1 | ||||||
| 7 | 54-815504228 | CLAMP, Worm Gear | 8 | ||||||
| 8 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 2 | ||||||
| 9 | 54-815504212 | CLAMP, Worm Gear | 2 | ||||||
| 10 | 879312T65 | TUBE | 1 | ||||||
| 11 | 32-8M2012662 | HOSE, Y-Fitting to Oil Cooler | 1 | ||||||
| 12 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 1 | ||||||
| 13 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 1 | ||||||
| 14 | 54-815504228 | CLAMP, Worm Gear | 2 |
