496 Mag EC Base Model - Serial 1A066166 Thru 1A350440 - Intake Manifold

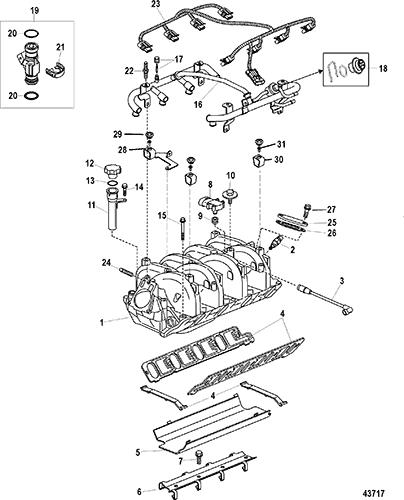

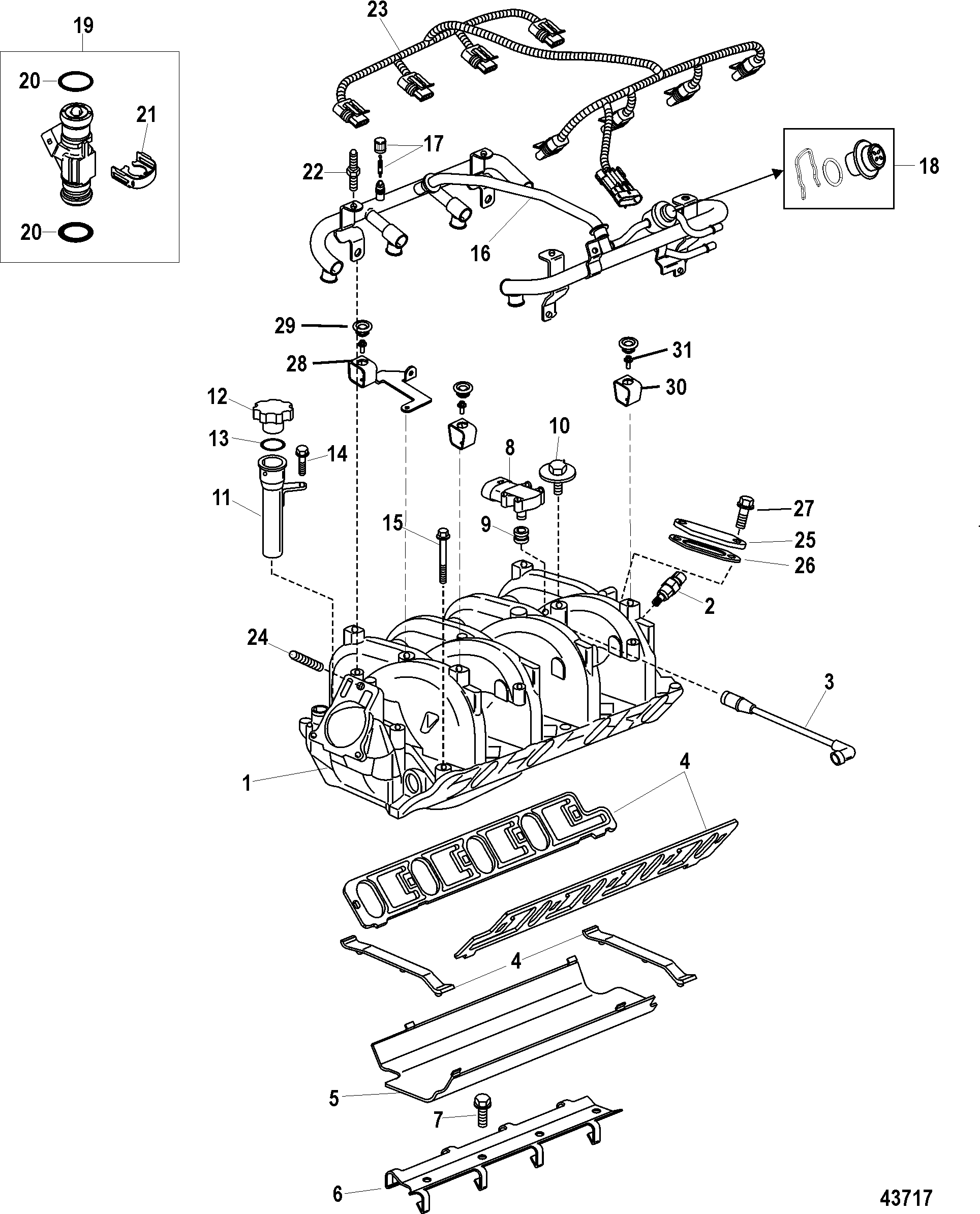

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- AXIUS Steering, Fluid Filter (HP) 1A349743 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A349742 and Below, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (HP Filter) 1A349743 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A349742 and Below, Gen I
- AXIUS Steering, Oil Cooler and Bracket, Gen I
- Block, Camshaft and Pistons
- Block, Crankshaft, Oil Pump and Front Cover
- Cool Fuel System, SN 1A349419 and Below
- Cool Fuel System, SN 1A349420 and Above
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Port (AXIUS)
- Cooling System, Raw Water, Starboard (1A349419 and Below)
- Cooling System, Raw Water, Starboard (1A349420 and Above)
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components - Bravo (1A349419 and Below)
- Fuel Module Components - Bravo (1A349420 and Above)
- Gasket Set Components, Engine
- Gasket Set Components, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Lifting Brackets and Wiring Harness
- Mercathode Kit
- Oil Pan and Drain System
- PCM and Bracket
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle Shift - Axius
- Shift Bracket, Mechanical Shift
- SmartCraft Sensor and Harnesses
- Starter and Alternator
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump and Motor Components
- Trim Pump Assembly, Complete
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0064079 | MANIFOLD | 1 | 881690001 | 4,5 | ||||
| 2 | 805223T | SENSOR | 1 | ||||||
| 3 | 32-881734 | HOSE, Fuel Pressure Regulator | 1 | 4,5 | |||||
| 4 | 27-895235 | GASKET SET, Intake Manifold and Valley | 1 | 2,4,5 | |||||
| 5 | 881689 | SHIELD, Oil Splash | 1 | 4,5 | |||||
| 6 | 8M0050807 | RETAINER, Valve Lifter Guide | 1 | 845755 | 4,5 | ||||
| 7 | 10-881570 | SCREW, (M8 x 25 MM) | 7 | 4,5 | |||||
| 8 | 8M0054726 | SENSOR, Manifold Air Pressure | 1 | 881731 | 4,5 | ||||
| 9 | 25-881733 | SEAL, Manifold Air Pressure Sensor | 1 | 4,5 | |||||
| 10 | 10-881646 | SCREW, (M6 x 20) | 1 | 4,5 | |||||
| 11 | 864996 | TUBE, Oil Fill | 1 | 4,5 | |||||
| 12 | 864997 | CAP, Oil Fill Tube | 1 | 4,5 | |||||
| 13 | NSS | NOT SOLD SEPARATE, Seal, Oil Fill Cap | 1 | This Part is not sold separately 4,5 | |||||
| 14 | 10-881645 | BOLT, (M6 x 20), Oil Fill Tube | 1 | 4,5 | |||||
| 15 | 10-895234001 | SCREW, (M6 x 73) | 10 | 4,5 | |||||
| 16 | 881691002 | FUEL RAIL, Fuel Injection | 1 | 4,5 | |||||
| 17 | 22-802631 | VALVE AND CAP KIT, Fuel Pressure Port | 1 | 4,5 | |||||
| 18 | 8M0046753 | REGULATOR KIT, Fuel Pressure | 1 | ||||||
| 19 | 881693001 | INJECTOR, 2 hole pintle | 8 | 4,5 | |||||
| 20 | 25-881694001 | SEAL KIT | 1 | 4,5 | |||||
| 21 | 881695001 | RETAINER KIT, Fuel Injector | 1 | 4,5 | |||||
| 22 | 16-881968001 | STUD, Fuel Injection Rail | 2 | 4,5 | |||||
| 23 | 84-889503 | HARNESS ASSEMBLY, Fuel Injection Wiring | 1 | 4,5 | |||||
| 24 | 16-802561 | STUD, Throttle Body | 3 | 4,5 | |||||
| 25 | NA | NOT AVAILABLE, BLOCK OFF PLATE | 1 | Digital Throttle Shift | |||||
| 26 | 27-863285 | GASKET | 1 | Digital Throttle Shift | |||||
| 27 | 10-898101392 | SCREW, (M8 x 30) | 2 | 10-881586 | Digital Throttle Shift | ||||
| 28 | 8M2005404 | BRACKET | 1 | Mechanical | |||||
| 29 | 25-8M2001671 | GROMMET | 4 | ||||||
| 30 | 8M2003380 | BRACKET | 3 | Mechanical | |||||
| 30 | 8M2003380 | BRACKET | 4 | Digital Throttle | |||||
| 31 | 10-4010612 | SCREW, (M6 x 12) Stainless Steel | 5 |
