Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
NS |
84-8M0046180 |
|
|
|
|
HARNESS ASSEMBLY, Engine |
1 |
84-865457T07 |
Mechanical Throttle and Shift |
NS |
84-865457T08 |
|
|
|
|
HARNESS ASSEMBLY, Engine |
1 |
|
Digital Throttle and Shift |
NS |
879288T87 |
|
|
|
|
HARNESS ASSEMBLY, Engine |
1 |
|
Digital Throttle and Shift (Axius Gen I) |
NS |
84-865677T01 |
|
|
|
|
HARNESS ASSEMBLY, Transom |
1 |
|
|

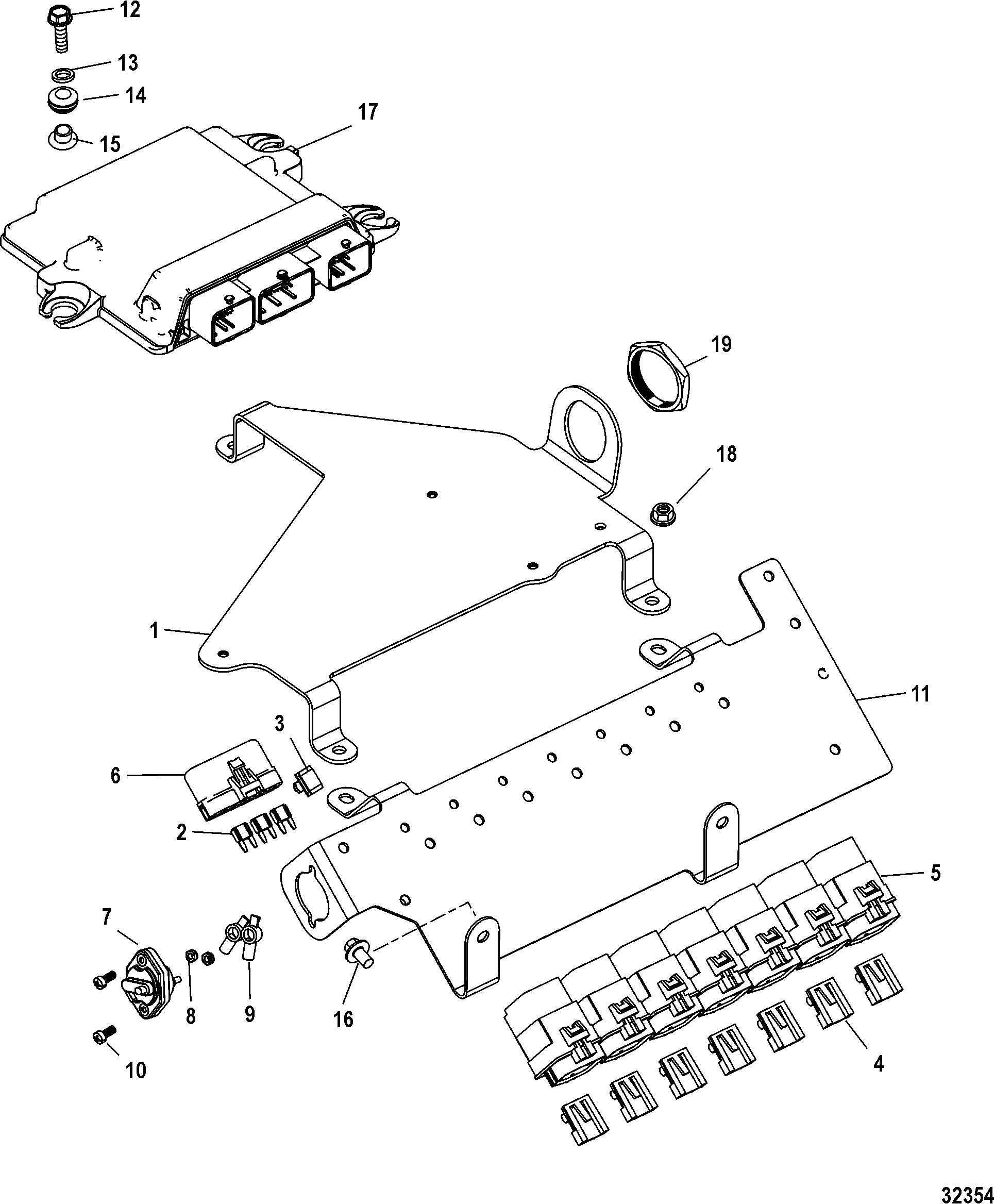

1 |
879288T60 |
|
|
|
|
BRACKET, PCM |
1 |
|
|
2 |
88-83296910 |
|
|
|
|
FUSE, Mini - Red - 10 Ampere |
5 |
|
Axius Gen I |
2 |
88-83296915 |
|
|
|
|
FUSE, Mini - Blue - 15 Ampere |
2 |
|
|
2 |
88-832969T20 |
|
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
3 |
88-83296920 |
|
3 |
54-804352 |
|
|
|
|
CLIP, Fuse Block Mounting |
1 |
|
|
4 |
86-865205 |
|
|
|
|
CLIP |
6 |
|
Mechanical Throttle and Shift |
4 |
86-865205 |
|
|
|
|
CLIP |
7 |
|
Digital Throttle and Shift |
5 |
882751A04 |
|
|
|
|
RELAY ASSEMBLY |
6 |
|
Mechanical Throttle and Shift |
5 |
882751A04 |
|
|
|
|
RELAY ASSEMBLY |
7 |
|
Digital Throttle and Shift |
6 |
831960 |
|
|
|
|
COVER, Fuse |
1 |
|
Digital Throttle and Shift |
6 |
858754 |
|
|
|
|
COVER, Fuse |
1 |
|
Mechanical Throttle and Shift |
7 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-865827T |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
8 |
11-826709106 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
9 |
85-89919 |
|
|
|
|
BOOT, Insulator - Black |
2 |
|
|
10 |
10-830861 |
|
|
|
|
SCREW, (#8-32 x .625) |
2 |
|
|
11 |
866399T |
|
|
|
|
BRACKET, Relay, Connector |
1 |
|
|
12 |
10-82130025 |
|
|
|
|
SCREW, (M6 x 25) |
3 |
|
|
13 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
14 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
15 |
23-856954 |
|
|
|
|
BUSHING, Electrical Plate |
3 |
|
|
16 |
10-4010610 |
|
|
|
|
SCREW, (M6 x 10) Stainless Steel, To Collector |
1 |
|
|
17 |
879288T51 |
|
|
|
|
PCM, Propulsion Control Module, Base |
1 |
|
Mechanical Throttle and Shift |
17 |
879288T55 |
|
|
|
|
PCM, Propulsion Control Module, Base |
1 |
|
Digital Throttle and Shift |
17 |
879194T10 |
|
|
|
|
PCM, Propulsion Control Module, Base |
1 |
|
Axius Gen I |
17 |
879288T52 |
|
|
|
|
PCM, Propulsion Control Module, High Output |
1 |
|
Mechanical Throttle and Shift |
17 |
879288T56 |
|
|
|
|
PCM, Propulsion Control Module, High Output |
1 |
|
Digital Throttle and Shift |
17 |
879194T14 |
|
|
|
|
PCM, Propulsion Control Module, High Output |
1 |
|
Axius |
18 |
11-4002030 |
|
|
|
|
NUT, (M8) |
2 |
|
|
18 |
11-400213 |
|
|
|
|
NUT, (M8) Stainless Steel |
2 |
|
(SEACORE) |
19 |
11-889664 |
|
|
|
|
NUT, (1.500-18) Black Nylon |
1 |
|
|
