454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Alternator (Prestolite)

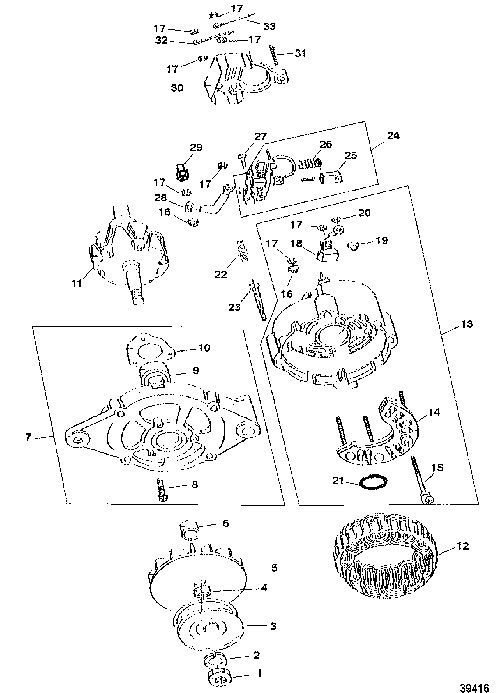

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 805884T



ALTERNATOR 1

1 11-809136



NUT 1

2 13-809137



LOCKWASHER 1

3 809134



PULLEY 1

4 23-809135



SPACER 1

5 809139



FAN ASSEMBLY 1

6 23-809140



SPACER 1

7 809151



BRACKET ASSEMBLY 1

8 10-809154



SCREW 3

9 30-809153



BEARING 1

10 809152



RETAINER 1
This Part is No Longer Available
11 809150



ROTOR 1
This Part is No Longer Available
12 809133T



STATOR 1 809133
13 809155



BRACKET ASSEMBLY 1
This Part is No Longer Available
14 809162



RECTIFIER 1

15 10-809160



SET SCREW 1
This Part is No Longer Available
16 809146



MOLD 2
This Part is No Longer Available
17 11-809143



NUT 8
This Part is No Longer Available
18 809161



CONDENSER 1

19 809158



MOLD 1

20 11-809157



NUT 1

21 25-809156



O-RING 1

22 10-809159



BOLT 1
This Part is No Longer Available
23 10-809138



BOLT 4
This Part is No Longer Available
24 811883T



REGULATOR ASSEMBLY 1 809163
25 811884



BRUSH 2 809164
26 24-809165



SPRING 2

27 10-809141



SCREW 2
This Part is No Longer Available
28 809142



TERMINAL 1
This Part is No Longer Available
29 809149



CAP 2

30 809144



COVER 1
This Part is No Longer Available
31 10-809145



SET SCREW 1
This Part is No Longer Available
32 84-809148



LEAD WIRE 1
This Part is No Longer Available
33 84-809147



LEAD WIRE 1
This Part is No Longer Available
