454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Vapor Separator Tank, Sn and Below (See Note)

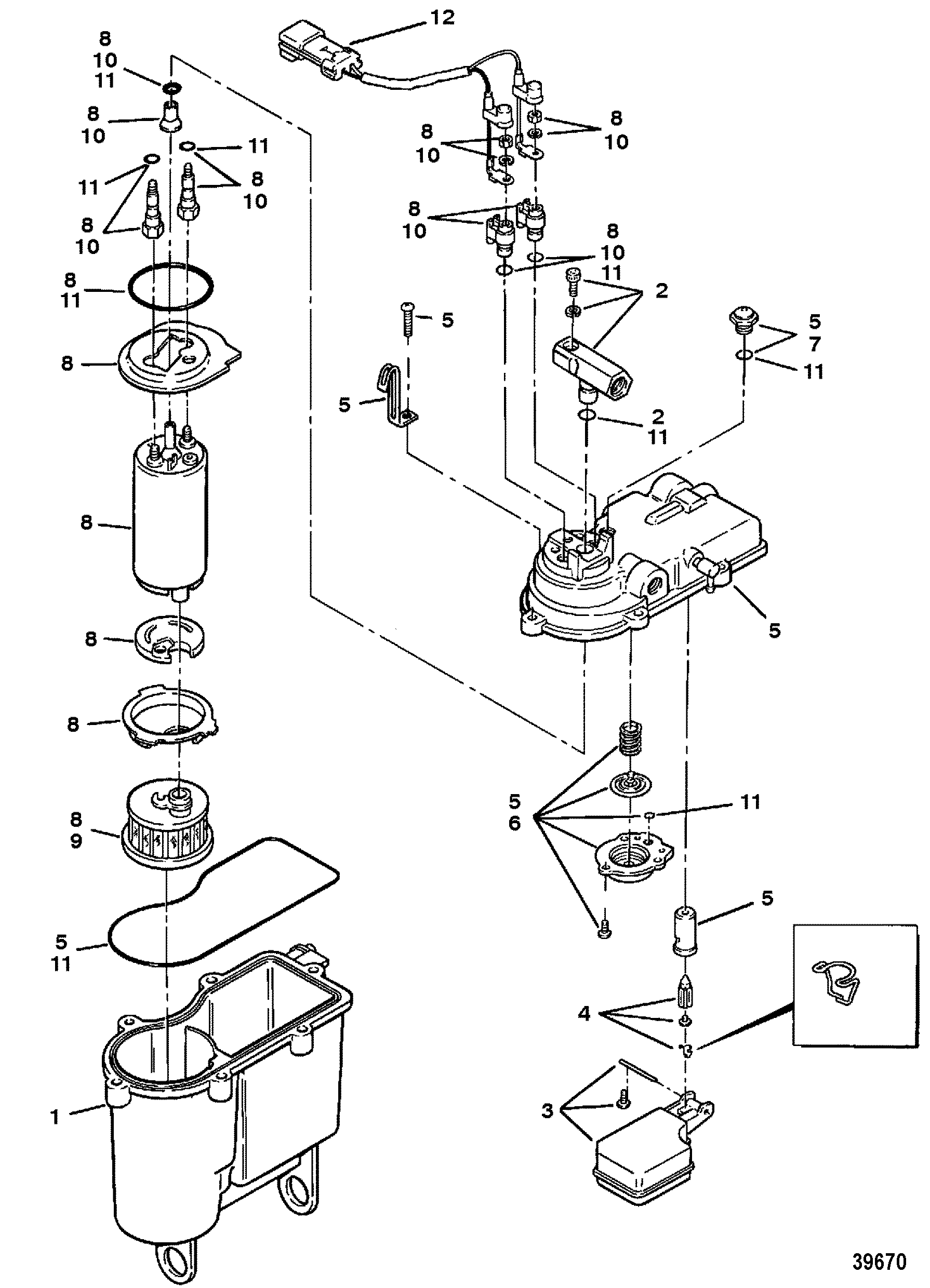

Section Drawing: (Hover or click to view larger)

Untitled Document
29 454 EFI - Serial Number 0F130438 & Below
30 502 EFI - Serial Number 0F128962 & Below
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806787A3



TANK ASSEMBLY, Vapor Separator 1 805415A2
2 808502



L-JOINT KIT 1   This Part is No Longer Available
3 808506



FLOAT KIT 1

4 808507



FLOAT VALVE KIT 1

5 808508A01



TOP COVER KIT 1 808508
6 808509



DIAPHRAGM KIT 1

7 808501



PLUG KIT 1   This Part is No Longer Available
8 808505T01



PUMP KIT 1 808505
9 808504T1



STRAINER KIT, Fuel 1 8085041 No longer made, limited availability
10 808503



CONNECTOR KIT, Electrical 1

11 808500



O-RING KIT 1

12 808510



HARNESS KIT 1   This Part is No Longer Available
