454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Cylinder Head And Rocker Cover

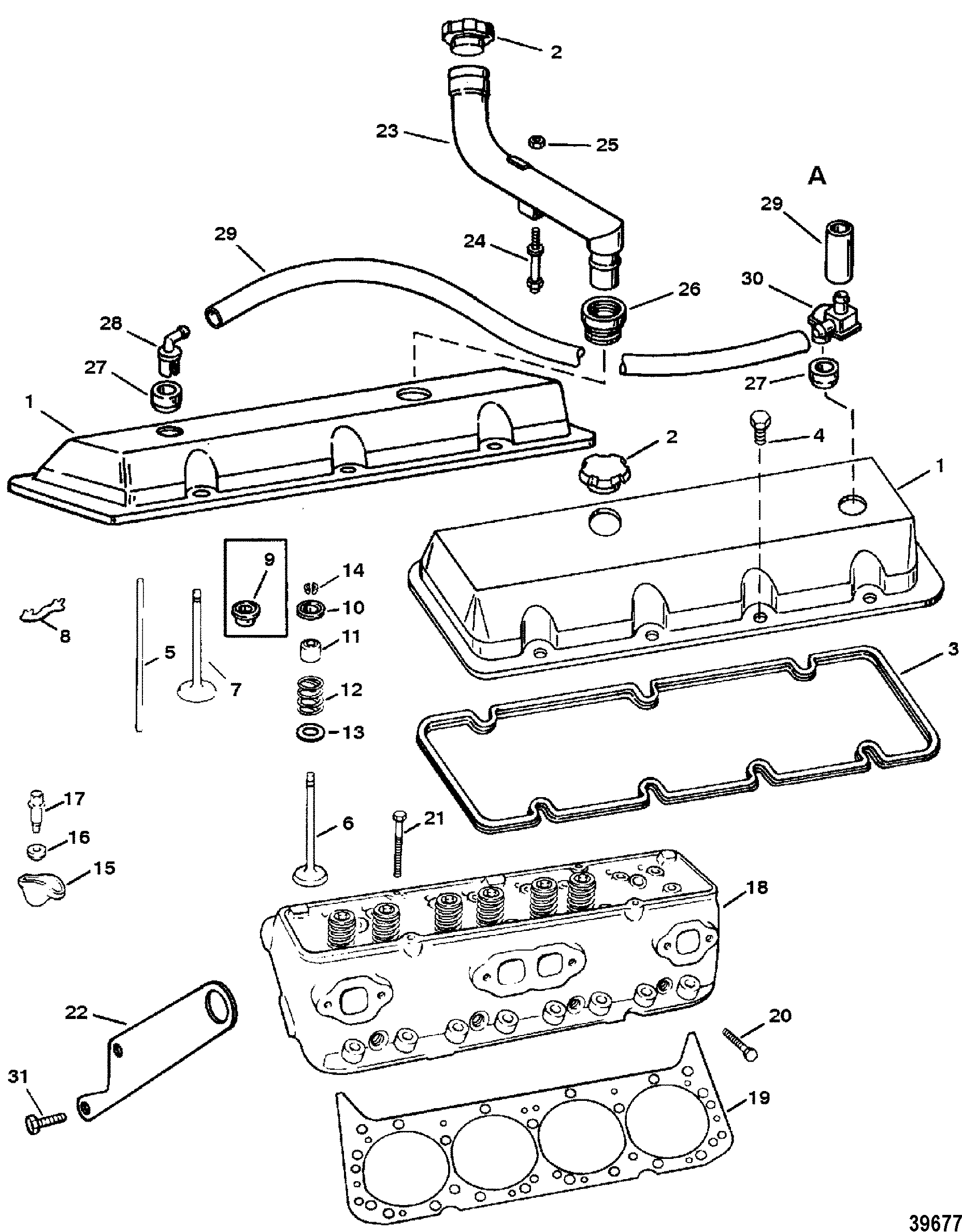

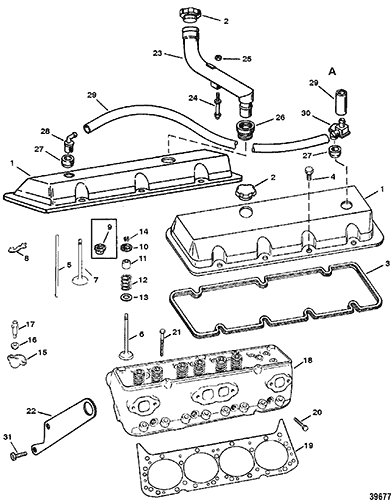

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 850462



ROCKER COVER 2 811587
2 36-811569



CAP, Oil Tank 2

3 27-811588



GASKET, Rocker Cover 2
3,4
4 10-811589



BOLT 14

5 811581



PUSH ROD 8
(INTAKE)
5 811582



PUSH ROD 8   This Part is No Longer Available (EXHAUST)
6 816962



VALVE, Exhaust 8
(STANDARD)
6 816963T



VALVE, Exhaust AR 816963 This Part is No Longer Available (.015 O.S.) 5
7 801877



VALVE, Intake 8
(STANDARD)
7 801878



VALVE, Intake AR   This Part is No Longer Available (.015 O.S.) 5
8 845707



GUIDE 8 811586
9 827644A1



CAP AND SHIELD 16 19325 ONE PIECE DESIGN 3,4
10 827644A1



CAP ASSEMBLY, Valve 16
TWO PIECE DESIGN
11 26-827645



SEAL, Valve 16
TWO PIECE DESIGN
12 24-801879T



SPRING, Valve 16 24-801879
13 15-845669



SHIM, Valve Spring (.015) 16 15-54531
14 28-54530



KEY 32

15 811591T



ARM, Rocker 16 811591
16 850472



BALL, Rocker Arm 16 811592
17 10-811593



BOLT, Rocker Arm 16

18 938-883493R1



CYLINDER HEAD 2 938-811529 (3/8-16 THREADS)
18 938-883493R1



CYLINDER HEAD ASSEMBLY 2 938-827495 (7/16-14 THREADS)
19 879150141



GASKET 2 27-811547 (454 MAGNUM) 3
19 879150139



GASKET, Cylinder Head 2 27-811546 (502 MAGNUM) 4
20 10-8M0000463



BOLT, (2.00 Inch) 8 10-49106
21 10-8M0000482



BOLT, (4.125 Inch) 24 10-49105
22 805442T1



BRACKET, Lifting Eye (FRONT) 1   This Part is No Longer Available
23 36-805621A1



TUBE, Oil Fill 1   This Part is No Longer Available
24 16-805706



STUD 1

25 11-826709109



NUT, (.250-28) 1 11-35045
26 26-805622



GROMMET 1

27 25-811553



GROMMET 2

28 97850T



ELBOW, 90 Degree, Breather 1 97850
29 32-805933



BREATHER HOSE 2   This Part is No Longer Available
30 805558A2



BAFFLE ASSEMBLY, Breather 1   This Part is No Longer Available
31 10-865982005



SCREW, (.375-16 x 1.00) 2 10-12244
31 10-47461



SCREW, (.437-14 x 1.00) 2

- 27-811572A94



GASKET SET, Overhaul 1
(454 MAGNUM)
- 27-805396A92



GASKET SET, Overhaul 1
(502 MAGNUM)
