454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Starter Motor(3-1-2" Diameter End Cap)

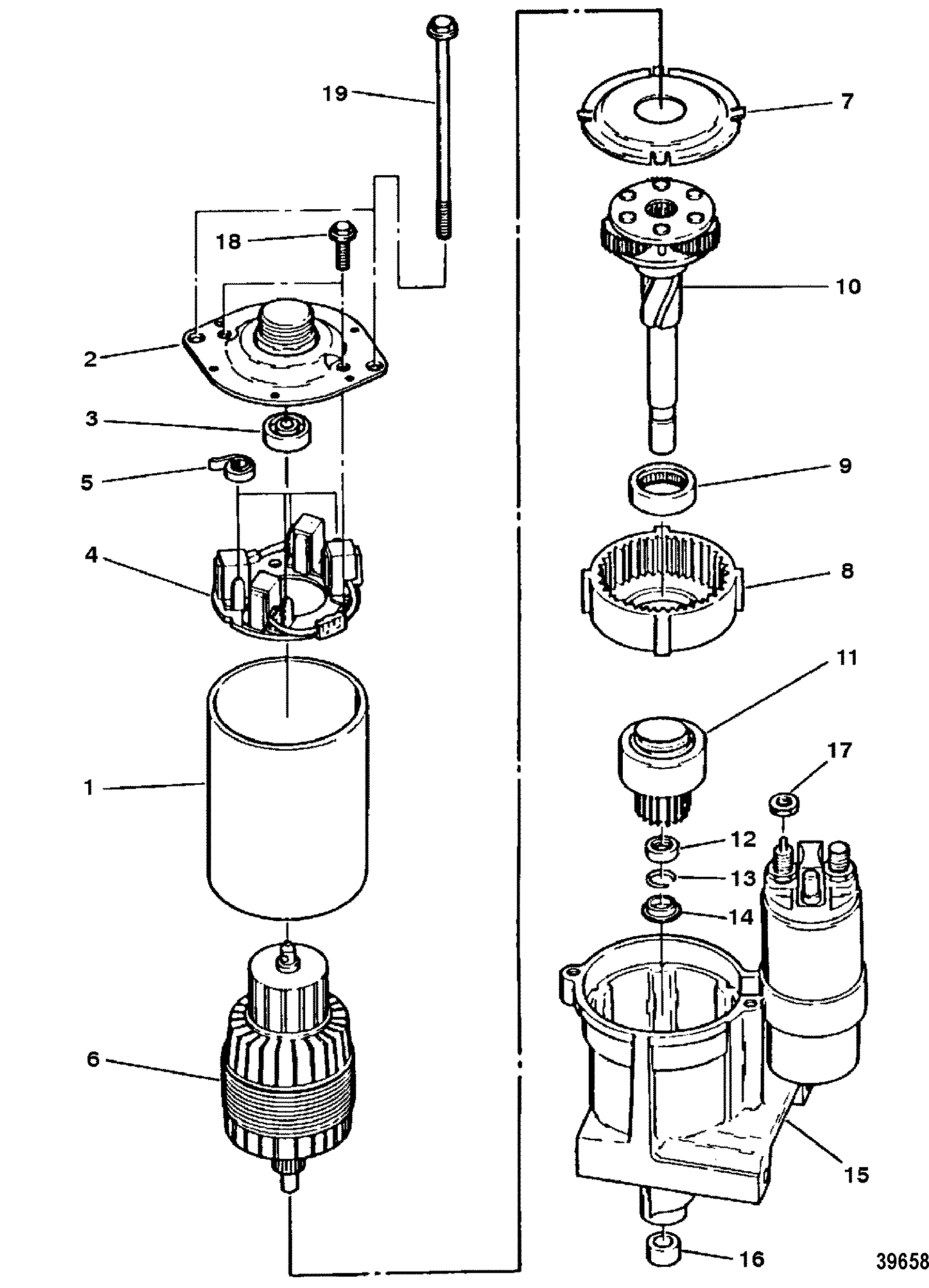

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor (454)
- Oil Filter And Adaptor (502) (F114528 and Below)
- Oil Filter And Adaptor (502) (F114529 and Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor And Alternator
- Starter Motor(3-1-2" Diameter End Cap)
- Starter Motor(PG260 - 2-7-8" Diameter End Cap)
- Thermostat Housing(Standard Cooling)
- Vapor Separator Tank And Fuel Rail, Sn and Below (See Note)
- Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)
- Vapor Separator Tank, Sn and Below (See Note)
- Vapor Separator Tank, Sn and Up (See Note)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- WIRING HARNESS(ENGINE)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | STARTER MOTOR ASSEMBLY | 1 | 50-822330A2 | |||||
| 2 | 811862 | FRAME | 1 | This Part is No Longer Available | |||||
| 3 | 30-814465 | BEARING, Ball | 1 | No longer made, limited availability | |||||
| 4 | 811863 | HOLDER, Brush | 1 | This Part is No Longer Available | |||||
| 5 | 24-814467 | SPRING | 4 | No longer made, limited availability | |||||
| 6 | 814469 | ARMATURE | 1 | This Part is No Longer Available | |||||
| 7 | 811882 | SHIELD | 1 | This Part is No Longer Available | |||||
| 8 | 811897 | GEAR AND BEARING | 1 | This Part is No Longer Available | |||||
| 9 | 814479 | BEARING, Roller | 1 | This Part is No Longer Available | |||||
| 10 | 50-863007A1 | SHAFT/GEAR ASSEMBLY | 1 | 814472 | |||||
| 11 | 811896 | DRIVE | 1 | ||||||
| 12 | 33291 | COLLAR | 1 | ||||||
| 13 | 53-33290 | RING, Retaining | 1 | ||||||
| 14 | 23-809457 | COLLAR | 1 | 814474 | This Part is No Longer Available | ||||
| 15 | 814475 | HOUSING, Drive | 1 | This Part is No Longer Available (See Note 1) | |||||
| 16 | 23-814476 | BUSHING | 1 | This Part is No Longer Available | |||||
| 17 | N.S.S. | Not Sold Separate, NUT | 1 | ||||||
| 18 | 10-814468 | SCREW | 2 | This Part is No Longer Available | |||||
| 19 | 10-814477 | THRU BOLT | 2 | This Part is No Longer Available |
