454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Shift Bracket

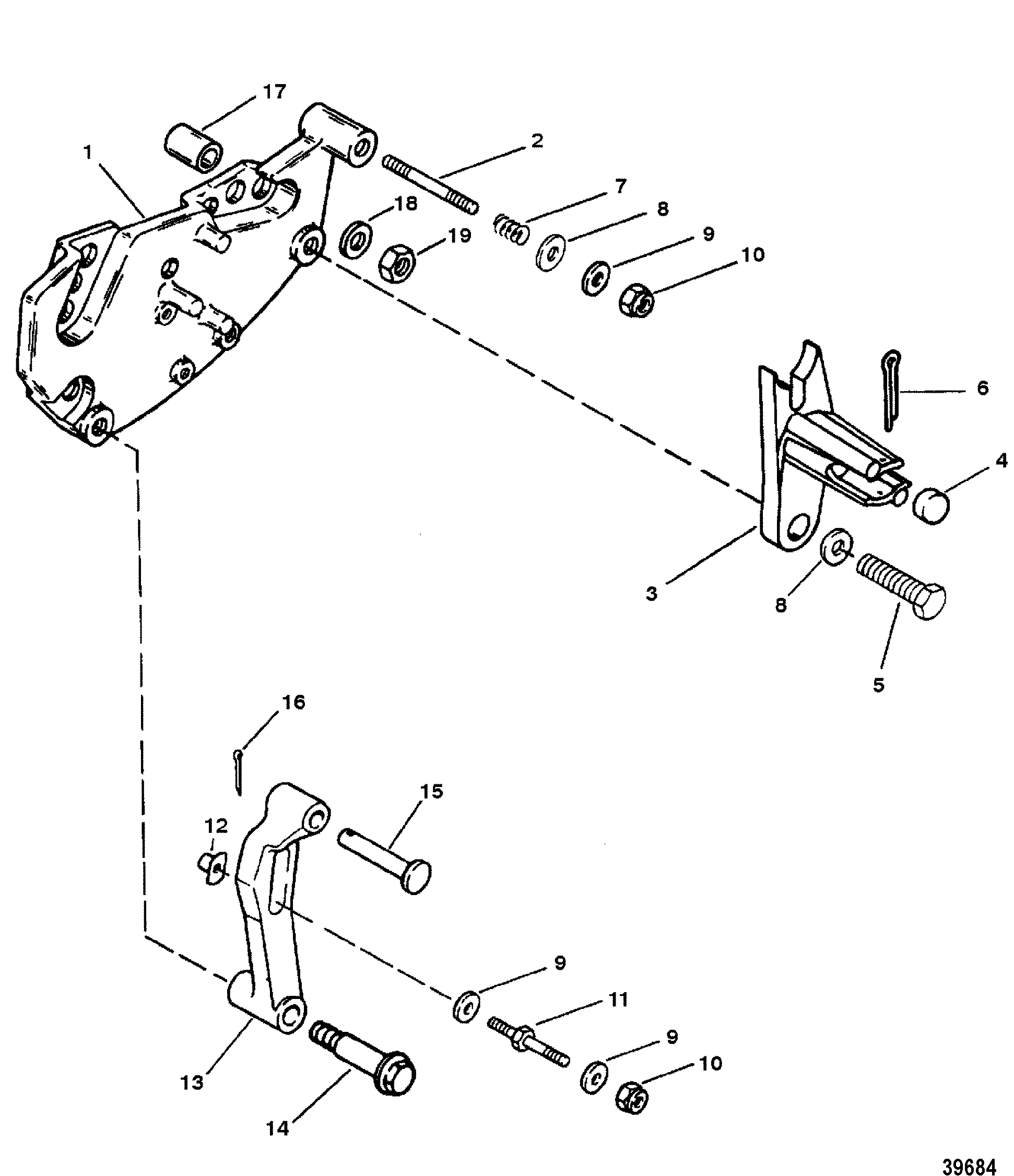

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor (454)
- Oil Filter And Adaptor (502) (F114528 and Below)
- Oil Filter And Adaptor (502) (F114529 and Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor And Alternator
- Starter Motor(3-1-2" Diameter End Cap)
- Starter Motor(PG260 - 2-7-8" Diameter End Cap)
- Thermostat Housing(Standard Cooling)
- Vapor Separator Tank And Fuel Rail, Sn and Below (See Note)
- Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)
- Vapor Separator Tank, Sn and Below (See Note)
- Vapor Separator Tank, Sn and Up (See Note)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- WIRING HARNESS(ENGINE)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY | 1 | 99237A10 | |||||
| 2 | 16-865154A02 | STUD, (.250-20/.250-28 x 2.120) | 1 | 16-987981 | |||||
| 3 | 865434A02 | RETAINER | 1 | 123811 | |||||
| 4 | 23-98828 | SPACER | 1 | ||||||
| 5 | 10-53167 | SCREW, (.312-18 x .880) | 1 | ||||||
| 6 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 2 | ||||||
| 9 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 4 | ||||||
| 10 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 11 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 12 | 11-63341 | TEE NUT | 1 | ||||||
| 13 | 863911A12 | LEVER | 1 | 138981 | |||||
| 14 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 15 | 17-68402 | PIN, (.250 x 1.13) | 1 | ||||||
| 16 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 17 | 23-92152T | SPACER, (.27 x .75 x .38) | 3 | 23-92152 | |||||
| 18 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | ||||||
| 19 | 11-64015 | NUT, (.250-20) | 3 |
