454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Intake Manifold And Intake Plenum

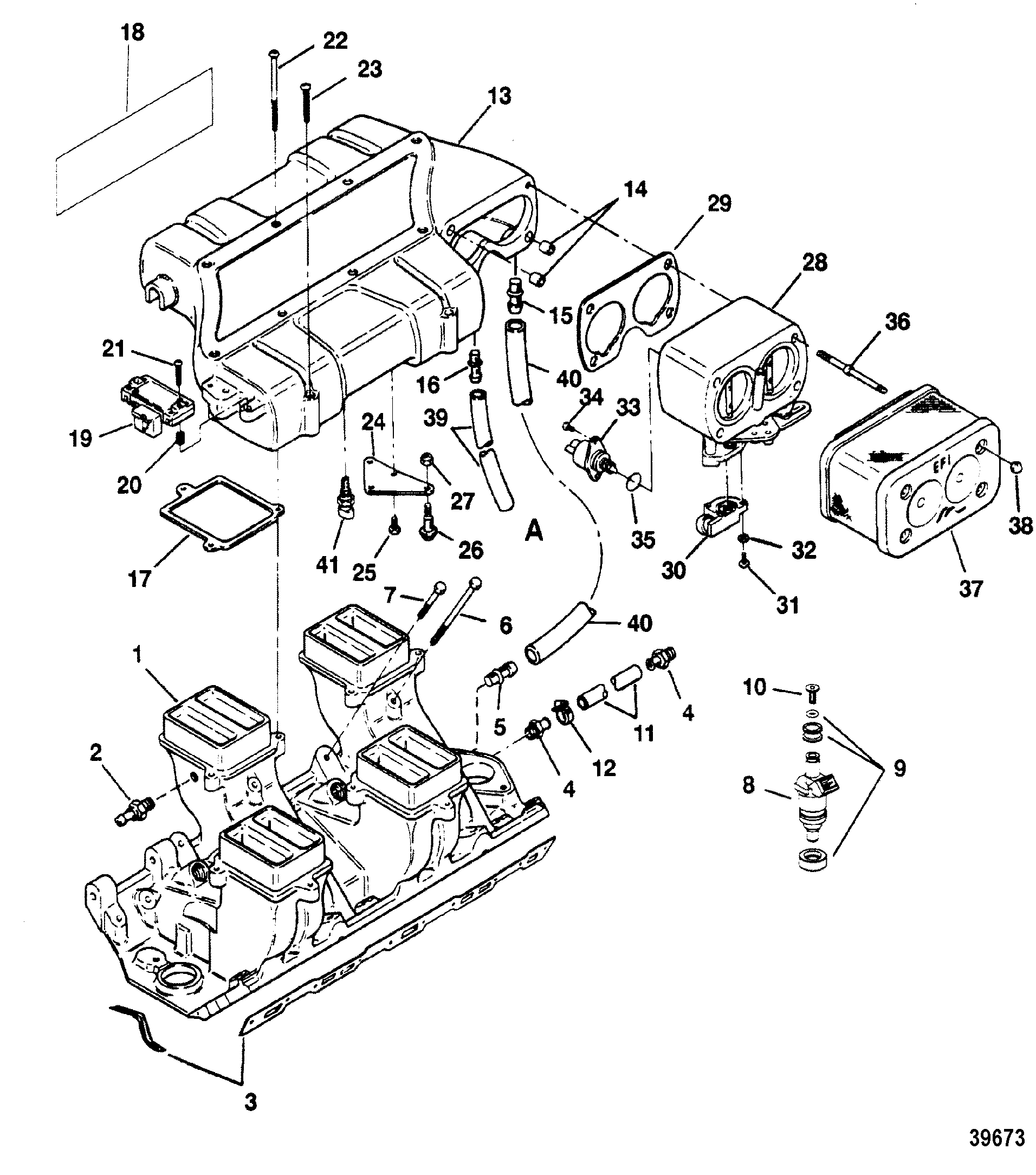

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805233A6



MANIFOLD ASSEMBLY, Intake 1 805233A2
2 22-805691



FITTING, (.250) Barb 1

3 27-805403A1



GASKET SET 1
3,4
4 22-806242



CONNECTOR 2

5 22-805519



FITTING, Barb (.250 Inch) 1

6 10-807640



SCREW (5-1/2 IN.) 4   This Part is No Longer Available
7 10-807641



SCREW (1-1/2 IN.) 12

8 805225A1



INJECTOR ASSEMBLY, Fuel 8

9 25-805511A1



SEALING KIT, Fuel Injector 8
3,4
10 35-17422



FILTER 8

11 32-8059871



HOSE, Water Pump To Intake Manifold 1

12 54-815504412



CLAMP, Worm Gear 2

13 805240A1



PLENUM ASSEMBLY, Intake 1   This Part is No Longer Available
14 23-52698



SLEEVE 2

15 22-805519



FITTING, Barb (.250 Inch) 1

16 22-805598



FITTING, (.1875) Barb 1

17 27-805522A1



GASKET SET 1
3,4
18 37-8238166



DECAL 1   This Part is No Longer Available (454 MAGNUM) 2
18 37-8238165



DECAL 1   This Part is No Longer Available (502 MAGNUM) 2
19 864856A1



SENSOR ASSEMBLY 1 805217A1
20 26-805412



SEAL 1
3,4
21 10-805393



SCREW 2   This Part is No Longer Available
22 10-805391



SCREW, (.312-18 x 4.500) 8

23 10-805390



SCREW, (.312-18 x 2.250) 4

24 805413T



BRACKET, Throttle Cable 1   This Part is No Longer Available
25 10-73286



SCREW, (.250-20 x .500) Stainless Steel 3

26 10-96430



SHOULDER SCREW 1

27 11-814101



NUT, (.250-20) Stainless Steel 1

28 805243A12



THROTTLE BODY ASSEMBLY 1 805243A4 This Part is No Longer Available
29 27-805396



GASKET, Throttle Body 1
3,4
30 805226A1



SENSOR ASSEMBLY, TPS 1

31 10-805400



SCREW, (#8-32 x .500) Stainless Steel 2

32 12-28001



WASHER, (.188 x .438 x .049) 2   This Part is No Longer Available
33 805224A1



MOTOR ASSEMBLY, IAC 1

34 10-805400



SCREW, (#8-32 x .500) Stainless Steel 2

35 25-808547



O-RING 1

36 16-805399



STUD 4

37 807656A2



FLAME ARRESTOR 1 805401A2
38 11-805402



NUT, Acorn 4

39 32-8M0063567



HOSE 1 32-80617333
40 32-7381567



TUBING, (42.00 Inches Bulk) 1

41 805223T



SENSOR 1

- 27-811572A94



GASKET SET, Overhaul 1
(454 MAGNUM)
- 27-805396A92



GASKET SET, Overhaul 1
(502 MAGNUM)
