454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Senders And Harness Bracket

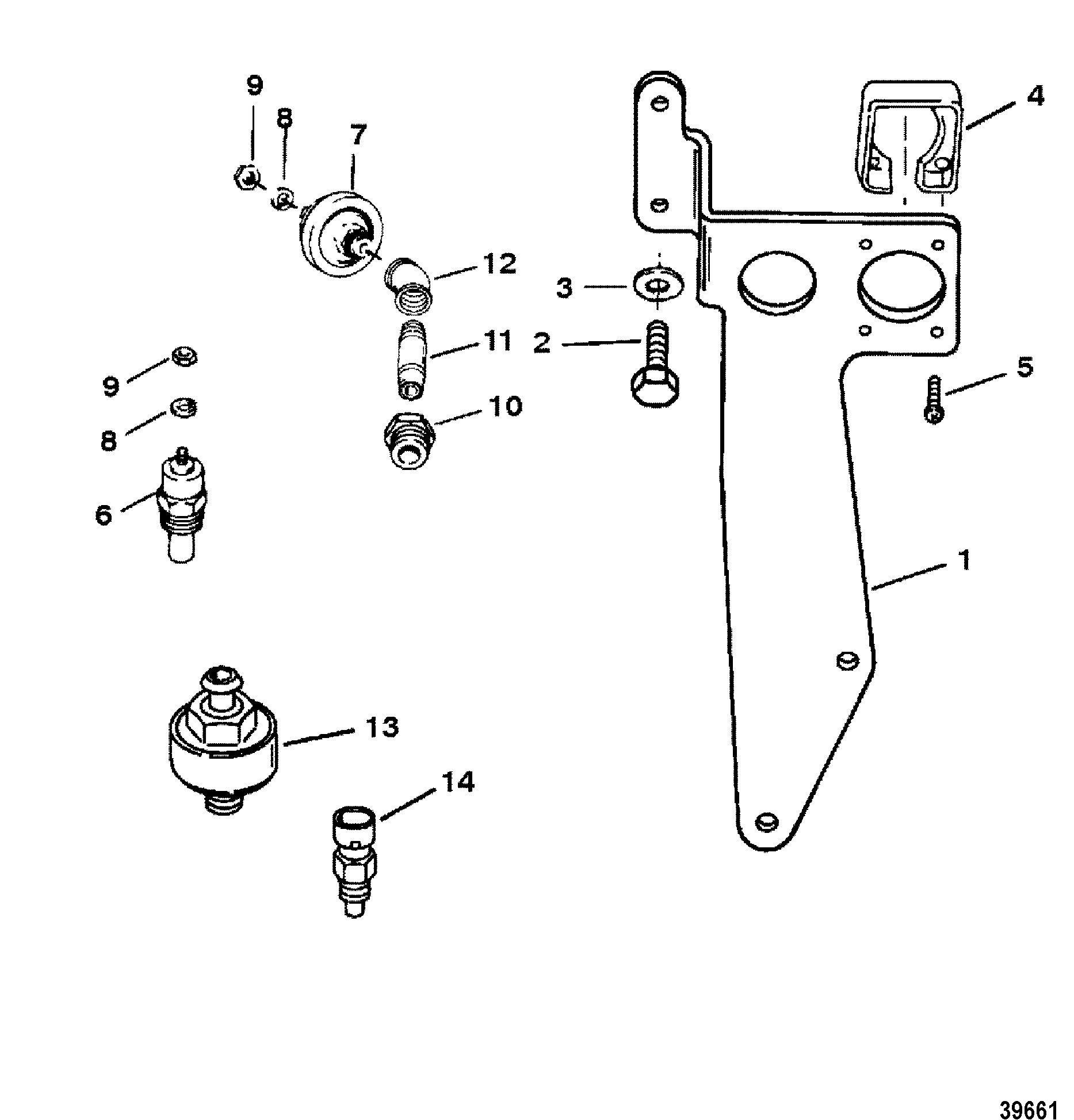

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor (454)
- Oil Filter And Adaptor (502) (F114528 and Below)
- Oil Filter And Adaptor (502) (F114529 and Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor And Alternator
- Starter Motor(3-1-2" Diameter End Cap)
- Starter Motor(PG260 - 2-7-8" Diameter End Cap)
- Thermostat Housing(Standard Cooling)
- Vapor Separator Tank And Fuel Rail, Sn and Below (See Note)
- Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)
- Vapor Separator Tank, Sn and Below (See Note)
- Vapor Separator Tank, Sn and Up (See Note)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- WIRING HARNESS(ENGINE)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805441T1 | BRACKET/LIFTING EYE (REAR) | 1 | ||||||
| 2 | 10-865982005 | SCREW, (.375-16 x 1.00) | 2 | 10-12244 | |||||
| 2 | 10-47461 | SCREW, (.437-14 x 1.00) | 2 | ||||||
| 3 | 12-22248 | WASHER, (.453 x .875 x .060) | 2 | ||||||
| 4 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 5 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 6 | 806490T | 676-9-42400 | SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | ||||
| 6 | 49734 | SENDER ASSEMBLY, Water Temperature | OPT | 49734A1 | (DUAL STATION) 6 | ||||
| 7 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 815425 | |||||
| 7 | 37293T | SENDER ASSEMBLY, Oil Pressure | OPT | 37293 | (DUAL STATION) 6 | ||||
| 8 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 9 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 10 | 22-48556 | BUSHING , Reducer (.250 To .125) | 1 | ||||||
| 11 | 22-885153 | NIPPLE | 1 | 22-42554 | |||||
| 12 | 22-46932 | ELBOW | 1 | This Part is No Longer Available | |||||
| 13 | 805544T | SENSOR ASSEMBLY | 1 | ||||||
| 14 | 805218T | 676-9-42402 | SENSOR | 1 |
