454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Oil Filter And Adaptor (454)

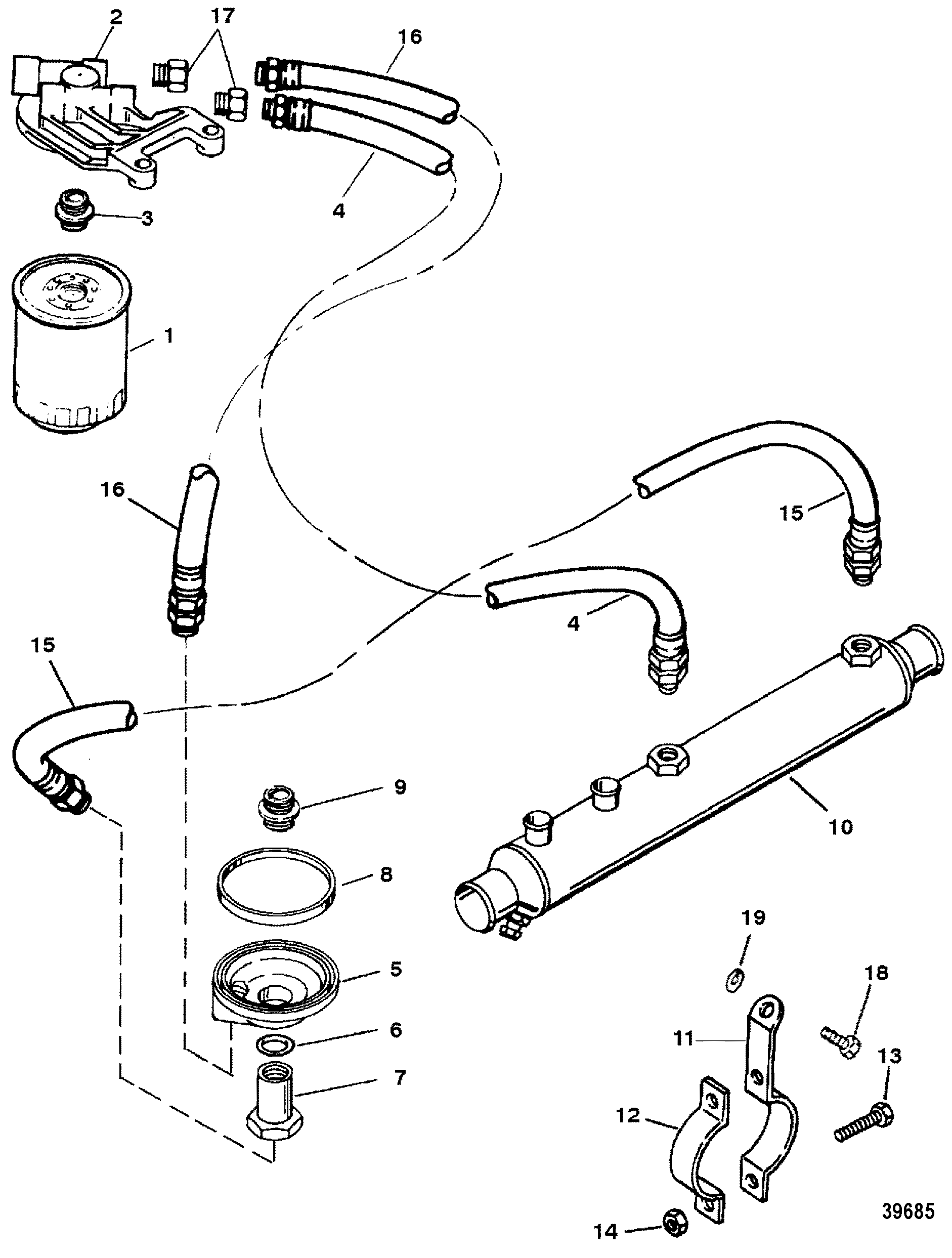

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor (454)
- Oil Filter And Adaptor (502) (F114528 and Below)
- Oil Filter And Adaptor (502) (F114529 and Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor And Alternator
- Starter Motor(3-1-2" Diameter End Cap)
- Starter Motor(PG260 - 2-7-8" Diameter End Cap)
- Thermostat Housing(Standard Cooling)
- Vapor Separator Tank And Fuel Rail, Sn and Below (See Note)
- Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)
- Vapor Separator Tank, Sn and Below (See Note)
- Vapor Separator Tank, Sn and Up (See Note)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- WIRING HARNESS(ENGINE)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-866340Q03 | FILTER, Oil | 1 | 14957 | |||||
| 2 | 817403A4 | BRACKET ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 3 | 22-814822 | FITTING | 1 | ||||||
| 4 | 32-8062631 | HOSE | 1 | This Part is No Longer Available | |||||
| 5 | 35-818400A1 | ADAPTOR | 1 | ||||||
| 6 | 26-42077 | SEAL | 1 | 3 | |||||
| 7 | 22-806121 | FITTING | 1 | ||||||
| 8 | 27-91892 | GASKET | 1 | 3 | |||||
| 9 | 22-805632 | CONNECTOR | 1 | ||||||
| 10 | 806423T | COOLER, Oil | 1 | ||||||
| 11 | 18728 | BRACKET (Long) | 2 | This Part is No Longer Available | |||||
| 12 | 56328A1 | BRACKET (Short) | 2 | ||||||
| 13 | 10-60300 | SCREW, (.250-28 x .750) | 4 | ||||||
| 14 | 11-30506 | NUT, (.250-28) | 4 | ||||||
| 15 | 32-806125 | HOSE | 1 | This Part is No Longer Available | |||||
| 16 | 32-8062621 | HOSE | 1 | ||||||
| 17 | 22-805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) | 2 | ||||||
| 18 | 10-68101 | SCREW, (.375-16 x 1.375) | 2 | ||||||
| 19 | 12-46132 | WASHER | 2 | ||||||
| - | 27-811572A94 | GASKET SET, Overhaul, 454 | 1 |
