454 EFI (Gen 5) GM V-8 1994-1996 - Serial 0F115700 Thru 0F802349 - Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)

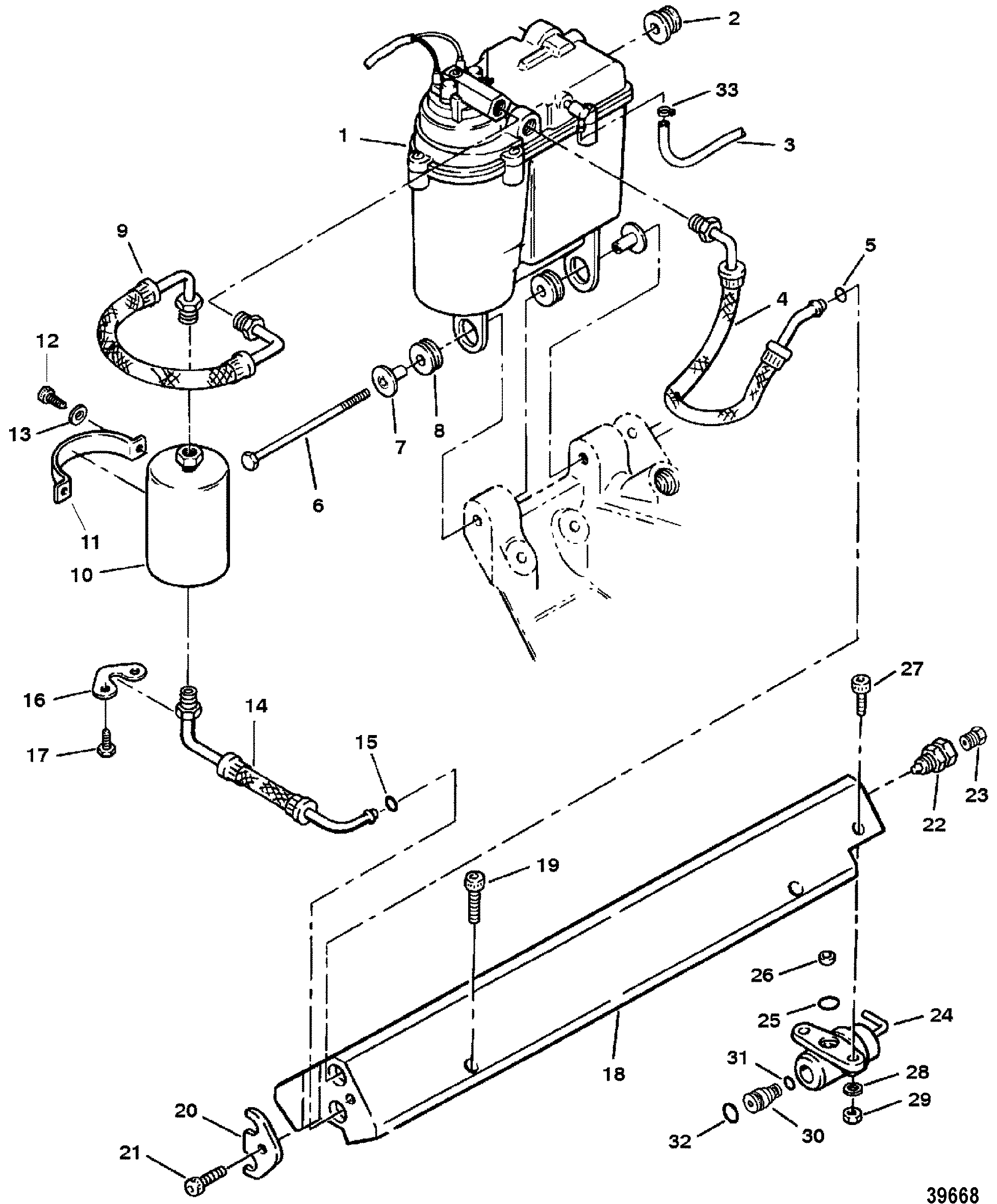

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Prestolite)
- Audio Warning System
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor (454)
- Oil Filter And Adaptor (502) (F114528 and Below)
- Oil Filter And Adaptor (502) (F114529 and Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor And Alternator
- Starter Motor(3-1-2" Diameter End Cap)
- Starter Motor(PG260 - 2-7-8" Diameter End Cap)
- Thermostat Housing(Standard Cooling)
- Vapor Separator Tank And Fuel Rail, Sn and Below (See Note)
- Vapor Separator Tank and Fuel Rail, Sn and Up (See Note)
- Vapor Separator Tank, Sn and Below (See Note)
- Vapor Separator Tank, Sn and Up (See Note)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- WIRING HARNESS(ENGINE)
| 24 454 EFI - Serial #0F130438 and Below 25 502 EFI - Serial #0F128962 and Below |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806787A3 | TANK ASSEMBLY, Vapor Separator | 1 | 805415A2 | |||||
| 2 | 25-880331 | GROMMET | 1 | This Part is No Longer Available | |||||
| 3 | 32-80568932 | HOSE | 1 | This Part is No Longer Available | |||||
| 4 | 32-805435A1 | LINE ASSEMBLY, Fuel | 1 | ||||||
| 5 | 25-805970 | O-RING | 1 | 3,4 | |||||
| 6 | 10-805392 | SCREW | 1 | This Part is No Longer Available | |||||
| 7 | 23-19064 | BUSHING | 2 | ||||||
| 8 | 25-88033 | GROMMET | 2 | ||||||
| 9 | 32-806740A1 | LINE ASSEMBLY, Fuel | 1 | This Part is No Longer Available | |||||
| 10 | NSS | NOT SOLD SEPARATE, FUEL FILTER | 1 | This Part is not sold separately (Order Fuel Line Kit - 32-806740A1) 1 | |||||
| 11 | 32-806740A1 | CLAMP | 1 | 54-805430 | |||||
| 12 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 2 | ||||||
| 13 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 14 | 32-805434A1 | LINE ASSEMBLY, Fuel | 1 | This Part is No Longer Available | |||||
| 15 | 25-805970 | O-RING | 1 | 3,4 | |||||
| 16 | 54-805566 | CLIP | 1 | This Part is No Longer Available | |||||
| 17 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 2 | ||||||
| 18 | 805405T | FUEL RAIL | 1 | ||||||
| 19 | 10-805698 | SCREW | 4 | ||||||
| 20 | 54-805437 | CLIP | 1 | This Part is No Longer Available | |||||
| 21 | 10-805557 | SCREW | 2 | This Part is No Longer Available | |||||
| 22 | 22-805408 | VALVE, Rail Pressure Service | 1 | ||||||
| 23 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 24 | 805227A1 | REGULATOR ASSEMBLY, Fuel Pressure | 1 | ||||||
| 25 | 25-805531 | O-RING, (.476 x .075) | 1 | 3,4 | |||||
| 26 | 35-805406 | FILTER | 1 | ||||||
| 27 | 10-852368 | SCREW, (#10-24 x .750) | 2 | 10-56682 | |||||
| 28 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 | ||||||
| 29 | 11-805562 | NUT, (#10-24) | 2 | ||||||
| 30 | 22-805514A1 | FITTING ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 31 | 25-805553 | O-RING | 1 | 3,4 | |||||
| 32 | 25-805407 | O-RING, (.346 x .075) | 1 | 3,4 | |||||
| 33 | 54-815504206 | CLAMP, Worm Gear | 2 | ||||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454 MAGNUM) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502 MAGNUM) | |||||
